Mustard Oil Filling Machine: The Selection Guide

Brief introduction of mustard oil

Mustard oil can mean either the pressed oil used for cooking, or a pungent essential oil also known as volatile oil of mustard. The essential oil results from grinding mustard seed, mixing the grounds with water, and extracting the resulting volatile oil by distillation.

Mustard oil, which is produced from the seeds of the mustard plant, is a common ingredient in Indian cuisine. Known for its strong flavor, pungent aroma, and high smoke point, it’s often used for sautéing and stir-frying vegetables in many parts of the world, including India, Bangladesh, and Pakistan. Although pure mustard oil is banned for use as a vegetable oil in the United States, Canada, and Europe, it’s often applied topically and used as a massage oil, skin serum, and hair treatment.

Mustard Oil
Mustard Oil

Mustard oil filling machine selection

Whether mustard oil is used as a cooking oil or as a topical treatment, it needs to be packaged and brought to market. Most mustard oil on the market today is packaged using glass or plastic bottles. Here we explain the choice of mustard oil bottling machine.

First of all, as an edible oil or an essential oil, mustard oil is a relatively viscous liquid and VKPAK recommends the use of a piston filling machine to fill mustard oil.

Automatic Piston Filling Machine

Automatic Piston Filling Machine

Introduction Piston fillers measure and dispense free flowing products - such as thin and/or moderately dense liquids - onto a container. Each machine is equipped with one or more volumetric pistons. Each fill/release cycle consists of an intake stroke, where the product is withdrawn from the container or...

We have the expertise in manufacturing and exporting wide array of automatic mustard oil filling machines. Mustard oil filling machine offeredfind suitability for meeting the filling requirements of viscous and non-viscous liquids in industry sectors like chemical, daily, chemical industry and others. Further, the superior integration support for filling and capping in single machine also makes these optimum in performance. In addition to this, we offer customized solutions as required by the clients.

This automatic mustard oil filling machine, adopts plunger pump filling, Equiped with PLC and touch screen, easy to operate. Main pneumatic parts and the electronics are famous brand from Japan or German. The body and the parts contacting with product is stainless steel, clean and sanitary comply with GMP standard. The filling volume and speed can be adjusted easily, and filling nozzles could be changed according to actual needs. This filling line can be used to fill various liquid products of medicines, foods, drinks, chemicals, detergents, pesticide, etc. e.x. shampoo, detergent, lotion, juice, wine, vinegar, etc.

Mustard oil filling machine feature:

1. Linear design, when change bottle sizes no need change parts, easily for changing;
2. PLC conntrol full-automatic working;
3. Adopts high precision and high speed ration filling valve make sure the oil level is exact without loss, ensuring high quality filling perfectly;
4. Filling volume adjustable, no bottle no filling;
5. Flexible choice, suitable to 50ml liter to 5 liter PET or glass bottle with various shape, press caps or screw caps capping;
6. 316L stainless steel contact parts, fine polish, food grade, easy clean.

Secondly, we would recommend using a pump filling machine to fill mustard oil (the most cost effective is a piston filling machine)

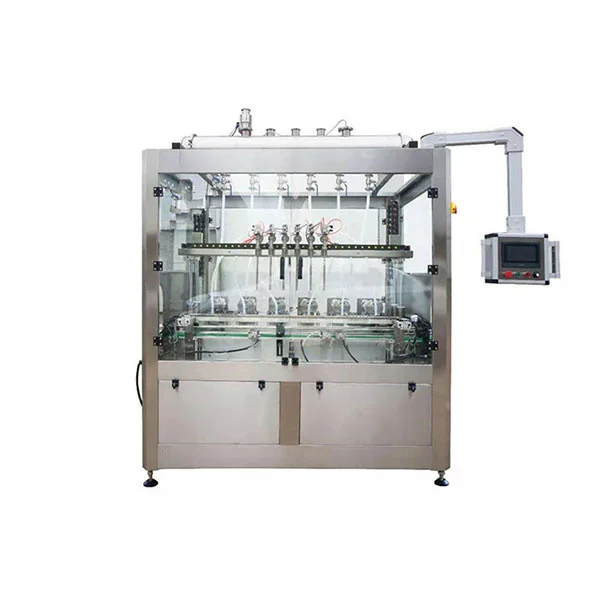

Automatic Rotary Lobe Pump Filling Machine

Automatic Rotary Lobe Pump Filling Machine

Introduction This rotary lobe pump filling machine adopts high-precision stainless steel rotor pump to measure the liquid capacity. Each pump is driven by a servo motor, with a wide filling range and high filling accuracy. The equipment has a simple structure, easy operation and easy maintenance. The filling...
Lobe pump filling machines are best suited for filling viscous products, but they can be used to fill thin products as well. These fillers can handle a wide range of container sizes, fill volumes, and product types; but they are most ideal for filling pastes, creams, lotions, and gels, in large volumes and at greater speeds than otherwise achieved with a piston filler. Suitable for viscous food standard liquids filling can meet cip system requirements for food packing, it is ideal for ketchup, jam sauce ect.

Like gear pumps, lobe pumps are a type of positive displacement pump that uses a rotary action to move product. Unlike gear pumps, a lobe pump will normally consist of about three lobes (versus the many teeth on the gear pump). Product is pushed throught the lobes in a manner similar to passing through the teeth of a gear pump. However, the extra space can be a benefit for products with small to medium particulates that may cause problems when passing through gears.

No filling range limited by traditional pistons

Our linear lobe pump mustard oil filling machinery is manufactured with a 304 stainless steel frame, it comes standard with plc control and touch screen hmi ensuring reliable, repeatable control with minimal operator intervention, precision bored, heavy- walled metering cylinders dispense product at accuracy up to +/- 0.2%, high-precision, servo motor driven screw movement faster and more precise than pneumatic system, food grade stainless steel and plastics for sanitary operations or use, anodized aluminum components, plus many more features available with motorized conveyor and indexing package for integrated container handling and positioning, no container/no fill feature detects missing or mispositioned containers to prevent waste and product spillage. Unique variable, separate speed control and actuator of a dual-stage fill provides precise “no spill” control for top-off applications or filling difficult products.

Empty bottles are staged on the main drive conveyor prior to entering the pumps mustard oil filler. Bottles enter the filler and are counted by optical sensors to ensure the correct numbers of bottles are in position. Once in place, bottles are locked in position by the pneumatically operated bottle clamping mechanism. This ensures bottles are located correctly under each filling head to minimize under or over-fills. The filling process begins as a series of stainless steel valves descend into the bottles for fast, accurate and consistent filling. After target volume is achieved, the out-gate cylinder withdraws itself from its position and allows the filled bottles to go further on the conveyor for the sealing operations.

Finally for large capacity (more than 5L) mustard oil filling, it is recommended to use weighing type filling machine.

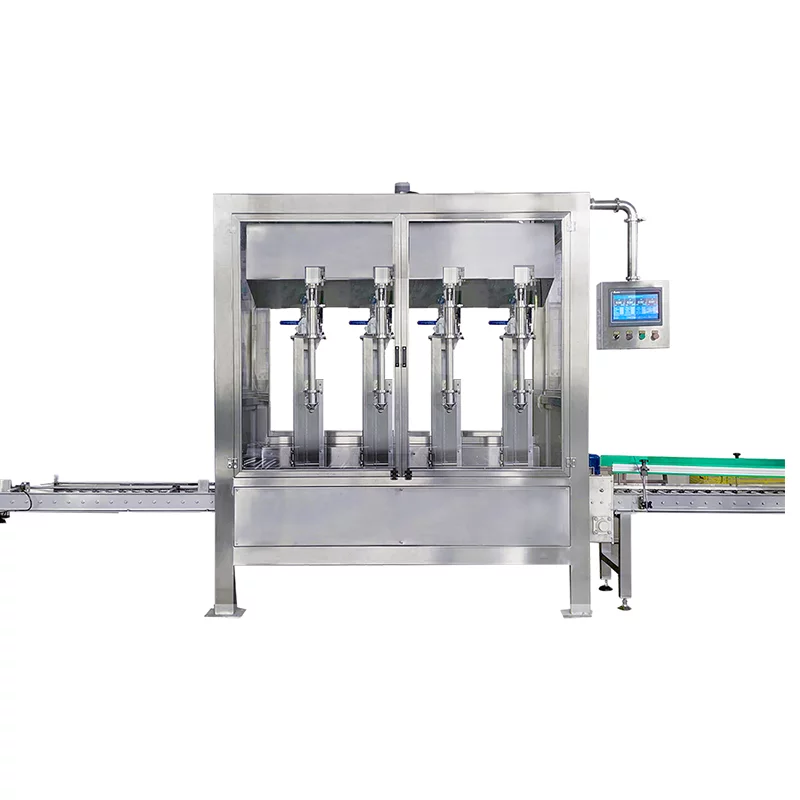

Automatic Net Weight Filling Machine

Automatic Net Weight Filling Machine

Introduction Net weight filling machines use a weigh scale platform to monitor the weight of product as it is filling into a bottle or container. Net weight fillers are well suited for large container filling applications. This type machine is used for 5kg -30 kg liquid filling. Gravity...

Customize your mustard oil filling line

Following the completion of liquid filling, you can use capping machines to fit containers with customized caps, labelers to apply high-quality labels with custom images or text for unique branding, and conveyors to transport containers from one end of the production line to the other with consistent efficiency at custom speed settings. A complete system of mustard oil filling machines and other equipment can give you what you need for reliable functionality in your production line.

Mustard oil bottle capping machine, usually choose the following equipment, the specific machine selection needs to be based on the shape of the cap, size, capping method to decide.

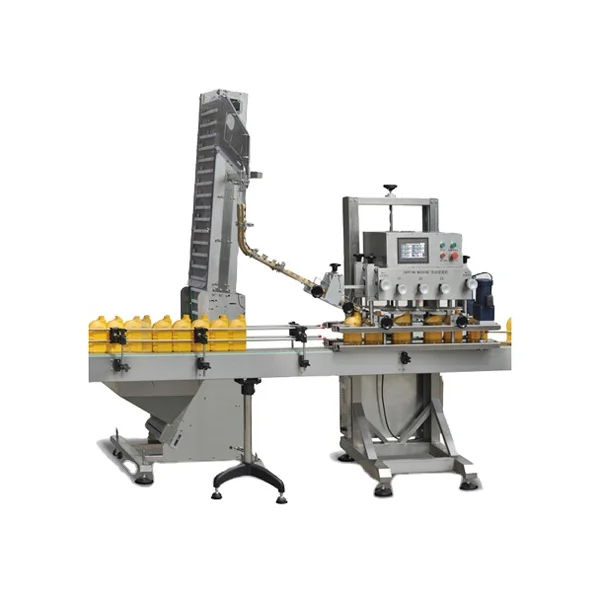

Automatic Spindle Screw Capping Machine Sale

Automatic Spindle Screw Capping Machine

Introduction The VK-SC automatic spindle screw capping machine is extremely flexible, is capable of capping accurately and rapidly any cap, such as trigger cap, metal cap, flip cap and so on. 1. Variable speed AC motors. 2. Spindle wheels adjustment knobs, with lock nut hand wheel. 3. Meter...

Automatic 4 Wheels Bottle Capping Machine

Introduction Automatic 4 Wheels Capping Machine is designed to handle Trigger Spray Cap, Pump Cap, Push-pull Cap, Snap Hinge Cap and Sport Push-pull Cap. Round bottles, square bottles and flat bottles Applicable Caps: Screw Caps and twist of metal caps The main structure is made of durable 304...

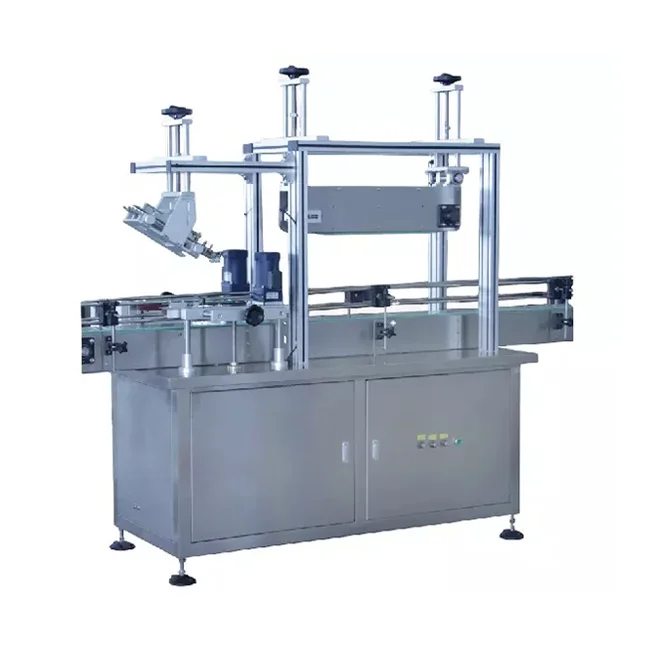

Automatic Press Snap Capping Machine

Automatic Press Snap Capping Machine

Introduction This Automatic Press Snap Capping Machine is used for closing press type caps, it is made up by 3 parts: cap feeding system, cap loading system and cap closing system. It is characterized by its simple structure and high qualification rate. Can be used alone or inline. Linear...

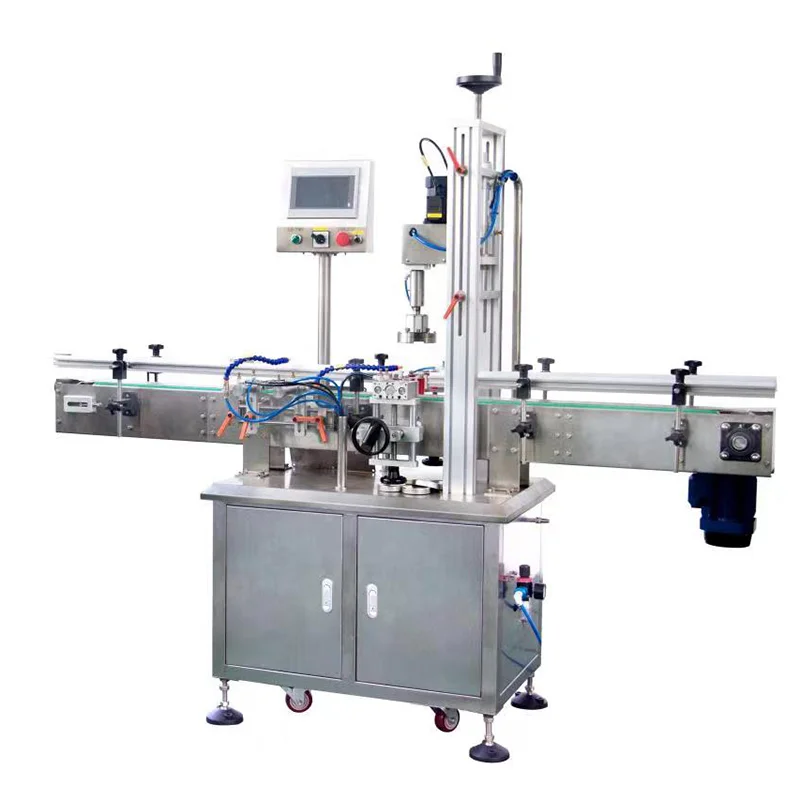

Automatic Single Head Screw Capping Machine

Automatic Single Head Screw Capping Machine

Introduction VKPAK's single head chuck capping machines use the latest technology to automatically place and accurately torque most cap types onto most bottle types. The chuck capping machines can place and torque flat caps, oval caps, flip top caps, pull spouts, safety caps, child proof caps, sport caps, and...

Mustard oil bottle labeling machine, usually choose the following equipment, the specific machine selection needs to be based on the shape of the container, the size of the container, label size to decide.

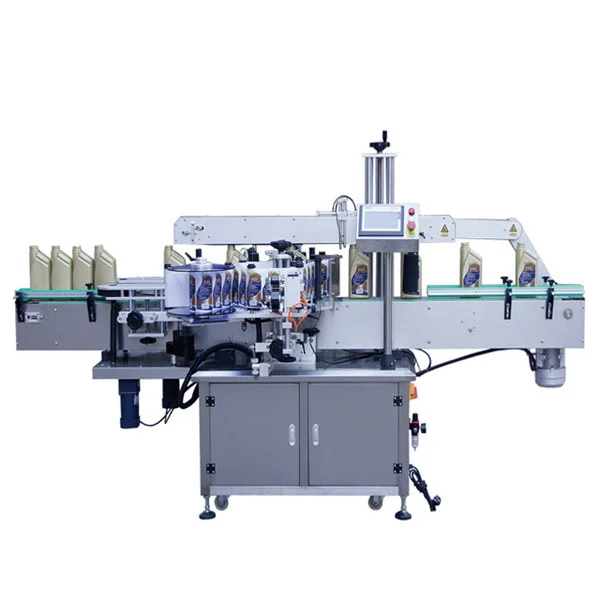

Double Sided Labeling Machine

Automatic Double Sided Labeling Machine

Introduction Double Sides Labeling Machine is widely suitable for food stuff, cosmetic, pharmaceutical, pesticide and other industries. It is single and double side labeling for flat, square and round bottle. Automatic controlled by computer (PLC) easy operating. It can change specifications easily. It adopts servo motor, achieved closed...

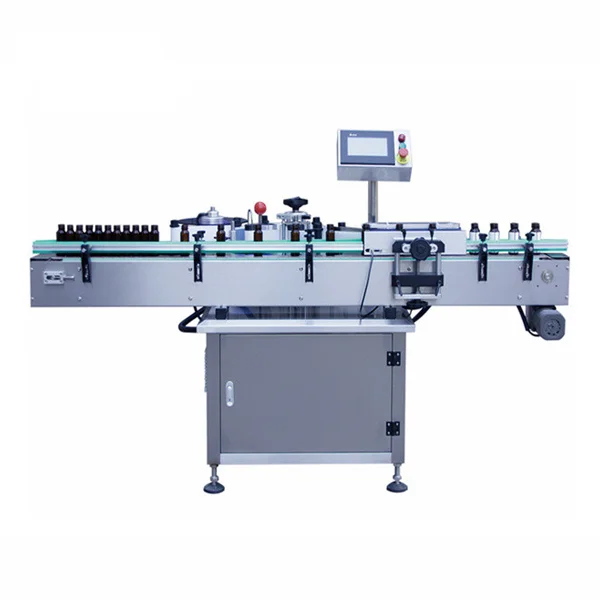

Automatic Vertical Round Bottle Labeling Machine

Automatic Vertical Round Bottle Labeling Machine

Introduction The vertical round bottle sticker labeler is designed to achieve a rationalized production goal. The labeling process is automated, the operation is simple, the production speed is fast, the labeling position is uniform, beautiful, and tidy; it is suitable for the round container labeling in the pharmaceutical,...

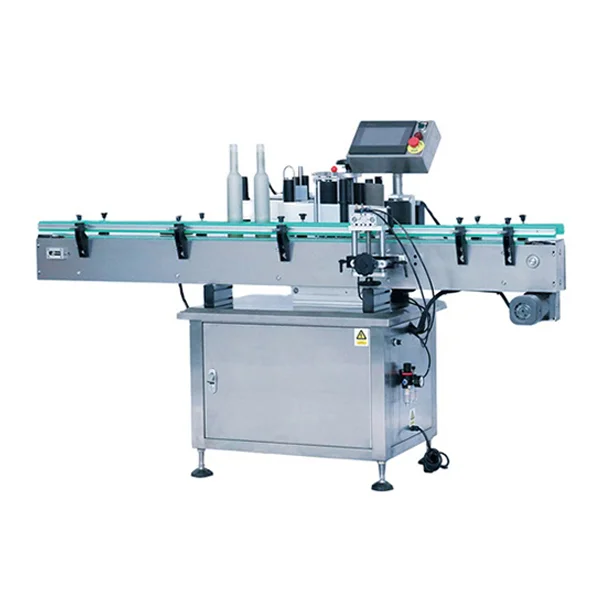

Automatic Orientation Wrap Around Labeling Machine

Automatic Three Roller Positioning Labeling Machine

Introduction It is special design for the round bottle orientation labeling with orientation device, the labeling accuracy can be guaranteed, especially suitable for the wrap around label. Oriented wrap around labeling machine is controlled by servo motor ( label exact is 0.5mm), It is suitable for any kinds...
To start with the design and implementation of a complete system of mustard oil filling machines and other machinery from us, contact VKPAK for immediate assistance.
