Carton Labeling Machine

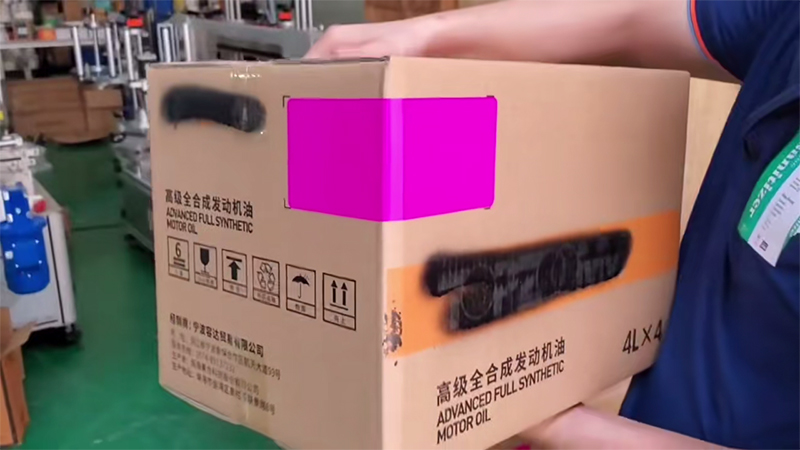

This video shows the process of corner labeling of cartons. There are two kinds of corner labeling in the video: one is carton double corner labeling (in the ordinary conveyor belt to complete) the labeling machine is mostly used alone; the other is a single corner labeling machine (in the roller conveyor belt to complete) the labeller is mostly used with the packaging production line, can also be customized double corner labeling!

0:05 Automatic Carton Double Corner Labeling Machine
0:33 Carton Single Corner Labeling Machine With Roller Conveyor

The machine belongs to the non-standard labeling machine, need to be based on carton samples to customize, if you need a similar machine please contact us.

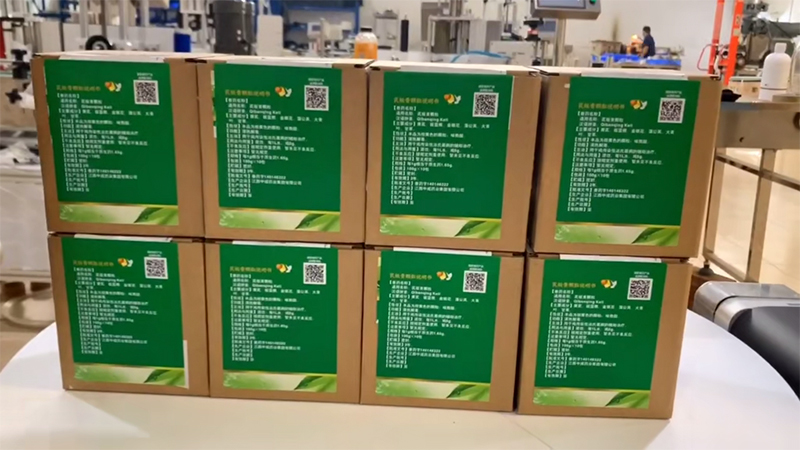

The video shows the carton double side labeling process. The video has two kinds of front and back labeling: one is a large carton double-sided labeling, the labeling machine does not need the upper pressure mechanism, relying on the weight of the product itself can be stable operation labeling, mostly used for the carton labeling has been packaged products; the other is a small carton double sided labeling machine, the labeller needs the upper pressure mechanism to ensure that the product is stable in the process of labeling, this labeling machine is similar to the VK-BCL labeling machine, mostly used for small empty cartons labeling.

Whether you need the upper pressure mechanism depends on whether the carton can be stable in the labeling process, welcome to send samples to test the machine.

0:05 Bread Carton Double Side Sticker Labeling Machine
0:34 Small Carton Double-Sided Labeling Machine

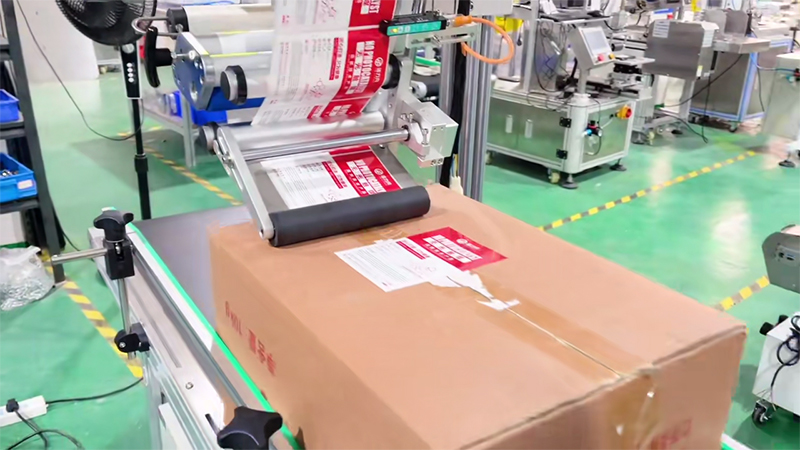

This video shows the carton flat labeling process. There are two types of carton plane labeling machine in the video, one is applicable to the carton labeling has been packaged products, the machine is manufactured on the basis of VK-FTL, the labeling head position will be adjusted to match the height of the carton, the labeling machine is also suitable for cartons, boxes, and other flat products labeling; the other is used for folded carton labeling machine, because folded carton is usually wider, the labeling machine is configured with a wider conveyor belt.

In order to improve the labeling efficiency, the folding carton labeller is usually equipped with automatic feeding device.

Folding carton automatic feeding device: one is suitable for regular and harder cartons, usually called the paging mechanism (also need to be customized according to the carton size); the other is suitable for irregular or low hardness of the carton, can not be easily separated by friction, the use of pneumatic cylinders to absorb the carton one by one on the conveyor belt way. (The above two automatic feeding devices are shown in the video)

0:05 Automatic Carton / Case Top Flat Labeling Machine
0:25 Folding Carton Paging Labeling Machine
0:44 Folding Carton Labeling Machine With Automatic Feeding
1:41 Folding Carton Paging Labeling Machine For Multiple Carton Sizes

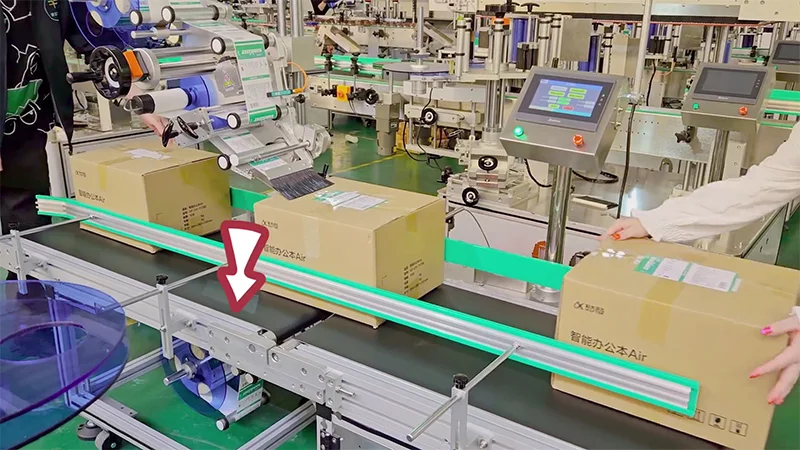

The video shows the carton top and bottom labeling process. There are two kinds of top and bottom labeling in the video: one is the carton labeling of packaged products, the carton labeller is manufactured on the basis of VK-TBL, which mainly increases the width of the conveyor belt to adapt to the width of the carton; the other is the folded carton labeling machine, the labeling machine in addition to a wider conveyor belt can be equipped with an optional automatic feeding device; equipped with an automatic feeding device is more efficient and more cost-effective.

Carton labeling machine conveyor belt and feeding device need to be customized according to the size of the carton.

0:05 Carton / Case Top And Bottom Labeling Machine
0:23 Folding Carton Upper And Lower Labeling Machine With Auto Feeding
0:57 Large Folding Carton Top and Bottom Labeller With Automatic Feeding

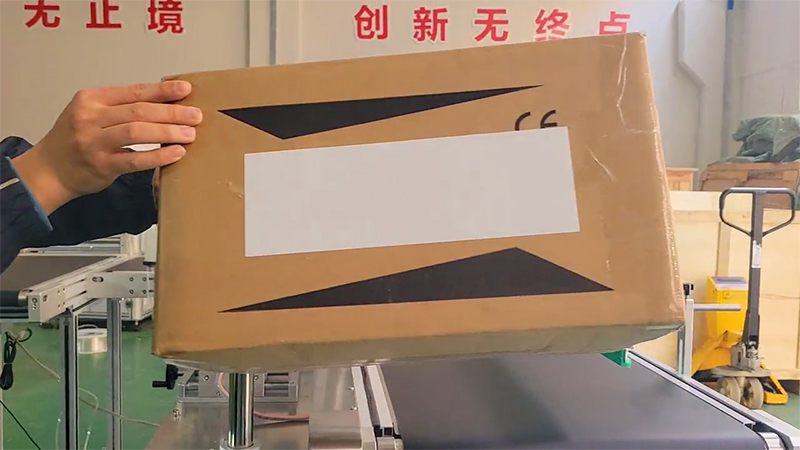

This video shows the process of single side labeling of cartons. There are two kinds of side labeling in the video: one is ordinary carton labeling, the video shows the two kinds of single-sided carton labeling that VKPAK used to provide, one is the carton labeling with corner conveyor in a small field and the other is the linear carton labeling; the other is the carton labeller used in the assembly line, the labeling head has a wide range of applications, and it can be used in all kinds of packaging production lines, and usually the labeling machine does not come with a conveyor belt, it can put on customer exist conveyor. It is an flexible labeling machine, customer can use it labeling boxes, cartons and other big container.

0:05 Automatic Carton Single Side Labeling Machine With Corner Conveyor
0:27 Automatic Carton Single Side Labeller Machine
0:45 Assembly Line Carton Single-Sided Labeling Machine

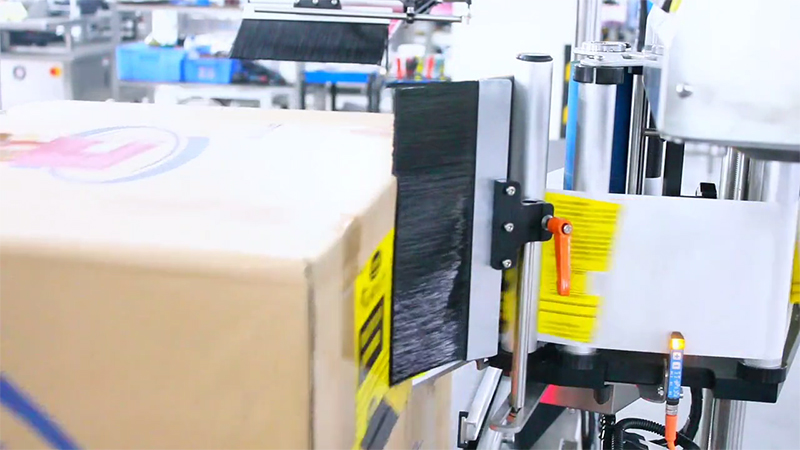

This video shows the carton multi-side labeling process. There are two types of carton labellers in the video, one for labeling the top and one side of the carton/case; the other for labeling the top and both sides of the carton/box. Both machines are customized for a specific size of the carton labeling machine, which the main difference is whether the configuration of the upper pressure mechanism, for some cartons or boxes and other light products, the need to configure the upper pressure mechanism to stabilize the product to improve the accuracy; for some of the products have been packaged in the carton, because of its own weight can ensure that the labeling process can be stable product operation without the need to configure the upper pressure mechanism.

0:05 Carton/Case Top And Single Side Labeller Machine
0:36 Small Carton/Box Top And Double Side Labeling Machine

Legible, accurate labels for your packaged products is critical for effective inventory and supply chain management. VKPAK carries a wide selection of labeling, marking and case coding machines to ensure your products are easy to manage and track through production and shipping.

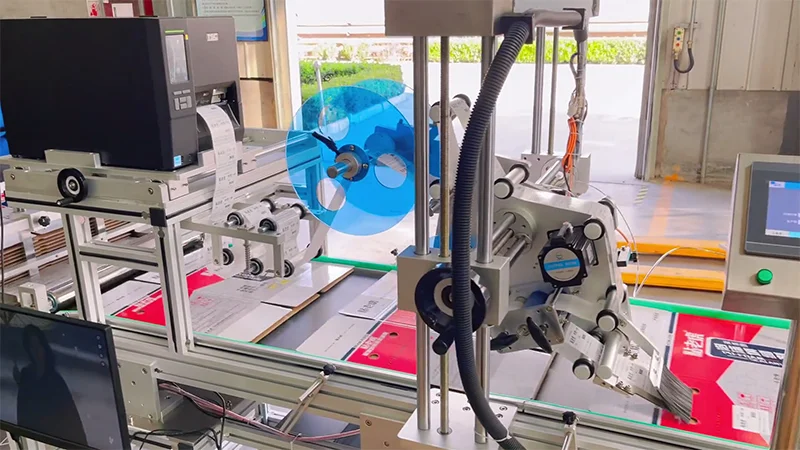

Print-and-apply labeling systems combine a label printer and a label dispenser in one single machine. Our label printer applicators will automatically print and apply labels to your products, cartons or pallets – in one single process.

The labeling system allows manufacturers to reliably print and apply labels in various applications including the side, top, front, rear and corner-wrap of product, case and cartons.

Quickly and efficiently apply labels to cartons and small boxes with our carton labeling machines.

Improved Packaging Efficiency

Label and coding machines speed up the labeling process increasing productivity. Ink jet printing and print and apply label machines allow for on the fly printing. Printing labels with incremental information without the need to manually adjust the content. Labeling machines are faster and with better accuracy compared to labeling operations completed by hand. A labeling machines or case coding machine can be integrated into any existing production line.

Case Labellers Reduce Waste

Labeling applicators and print and apply label machines reduce label waste. Label waste is easily dispossessed with the machine re-rolling the waste backing.

For customized carton labeling machines, it is important to understand the following basic information:

#1.  Whether the carton is packed with products (your packaging line is first labeling or packaging products)

#2.  The location where the label needs to be applied, and how many labels need to be applied

#3.  Whether you need to print the label information instantly

#4.  Labeling machine alone or integrated into the packaging line to use

#5.  Other customized items (conveyor belt, automatic feeding, etc.)

We not only offer quality equipment, we listen, we adapt to your needs. We offer advice, we look for the best approach to your project. We recommend the most cost effective equipment without sacrificing quality. It is our responsibility to ensure that all our customers receive every attention to detail to make the installation successful, cost-efficient and profitable.
