Our monodose strip tube filling and sealing machine is widely used for food, pharmaceutical, cosmetics and chemical 5 in 1 plastic tube filling and sealing packaging etc. We offer strip tube filling and sealing solutions with different levels of automation, from manual to semi-automatic to fully automatic.
VK-UTS-003 customizes the molds according to different tubes, manually puts the strip tubes into the molds and then pushes them into the sealing and tail cutting stations;
VK-TFS-005 only needs labor to add strip tubes into stip slot, it can automatically finish the tube filling, ultrasonic sealing, tail trimming, and tube exiting etc, it's very stable and simple to use;
VK-TFS-005U automatically completes a series of actions such as tube loading, filling, ultrasonic sealing, tail cutting and finished product delivery.
Advantages
1. Adopting ultrasonic generator sealing tubes, no warm up time, no distortion, it has incomparable perfect sealing effect.
2. Adopting ceramic / peristaltic pump filling, with high filling accuracy, no pollution, durable and stable, easy to clean & maintain;
3. Mainly made of top-quality stainless steel, all parts contacting material are SUS304 or SUS316 based on product features.
| Model | VK-TFS-005U | VK-TFS-005 | VK-UTS-003 |
| Auto/Semi-auto | Fully Auto | Semi Auto | |
| Funtion | Filling and Sealing | Sealing | |
| Safety Protection | Safety device equiped | Overload protection | |
| Overload protection | |||
| Station | Servo Motor Driven Chain Type | 6 Stations (Rotary Table) | 1 Stations |
| Tube type | Strip monodose vials tubes | ||
| Tube material | PP / PE plastic composite pipe / Aluminum plastic tube,etc | ||
| Automatic Identification | No tube, no filling & no sealing | No tube no sealing | |
| Fault Alram | Failure warning feature | / | |
| Frequency | 20 kHz | ||
| Power | 2.6 KW | 2.2 KW | 2 KW |
| Power supply | AC220V/110V | ||
| Filling system | 5 heads Valveless Ceramic Plunger Pump (liquid) | / | |
| 5 heads Rotary Valve Ceramic Plunger Pump (paste) | / | ||
| Filling Range | 0.3-10ml Valveless Ceramic Plunger Pump | / | |
| 1-10ml Rotary Valve Ceramic Plunger Pump | / | ||
| Filling Error | ±0.02g | ±0.05g | / |
| Capacity | 15-20 strips/min | 10-13 strips/min | 8-12 strips/min |
| Tube diameter | 1-7 strip/length 50-140mm | ||
| Tube height | 50-150mm | ||
| Working pressure | 0.6MPa | ||
| Air comsumption | 0.4m3/min | ||
| Dimension (mm) | 1300*1300*1950 | 1300*1000*1550 | 560*540*880 |
| N.W/G.W (Kg) | 514 | 330 | 105 |
Strip Monodose Tube Filling Sealing Machine Videos

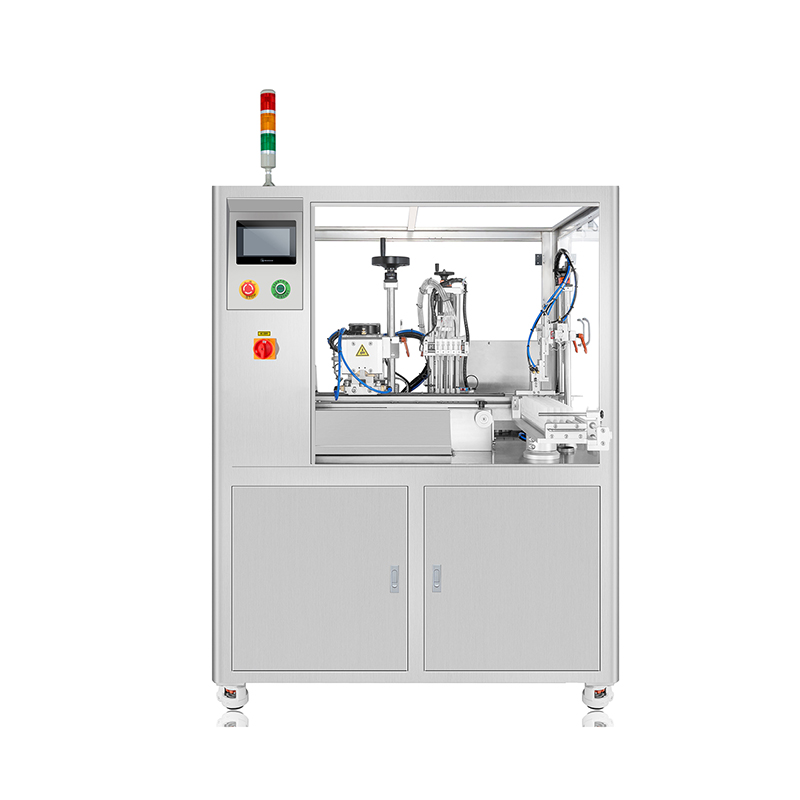

VK-TFS-005U Automatic Strip Monodose Tube Filling and Sealing Machine

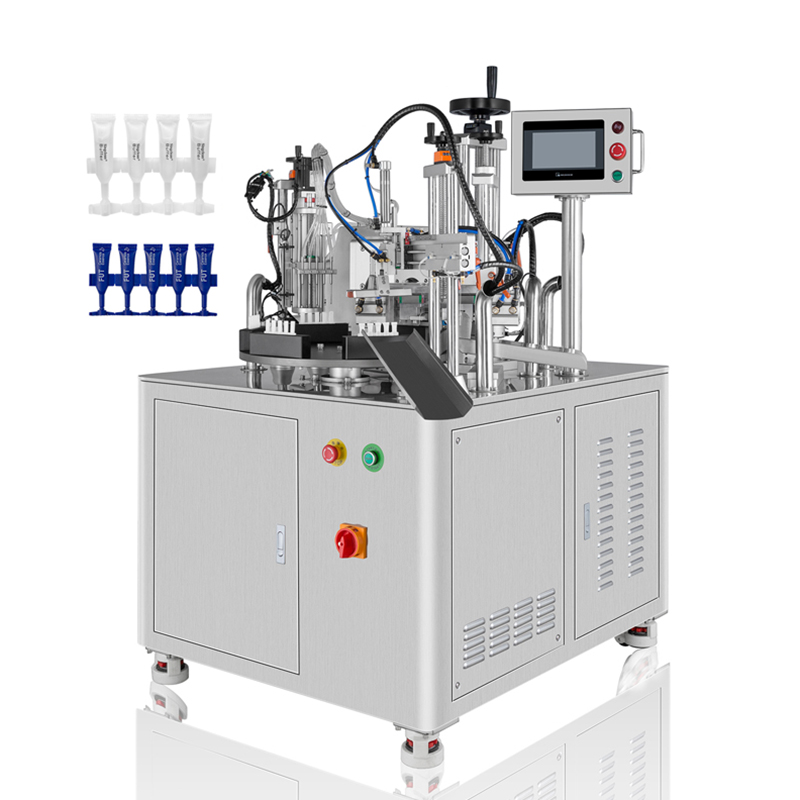

Automatic Monodose Strip Tube Filler Sealer Machine (Rotary Type)

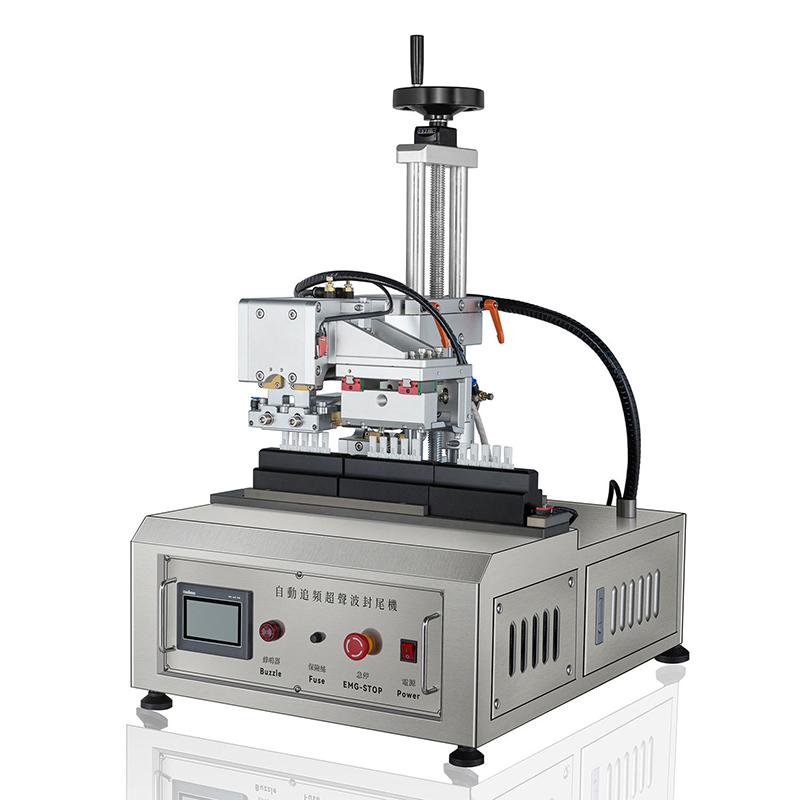

VK-UTS-003 Semi Automatic Ultrasonic Tube Sealer For Strip Monodose
