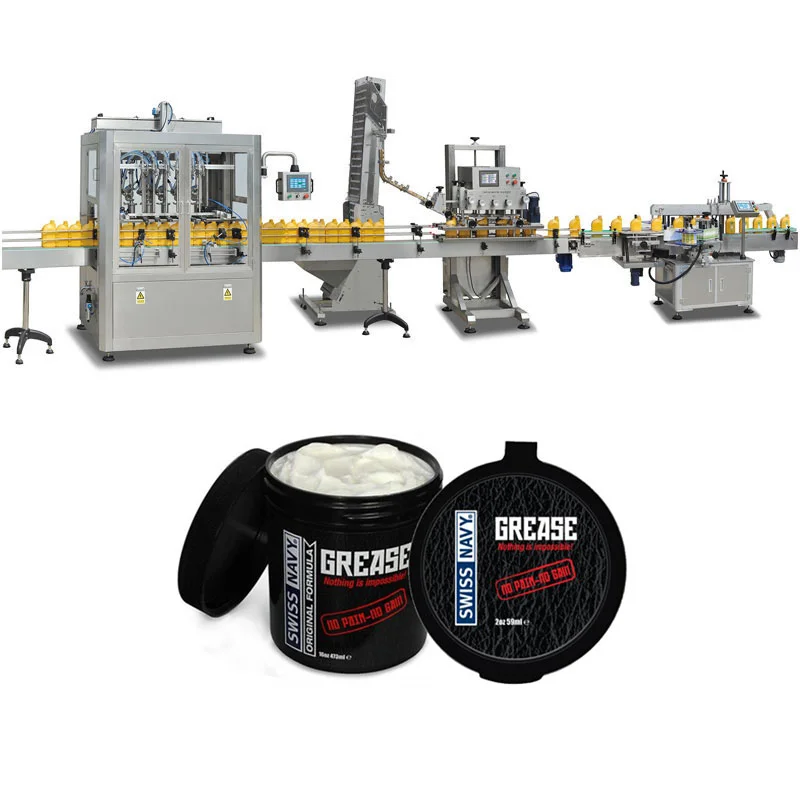

Grease Filling Machine


Grease is a solid or semisolid lubricant formed as a dispersion of thickening agents in a liquid lubricant. Grease generally consists of a soap emulsified with mineral or vegetable oil. Greases are applied to mechanisms that can be lubricated only infrequently and where a lubricating oil would not stay in position.

When you are filling grease there are several types of filling machines you may choose.

VKPAK designs and builds filling machines and packaging equipment for grease.

Our grease filling machines are designed to meet the changing needs of the grease industry. We manufacture the ideal machinery to handle your grease filling needs and meet your production goals.

View Video
Material IntroductionCommon Grease Container TypeFilling Machine SelectionCapping Machine SelectionLabeling Machine SelectionFilling NotesAuxiliary EquipmentWorking VideoContact UsYou May Like
Grease is a solid or semisolid lubricant formed as a dispersion of thickening agents in a liquid lubricant. Grease generally consists of a soap emulsified with mineral or vegetable oil.

A common feature of greases is that they possess a high initial viscosity, which upon the application of shear, drops to give the effect of an oil-lubricated bearing of approximately the same viscosity as the base oil used in the grease. This change in viscosity is called shear thinning. Grease is sometimes used to describe lubricating materials that are simply soft solids or high viscosity liquids, but these materials do not exhibit the shear-thinning properties characteristic of the classical grease. For example, petroleum jellies such as vaseline are not generally classified as greases.

Greases are applied to mechanisms that can be lubricated only infrequently and where a lubricating oil would not stay in position. They also act as sealants to prevent ingress of water and incompressible materials. Grease-lubricated bearings have greater frictional characteristics because of their high viscosity.[From Wiki]

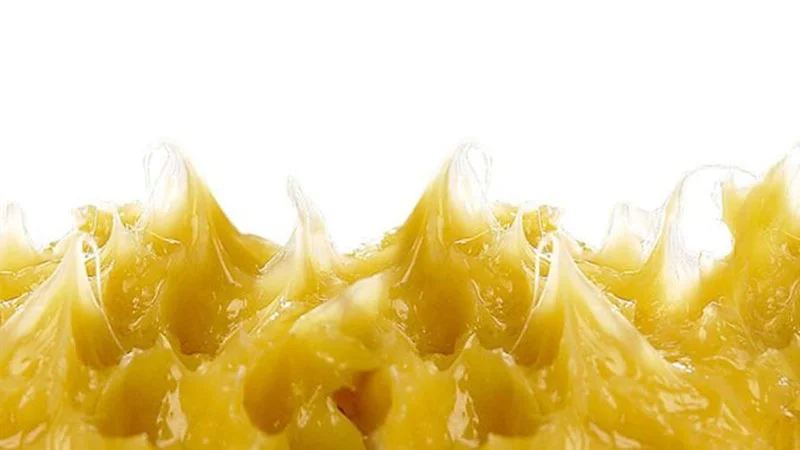

Grease Lubricant
Grease Lubricant

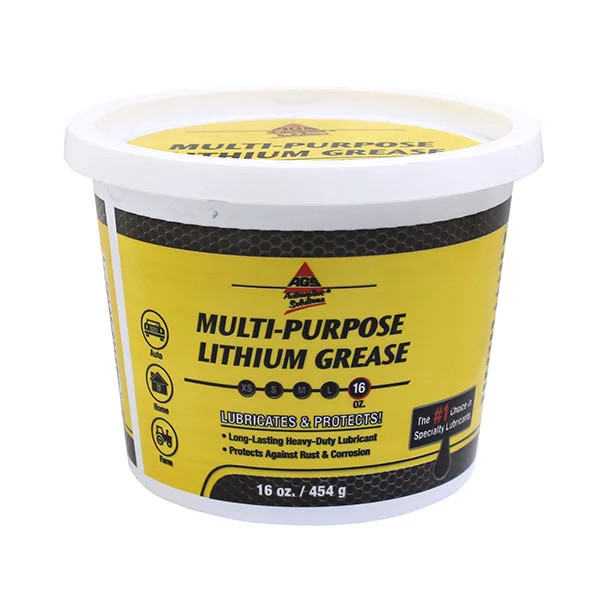

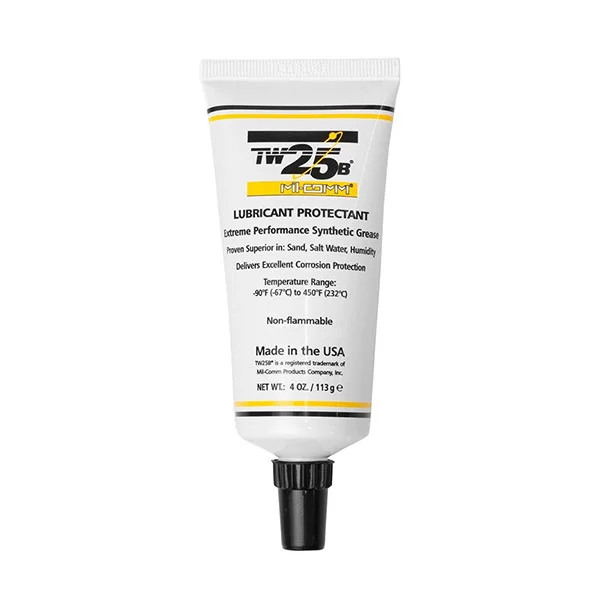

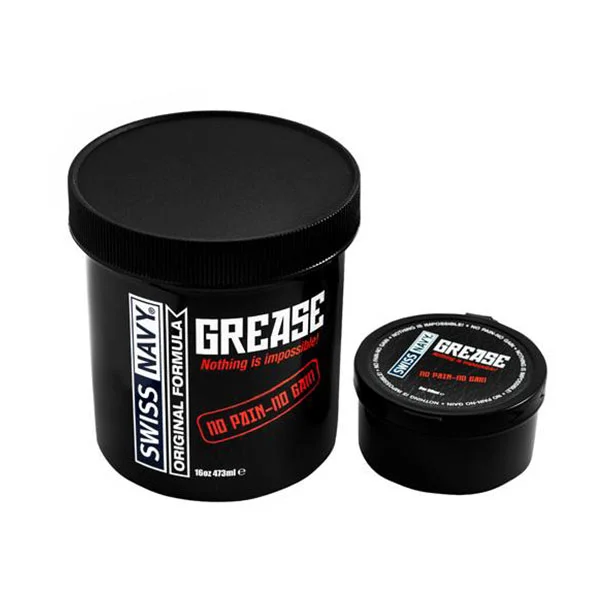

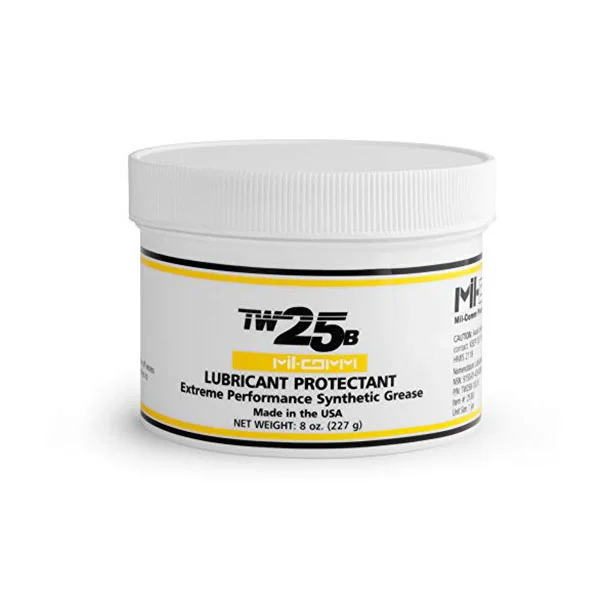

Most of the industrial greases are packed in plastic jars, while there are also greases packed in tubes on the market

Due to the viscous nature of grease, gravity and overflow filling are not suitable for filling grease. For this highly viscous material, VKPAK recommends the use of a rotary lobe pump filling machine, which is particularly suitable for materials with high viscosity. The filling accuracy is high and the speed is fast.
Automatic Linear Rotor Pump Filling Machine

Automatic Rotary Lobe Pump Filling Machine

Introduction This rotary lobe pump filling machine adopts high-precision stainless steel rotor pump to measure the liquid capacity. Each pump is driven by a servo motor, with a wide filling range and high filling accuracy. The equipment has a simple structure, easy operation and easy maintenance. The filling...
In addition, for tube packing grease, VKPAK recommends using tube filling and sealing machine, of course, for such viscous materials as grease, you need to use a pump to fill.
Tube Filling And Sealing Machine Sale

Tube Filling And Sealing Machine

Introduction Automatic Tube Filling And Sealing Machine is widely used in toothpaste, cosmetics, medicine and food industries. The equipment has a high degree of automation, automatic loading, automatic color matching, automatic sealing, batch numbering, and automatic discharging. Using the internal heating method, the Swiss "LEISTER" hot air heater...
A rotary lobe pump filling machine is the best option to pack grease (without heating and with the possibility to connect to a CIP system), but at a higher cost. So we have also prepared the alternative of using a piston pump filling machine, while at the same time needing to heat the grease to increase the flow for smoother filling.
Automatic Piston Filling Machine

Automatic Piston Filling Machine

Introduction Piston fillers measure and dispense free flowing products - such as thin and/or moderately dense liquids - onto a container. Each machine is equipped with one or more volumetric pistons. Each fill/release cycle consists of an intake stroke, where the product is withdrawn from the container or...
Grease jar capping machine, usually choose the following equipment, the specific machine selection needs to be based on the shape of the cap, size, capping method to decide.
Automatic Spindle Screw Capping Machine Sale

Automatic Spindle Screw Capping Machine

Introduction The VK-LC automatic spindle screw capping machine is extremely flexible, is capable of capping accurately and rapidly any cap, such as trigger cap, metal cap, flip cap and so on. 1. Variable speed AC motors. 2. Spindle wheels adjustment knobs, with lock nut hand wheel. 3. Meter...
Automatic Press Snap Capping Machine

Automatic Press Snap Capping Machine

Introduction This Automatic Press Snap Capping Machine is used for closing press type caps, it is made up by 3 parts: cap feeding system, cap loading system and cap closing system. It is characterized by its simple structure and high qualification rate. Can be used alone or inline. Linear...
Automatic Single Head Screw Capping Machine

Automatic Single Head Screw Capping Machine

Introduction VKPAK's single head chuck capping machines use the latest technology to automatically place and accurately torque most cap types onto most bottle types. The chuck capping machines can place and torque flat caps, oval caps, flip top caps, pull spouts, safety caps, child proof caps, sport caps, and...
Grease jar labeling machine, usually choose the following equipment, the specific machine selection needs to be based on the shape of the container, the size of the container, label size to decide.
Double Sided Labeling Machine

Automatic Double Sided Labeling Machine

Introduction Double Sides Labeling Machine is widely suitable for food stuff, cosmetic, pharmaceutical, pesticide and other industries. It is single and double side labeling for flat, square and round bottle. Automatic controlled by computer (PLC) easy operating. It can change specifications easily. It adopts servo motor, achieved closed...
Automatic Vertical Round Bottle Labeling Machine

Automatic Vertical Round Bottle Labeling Machine

Introduction The vertical round bottle sticker labeler is designed to achieve a rationalized production goal. The labeling process is automated, the operation is simple, the production speed is fast, the labeling position is uniform, beautiful, and tidy; it is suitable for the round container labeling in the pharmaceutical,...
Automatic Flat Top Self-Adhesive Labeling Machine

Automatic Flat Top Self-Adhesive Labeling Machine

Introduction Automatic flat top self-adhesive labeling machine adopt with Siemens PLC control, Omron and LEUZE sensors or Keyence, Mitsubishi Servo motor or delta servo motor. It is Easy control and operation, working stably and high speed and accuracy. Automatic warning on failures, no bottle no labeling. The labeling...
Automatic Orientation Wrap Around Labeling Machine

Automatic Three Roller Positioning Labeling Machine

Introduction It is special design for the round bottle orientation labeling with orientation device, the labeling accuracy can be guaranteed, especially suitable for the wrap around label. Oriented wrap around labeling machine is controlled by servo motor ( label exact is 0.5mm), It is suitable for any kinds...
Lube oils and grease obviously come in different viscosities, such as motor oils. However, other oils, from essential oils to lubricants and greases, will extend the range of viscosity even farther than what might be seen in a range of motor oils. Though viscosities vary, most packagers in this industry will use a pump or piston filler to help move the product through the machine to the bottles in an efficient manner. Rinsing machines may be used if bottles accumulate debris during manufacture, delivery or storage, but are not always a necessity in the industry. Bottle cappers will usually include a spindle or chuck capper for the popular continuous thread cap, though other capping machines may be seen on occasion. Many panel type labelers will be used for oils and lubricants, but front, front and back or even wrap may be seen as well. Complete filling solutions for oils and lubricants are available as tabletop systems for small producers, semi-automatic lines or completely automated lines.

Some lubricants and grease are slower flowing than others, take high viscosity motor oil for example. High viscosity liquids will normally require a specific type of filling machine to complete this portion of the packaging process. So while the machinery used to package different lubricants and grease can vary for each project, a typical automated packaging system for thick lubricants and grease may consist of:

  • Loading Turntable
  • Power Conveyors
  • Automatic Pump Filler
  • Automatic Spindle Capper
  • Labeling Machine
  • Accumulating Turntable

Additional equipment may be found on a packaging system for lubricants and grease, including container cleaning equipment, coding equipment and more. The typical system described above may be modified to meet the unique demands of a specific project and reach a hand-tailored, ideal solution for that given project.
