VKPAK Automatic tube filling and sealing machines feed the tube into a rotary indexing table, orients the tube then fills and seals with either heat seal and trim, or fold and crimp for metal tubes. Suitable for a wide range of applications, tube filling and sealing equipment can fill creams, lotions, food products, pharmaceuticals, greases, gels, glues, pastes, and even, on occasion, powders. All of our automatic tube filling and sealing machines include automatic tube loading, orientation, filling, sealing, and coding for plastic or metal tubes with speed ranges from 30 to 160 tubes per minute and sizes up to 300 ml.
VKPAK offers four types of fully automatic tube filling and sealing machines, three models with capacities of 30-60 tubes per minute, and a high-speed multi-head filling and sealing machine. (Each type can be customized to meet the packer's specific needs.)
The VK-TFS-009U utilizes ultrasonic sealing for plastic and laminated tubes with a capacity of 20-30 tubes per minute; VK-TFS-009H adopts hot air sealing for plastic tubes and laminated tubes with a capacity of 40-60 tubes per minute; VK-TFS-009A adopts folding sealing for aluminum and metal tubes with a capacity of 40-60 tubes per minute; VK-TFS-100 is a high speed filling and sealing machine with hot air sealing for plastic and laminated tubes and folding sealing for aluminum and metal tubes with a capacity of 60-160 tubes per minute.
| Model | VK-TFS-009U | VK-TFS-009A | VK-TFS-009H | VK-TFS-100 |
| Suitable Tube Materials | Plastic / Lami tubes | Aluminum / Metal tubes | Plastic / Lami tubes | All Tubes |
| Sealing Method | Ultrasonic Sealing | Folding Sealing | Hot Air Sealing | Hot Air Sealing or Folding Sealing |
| Capacity (Tubes/Min) | 20-30 | 40-60 | 40-60 | 60-160 |
Automatic Tube Filling And Sealing Machine Videos

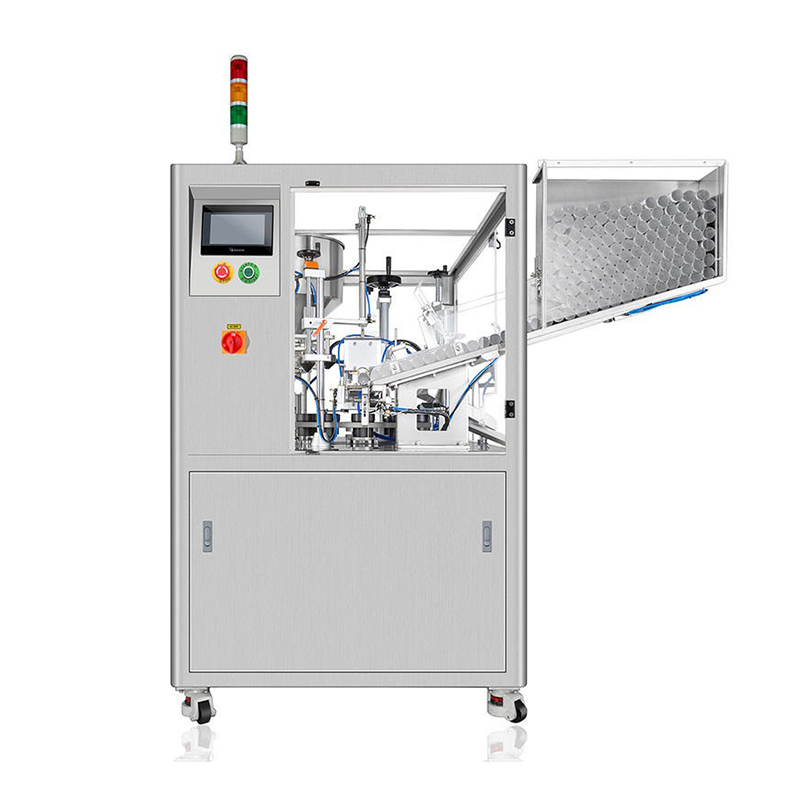

VK-TFS-009U Automatic Ultrasonic Tube Filling And Sealing Machine

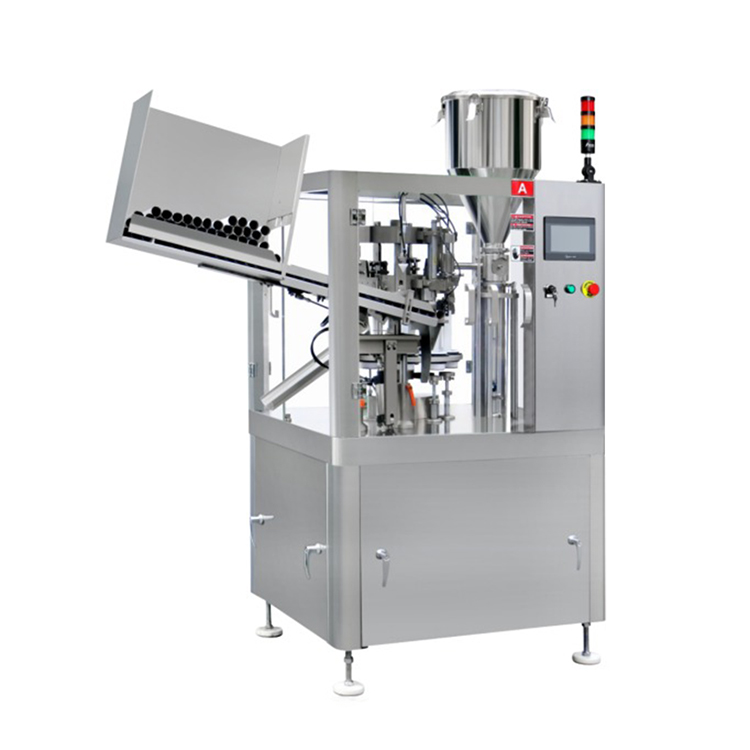

VK-TFS-009A Automatic Aluminum Tube Filling And Sealing Machine
VK-TFS-009H Automatic Plastic / Lami Tube Filler Sealer Machine
High Speed Aluminum Tube Filling And Sealing Machine
VKPAK Automatic Tube Filler And Sealer
VKPAK's automatic tube filling and sealing machine is designed and engineered to produce outstanding quality and precision tube filling and sealing of plastic and plastic / laminate / metal tubes with the output up to 160 tubes per minute. It is widely used in cosmetics, pharmaceuticals, chemicals and foodstuffs industries. All of our tube filler and sealers include automatic tube loading, orientation, filling and sealing, and coding for plastic tubes for sizes up to 300 ml. The tube filling machine will automatically load the tubes from the tube hopper, and the photo mark sensor will automatically position the tube. Using the hot air sealing / ultrasonic sealing / folding sealing method. Then, the tube is transferred to the closing station where the tube is sealed and embossed as required. The tube is then trimmed off and automatically ejected from the machine. The tube filler and sealer offers quick and easy adjustment, making our tube fillers simple to operate and maintain. Different types of finished seals are available for plastic tubes, such as a curved seal and different punch hole seals.
Our tube filling machine can fill plastic and plastic / laminate / metal tubes with viscous, semi-viscous, and liquid products including paste, ointment, lotion, topical, moisturizer, conditioner, cosmetics, toothpaste, shaving cream, and other chemical and foodstuff products.
Why Choose VKPAK Tube Filler Sealer
VKPAK cream and ointment filling and sealing machine are available to handle metal, plastic, aluminum and laminate tubes. This kind of tube filling and sealing machine is capable to handle different types of viscous and semi-viscous products like as cosmetics, ointment, toothpaste, foodstuff, pharmaceutics, and shaving creams and so on. Control with PLC based and touch screen control panel to get the world class performance.
- With high quality touch screen & PLC control system employed, convenient, visualized and reliable non-touch operation of the machine is effected.
- Compact design and auto tube feed. Driving part fully-closed.
- Tube washing and feeding marking identification, filling, folding, sealing, code printing and finished product output all conducted by a fully auto control system.
- Tube washing and feeding conducted pneumatically, accurate and reliable.
- Auto picketage effected by photoelectric inductance.
- Easy adjustment and dismantling.
- Intelligent temperature control and cooling system makes operation easy and sealing reliable.
- With easy and quick adjustment, it is suitable for using multiple kinds of soft tubes for filling.
- The part contacting materials is made of 316L stainless steel, clean, sanitary and conforming to GMP for medicine manufacture.
- With safety device, the machine is shut down when the door is open.
- And filling carried out only with tubes fed. Overload protection.
Squeeze Tube Sealing Options
Selecting a tube sealing method is just as important as selecting the proper tube.
Tube sealing options for plastic, laminate and metal tubes may seem complicated, but once you understand each method available it will make the choice much easier.
Making the right selection for sealing a tube is not only important to seal strength but also the final look of the tube.
Tube Sealing: The Ultimate Guide
VKPAK is a manufacturer of automatic tube filling and sealing machines for all squeeze tubes. We do not trade with used machines / equipment, however we are convinced that you will find the pricing of our new machines very attractive. Contact us to receive a price quotation now.
