Automatic 4 Wheels Bottle Capping Machine

Introduction

Automatic 4 Wheels Capping Machine is designed to handle Trigger Spray Cap, Pump Cap, Push-pull Cap, Snap Hinge Cap and Sport Push-pull Cap.

Round bottles, square bottles and flat bottles

Applicable Caps: Screw Caps and twist of metal caps

The main structure is made of durable 304 stainless steel. The machine is control by touch screen; parameter can be set on touch screen very easily. It is very flexible for different sizes of round bottles, square bottles and flat bottles by adjustment. Capping time can be set to fit different caps and different levels of tightness. It is very easy for exist line upgrade.


DescriptionMain Component ListDetail ImagesContact UsRelated Products
Automatic capping machine is widely used in kinds of bottles, such as round caps, spray pump caps, conical caps, etc. Compared with ordinary capping machines, VKPAK's capping machine are easier to use. The structure of the humanized adjustment machine reduces the tedious process of using tools to adjust the machine to a certain extent, thereby greatly improving the efficiency of capping.

Features

1. Automatic cap feeding system, vibrating tray.

2. No tools requirements for different size adjust for capping system.

3. Output meet the filling machine, but max 40 bottles/ min.

4. No bottle No capping.

5. Control panel with touch screen. capping programs saving.

6. Machine’s body of SS 304. GMP standard stainless steel.

7. Controlled by DALTA touch screen.

8. Adjustable for different sizes and shapes of caps and bottles

9. Bottle Clamp belt bottle in system is optional for upgrade capping speed, up to 40BPM

10. Integrated digital control with Schneider PLC and high-tech touch screen controls for easy operation.

Parameters

Capping Head1 Heads
Production Capacity12-40BPM depending on bottle sizes and shapes
Bottle HeightUp to 460MM
Cap DiameterUp to 70MM
Voltage/Power220VAC 50/60Hz 450W
Driven wayMotor with 4 wheels
InterfaceDALTA Touch Screen
Spare PartsCapping Wheels

Working Video

video play button
video play button

Application

Automatic Capping Machine is suitable for kinds of industries. Widely used in pharmaceutical, chemical, food, beverage, grease and pesticide industries automatic screw cap, can be used on a production line with filling machine and so on, also configurable conveyor belt used alone. The biggest characteristic of it is no need to add parts, by adjusting the shape can adapt to sort, all kinds of bottle automatic screw cap, with international advanced cap device, high production efficiency.

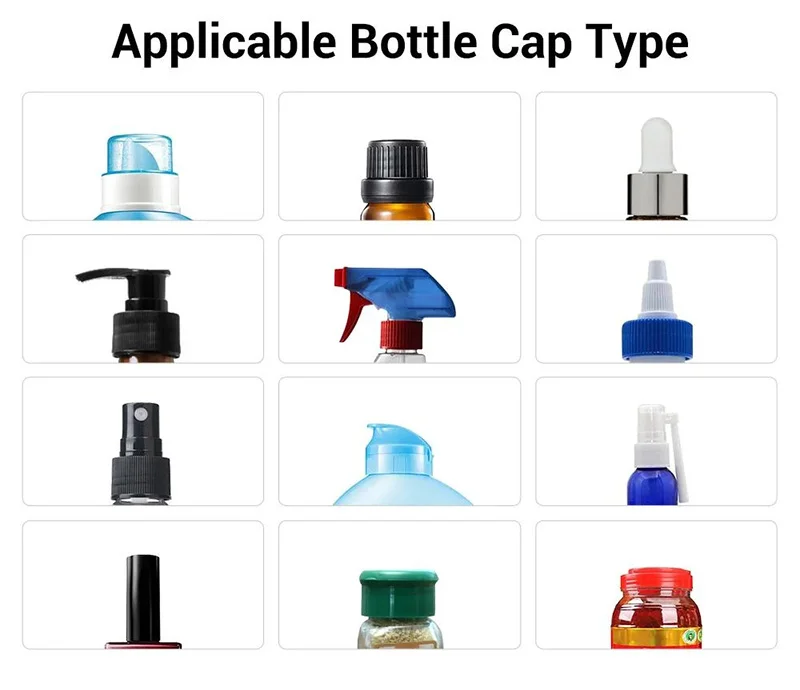

Automatic 4 Wheels Bottle Capping Machine Application

Advantages:

1. This machine adopts conveyor belt for automatic bottle feeding, automatic capping, capping, belt clamp bottle conveying mechanism, screw cap mechanism, electric control system, etc., with high degree of automation, reasonable design, compact structure and convenient operation;

2. The frame, parts and casing are mainly made of high-quality stainless steel, beautiful in appearance, easy to clean, and meet GMP requirements;

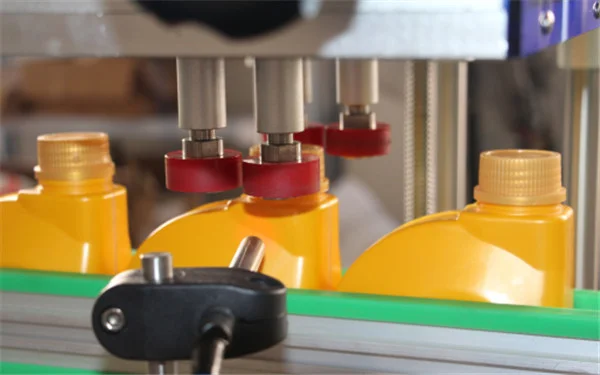

3. Adopting the principle of four-wheel clamping spinning, the structure is simple and reasonable, the performance is stable and reliable, and the work efficiency is high. It solves the drawbacks of traditional capping machines such as slipping and damage.

4. It is suitable for a wide range of applications such as screw caps, anti-theft caps, children's caps, duckbill caps, pump head caps, sprinkler caps, etc.;

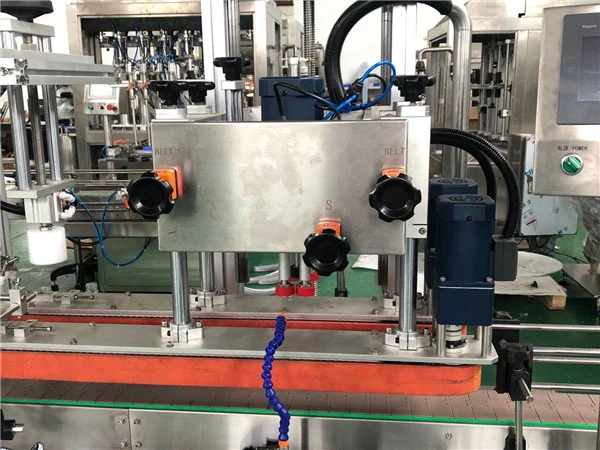

5. The spacing and height of the capping mechanism can be adjusted quickly. When changing bottle types and caps of different specifications, the whole process can be adjusted without using tools, and the replacement can be completed by adjusting the handwheel.

6. The cover feed mechanism is equipped with a photoelectric sensor safety protection device, which improves the stability and reliability of the equipment.

No.DescriptionsBRANDITEMRemark

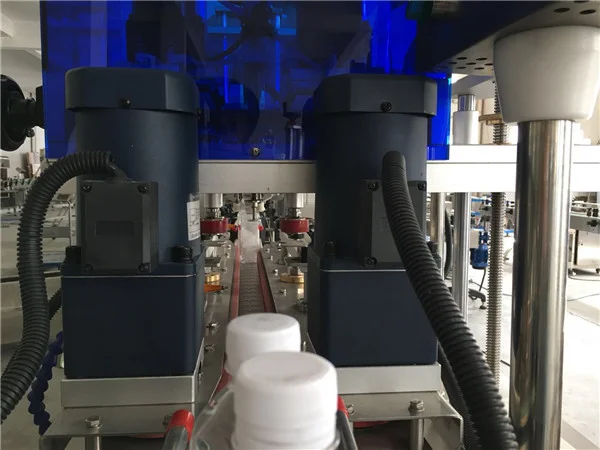

1Capping MotorJSCC120WGermany Technology
2ReducerJSCCGermany Technology
3Touch ScreenDALTATAIWAN
4PLCDALTATAIWAN

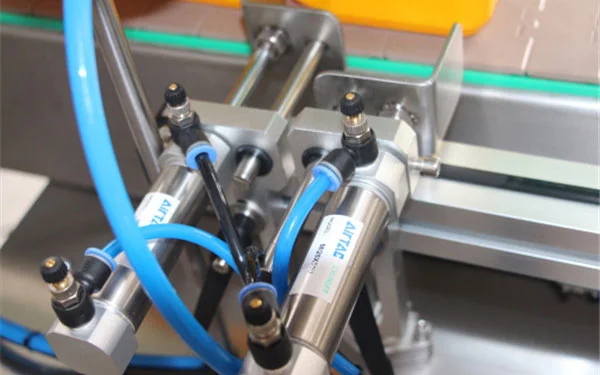

5Pneumatic CylinderAIRTACTAIWAN
6Air FilterAIRTACTAIWAN
7Main Structure304SS
8Press ControllerAIRTACTAIWAN
