Introduction
VK-T805 semi automatic rolling labeling machine is suitable for all kinds of specifications of hexagon bottle, square, round, flat and curved products labeling, such as packaging boxes, round bottles, cosmetic flat bottles, curved boards.
VK-T805 can achieve full coverage labeling, partial accurate labeling, double label and three label labeling, the front and back labeling of the product, the use of double labeling function, you can adjust the distance between the two labels, widely used in packaging, electronic products, cosmetics, packaging materials industries.
VK-T805 has additional functions to increase: configuration code printer or ink-jet printer, when labeling, print clear production batch number, production date, effective date and other information, coding and labeling will be carried out simultaneously, improve efficiency.
View VideoHighlights of the equipment: labeling based on the principle of rolling, stable labeling, no bubbles in labeling; especially suitable for electronic plastic products, transparent labels for cosmetics.

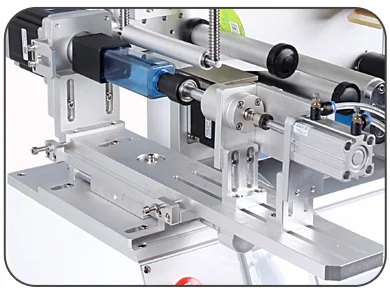

Machine Description:
Adjust method is simple and only needs to move the height of the pressure wheel.
Adjust the mold position of the pressing product and the position of the sensor. The adjust process is less than 10 minutes.The labeling accuracy is high, and the error is difficult to be seen by the naked eye. It is the good choice for products with less mass production.
VK-T805 floor space about 0.56 stere.
Machine Support Customization.
| Parameter | Data |
| Label Specification | adhesive sticker, transparent or opaque |
| Labeling Tolerance | ±0.5mm |
| Capacity(pcs/min) | 15 ~ 30 |
| Suit bottle size(mm) | L:20~200 W:20~150 H:0.2~120;Can be customized |
| Suit label size(mm) | L: 15-200; W(H): 15-130 |
| Machine Size(L*W*H) | ≈830*720*950 (mm) |
| Pack Size(L*W*H) | ≈1180*750*1100 (mm) |
| Voltage | 220V/50(60)HZ;Can be customized |
| Power | 660W |
| N.W (KG) | ≈45.0 |
| G.W(KG) | ≈67.5 |
| Label Roll | ID: Ø76mm;OD:≤240mm |
| Air Supply | 0.4～0.6Mpa |
Main Features
- Efficiency can reach 20-50 times per minute.
- Labeling bottle adjustable, meet different before and after the work-piece labeling needs.
- Labeling effect is good, no bubble, no creases, grade high to increase product competitiveness.
- Modular design, convenient maintenance and repair costs low. Using stepper motors + PLC + electronic control system consisting of fiber optic sensors, equipment stability, long time working;
- High accuracy and high speed, dispensing & labeling automatically, easy to operate. Labeling accuracy of ± 0.5mm, meet the needs of high-precision labeling;
- Easy to operate: stripping labels, labels delivery, suction labels, labeling and other actions automatically cover label, manual loading to complete the labeling process;
- Safety: transmission components wrapped with pneumatic circuit arranged separately, to avoid an exception occurs, the use of safer;
Application
The rolling labeling method is applied to realize the labeling of various workpieces on the plane, such as flat bottle, square bottle, hexagonal bottle, prismatic bottle and so on.Changing the marking mechanism can be applied to the labeling of uneven surfaces, such as prismatic surfaces and circular surface labelling.
Applicable labels: self- adhesive labels, transparent labels, electronic supervision codes,barcodes, etc. Applicable products: Products that require labeling on flat, curved or other surfaces.
Application industry: widely used in food, toys, daily chemicals, electronics, medicine,hardware, plastics, printing and other industries.

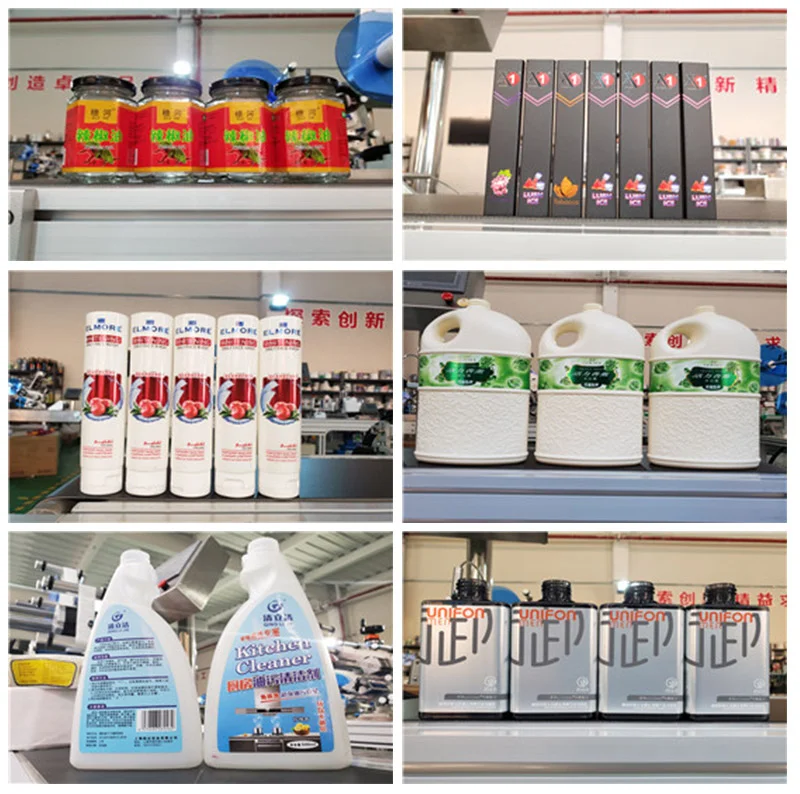

Application examples: lighters, muti-angle bottles, square bottles, fat bottles, etc.
Work Process
Press the switch after the product is placed in the designated position.
The machine will clamp the product and pull-out the label, the wheel on the top of machine will press the label onto the product and then roll until the labeling is finished.
Release the product and the machine will automatic restore.
A labeling process is completed.

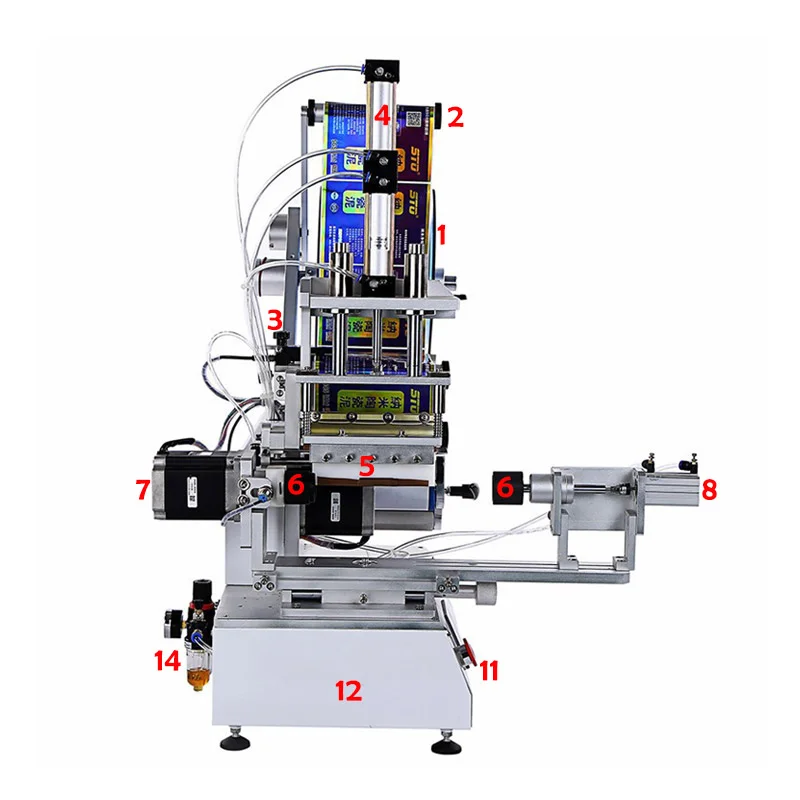

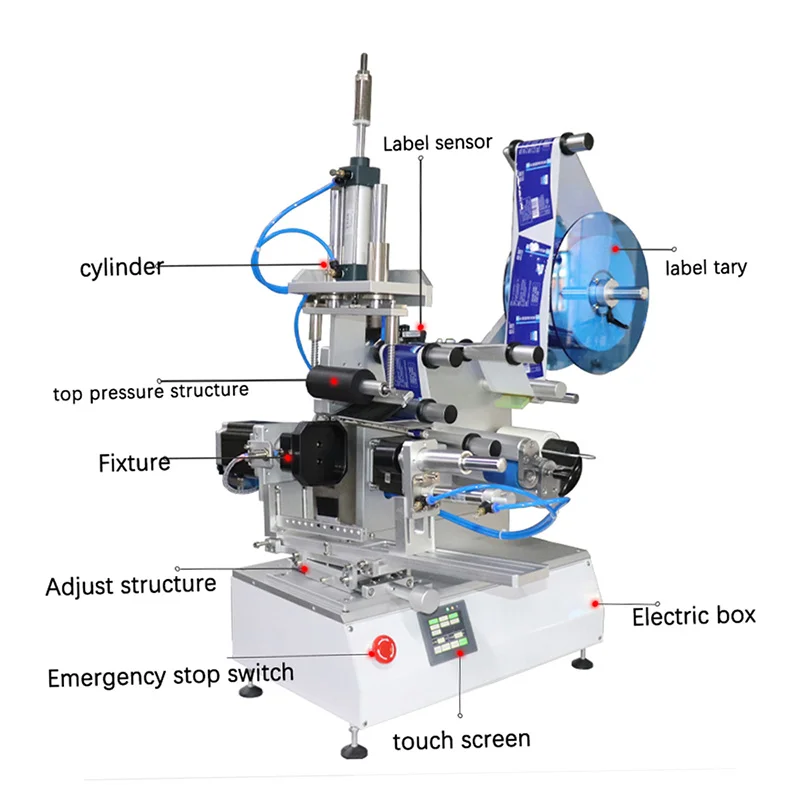

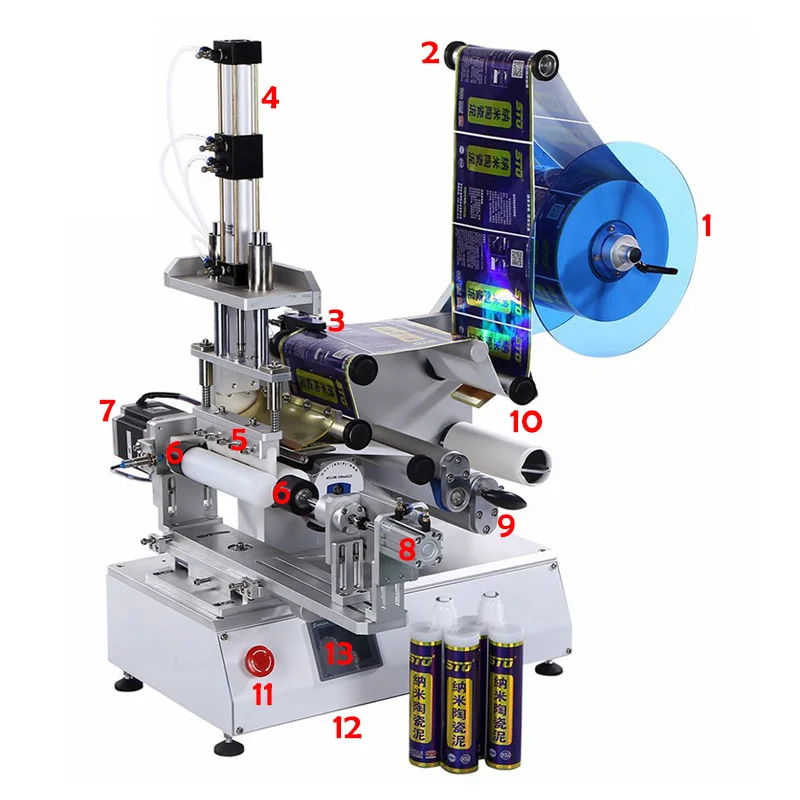

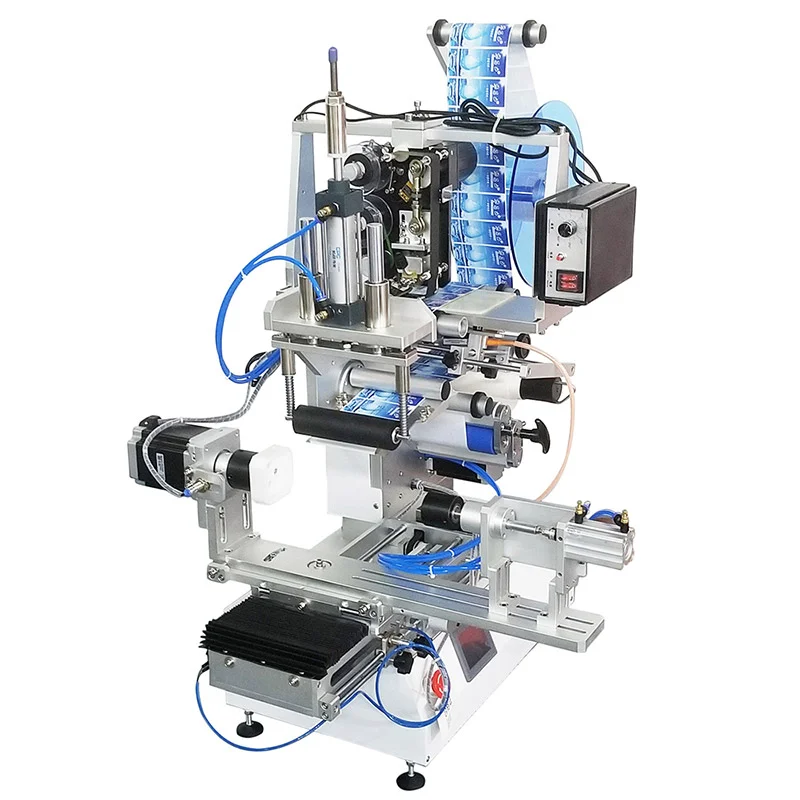

| No. | Structure | Function |
| 1 | Label Tray | Place the label roll |
| 2 | Rollers | Wind the label roll |

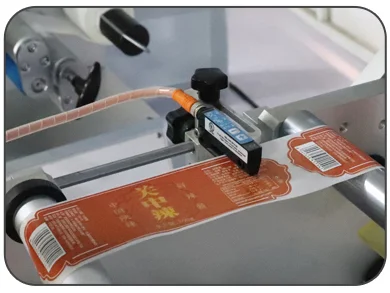

| 3 | Label Sensor | Detect label |

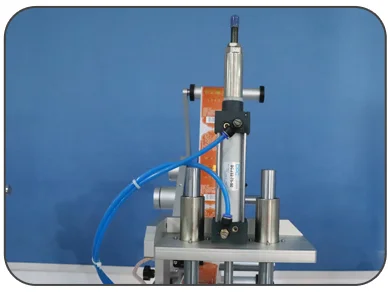

| 4 | Strengthening Cylinder | Drive the strengthening device |
| 5 | Strengthening Device | Smooth label while labeling and make it stick tight |

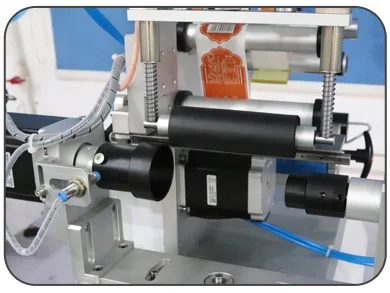

| 6 | Product Fixture | Custom-made,fix product from top and bottom while labeling |
| 7 | Fixture Motor | Drive the fixture to rotate while labeling |
| 8 | Fixture Cylinder | Drive the fixture |
| 9 | Traction Device | Driven by traction motor to draw the label |
| 10 | Release Paper Recycling | Recycle the release paper |
| 11 | Emergency Stop | Stop the machine if it runs wrong |
| 12 | Electric Box | Place electronic configurations |

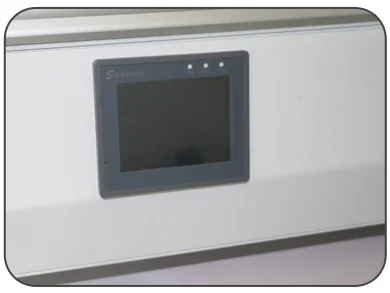

| 13 | Touch Screen | Operation and setting parameters |

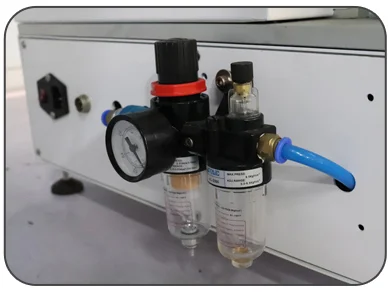

| 14 | Air Circuit Filter | Filter water and impurities |
