Automatic Horizontal Vial Sticker Labeling Machine


This automatic horizontal vial sticker labeling machine is suitable for circumferential or semi-circular labeling of various unsteady cylindrical objects. Widely used in cosmetics, food, medicine, daily chemical, electronics, toys, hardware, plastics and other industries, can achieve full circle / circle mark. The use of horizontal delivery and horizontal labeling increases stability and improves labeling efficiency. Optional ribbon coder and inkjet printer, labeling at the same time to achieve print production lot number, production date and other information, to achieve labeling – coding integration, reduce packaging processes and increase production efficiency. Applicable stickers, stickers, electronic surveillance codes, bar codes, two-dimensional code labels, transparent labels, etc. High equipment stability, labeling effect, no bubbles, no wrinkles, high labeling accuracy.

Automatic horizontal self-adhesive labeling machine is mostly applicable for small diameter round containers for medicine, daily chemical, food cultural supplies, electronic and etc.

Examples: any small diameter round bottles with one label, such as ampoules bottles.

Model: VK-HRL

View Video
ParameterFeaturesConfiguration PartsMachine DetailsWorking VideoContact UsRelated Products
Labeling speed(pcs/min)80-250(relate to material and label size)
Labeling accuracy(mm)±1.0mm(material and label sizes are not countedin)
Label size(mm)(L)15-300mm(H)10-150mm
Material size(mm)Φ20-φ120mm(H)20-300mm
Roll inside(mm)φ76mm
Roll outer diameter(mm)Max:Φ320mm
Machine size(mm)(L)1950*(W)1100*(H)1300(mm)
Power supplyAC220V50Hz/60Hz1500W(Can be customized )

1. This machine can fit for ampoule of pharmaceutical industry, vials, oral liquid, blood vessels; Stationery such as pen, paste pen; In daily chemical industry such as lipstick, lip balm etc small cylindrical material for the wrap around part of wrap of the automatic labeling requirements

2. The whole machine adopts mature PLC control system to ensure the stable running in high speed; Touch screen makes easy reading and excellent looking. More than 10 groups of labeling parameters saved, makes setting rapidly.

3. Labeling is performed smoothly with no creases with the use of elastic cotton idler wheel;

4. Automatic photoelectric detection functions including canceling labeling without objects there and stopping running or raising an alarm without labels to use to avoid omitting or wasting labels.

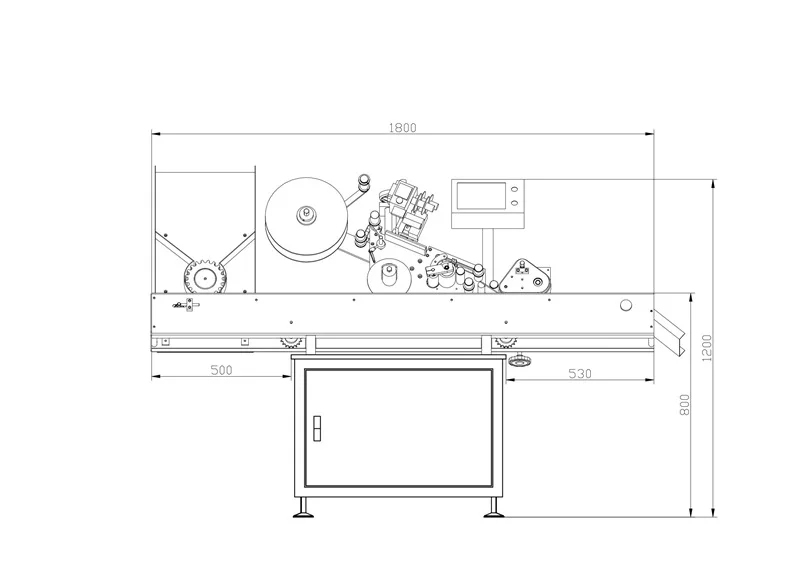

Automatic Horizontal Vial Sticker Labeling Machine Drawing


The horizontal labeling machine can meet ampoules, oral liquids, blood collection tubes in the pharmaceutical industry; stationery items such as pen holders, solid glue, paste pens; lipstick, eyebrow pencils, etc. in the cosmetics industry;

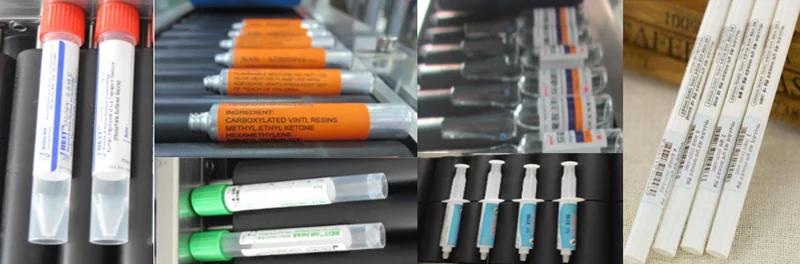

Automatic Horizontal Vial Sticker Labeling Machine Application


Manual placement of pasted products (on-line or bottle handling turntable) >> automatic separation and correction and transportation of products >> product testing >> product labeling >> collection of labeled products (entering the next process) >> taking away products.

Working principle:

After the bottles enter the conveyor belt of the labeling machine, the bottles are fed to the labeling machine at a constant speed. The mechanical fixing device separates the pasted objects by a fixed distance and pushes the pasted objects along the direction of the conveyor belt. After the mechanical system (driving wheel, labeling wheel and reel), the driving wheel intermittently pulls the label belt to move, and the label is pulled out from the reel and pasted on the object to be pasted through the labeling device

Equipment advantages:

1. The adjustment is simple, and the front and rear, left and right, up and down directions, plane inclination angle and vertical plane inclination angle adjustment seats are configured. There is no dead angle for different bottle shape switching, which meets the GMP production requirements;

2. Automatic bottle separation, effectively eliminate bottle separation caused by bottle error and improve stability;

3. It has automatic shutdown function, production counting function, power saving function (when there is no production within the set time, the equipment will automatically turn to the power saving standby state), prompt function of production number setting, parameter setting protection function (parameter setting is divided into authority management), which is convenient for production management;

4. Powerful function, color touch screen control, Chinese and English optional operation interface, convenient and intuitive, powerful data memory function, can store 50 groups of labeling parameters, with production counting function, power saving function, production number setting prompt function, parameter setting protection function, convenient production management, different product labeling switch can be realized by one key, without repeated debugging, simple and fast Good fault prompt and help function;

6. High stability. The imported first-line brand is adopted for the measuring standard and measuring object sensor, with high detection sensitivity, stable performance and durability; the stable and durable frame and various parts adopt standardized modular design with complete interchangeability and 24-hour operation to ensure safety and stability.

7. It is safe and hygienic. The case is made of stainless steel SUS304 and T6 aluminum alloy. It will never rust and meet the GMP excellent manufacturing standard;

Optional functions and components:

1. Code printer: the hot printer can print the date of production, expiration date, batch number, etc. Marking and labeling are synchronized to improve production efficiency.

2. Inkjet printer: it can match the mainstream inkjet printer in the market, spray code at the designated position of the label, and perfectly combine with the labeling machine.

3. Universal sensor: ordinary sensor can not detect transparent label, so it must be used with special electric eye imported from Germany.

4. Reader: read two-dimensional code, bar code and other information, easy to establish product database for product traceability.

* 304 Stainless steel frame construction

* Labeling speed is automatically synchronized with conveyor speed to ensure quality labeling;

* Automatic infeed turntable diameter 550mm

* Hot foil coding machine

* Servo motor and PLC and Touch Screen assure prefect label exact

* Automatically check the length of labels

* Equipped with warning device of insufficient labels, broken labels

* No bottle, no labeling

* No labels, no labeling and automatic warning

* No Ribbon, automatic warning

* The bottle stand on the tray, and automatic lay down on conveyor for labeling

* Servo motor control label, no label break, high speed.

Serial numberNAMEITEMbrandcountry of origin
3Labeling motor1PanasonicJapan
4Labeling motor driver1PanasonicJapan
5Conveying motor1JianmingShanghai China
6Conveyor motor frequency converter1SiemensGermany
7Bottle dividing motor1JSCCGermany
8Bottle dividing motor controller1JSCCGermany
9Label motor1JSCCGermany
10Label motor controller1JSCCGermany
11Low voltage electrical apparatus1SchneiderFrance
12Label sensor1OMRONJapan
13Labeling sensor1OMRONJapan
14Synchronous toothed belt1BandoJapan
15Pneumatic components1AirTACTaiwan, China
16Conveyor belt1LilaiShanghai China
17frame1Shanghai China
18system integration1Shanghai China

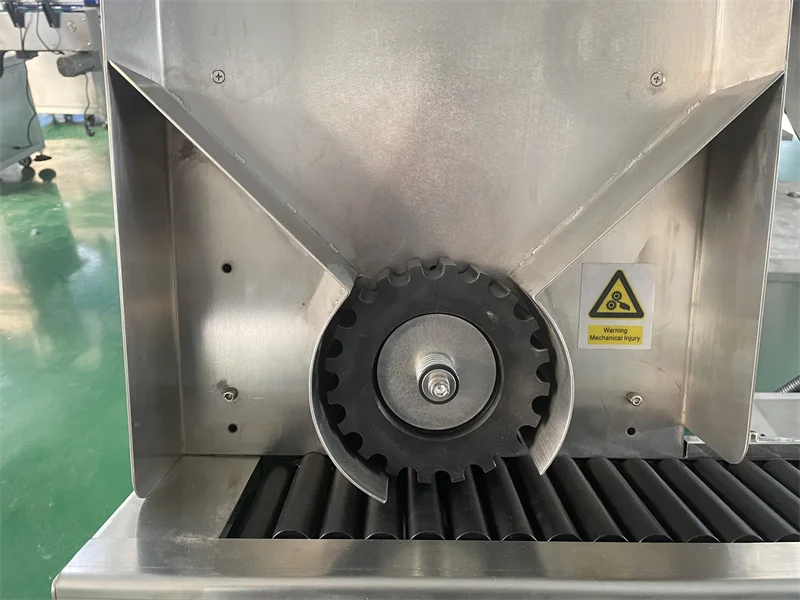

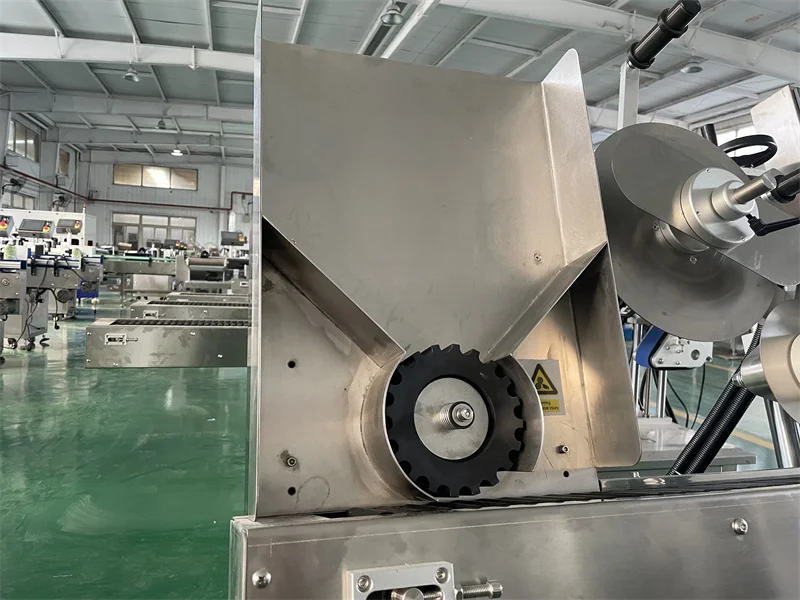

Unloading station: simple operation, clear and convenient.

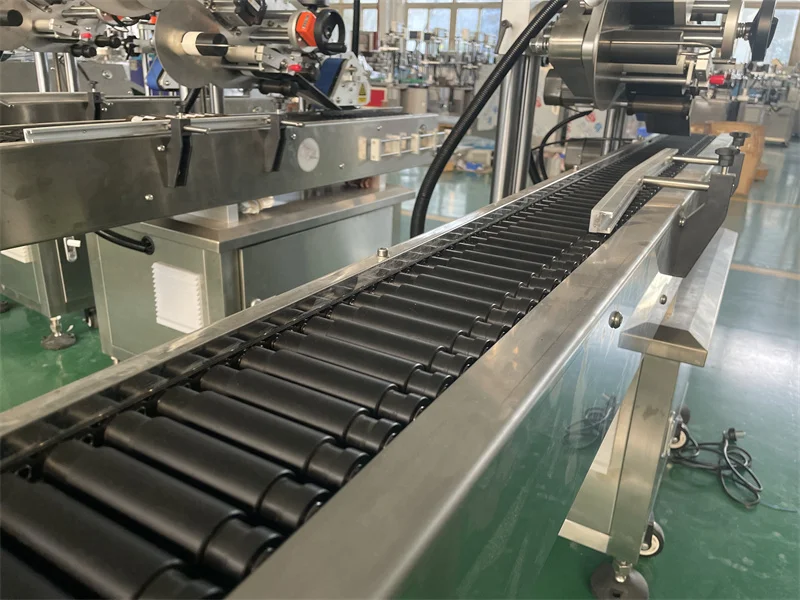

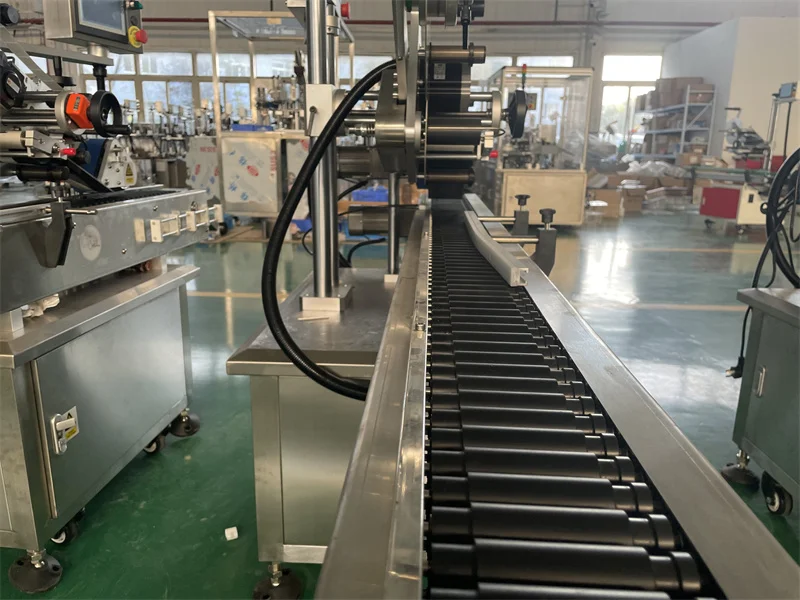

Roller conveyor belt: designed according to the object to be attached, with strong compatibility. durable.

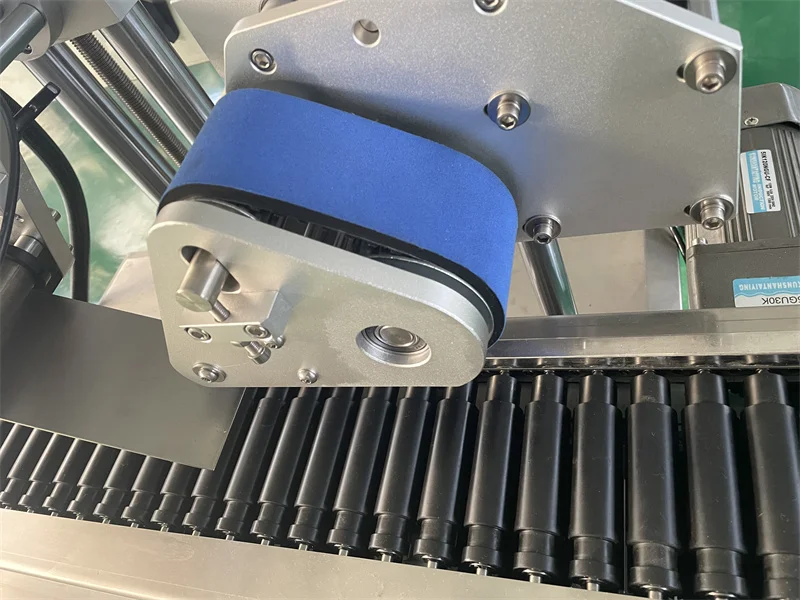

Label power mechanism: the servo motor is used as the power, and the eccentric mechanism is used to press the label paper to do the dynamic rolling, and the label stripping board is used to draw the label at the same time.

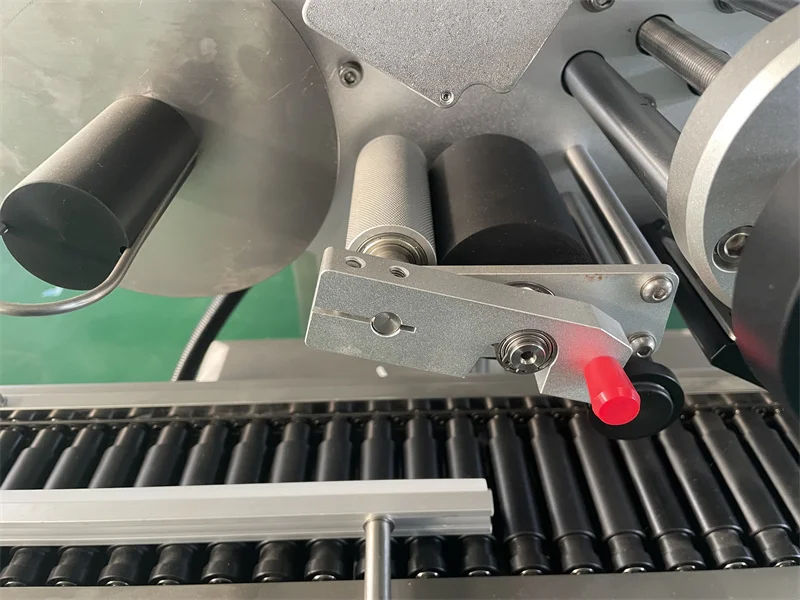

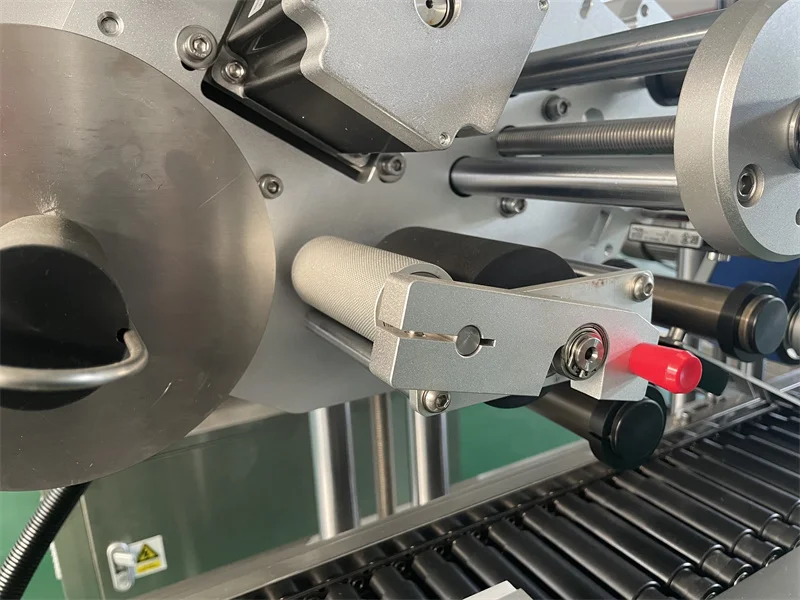

Pull label mechanism: motor control and conveyor belt synchronization, output label.

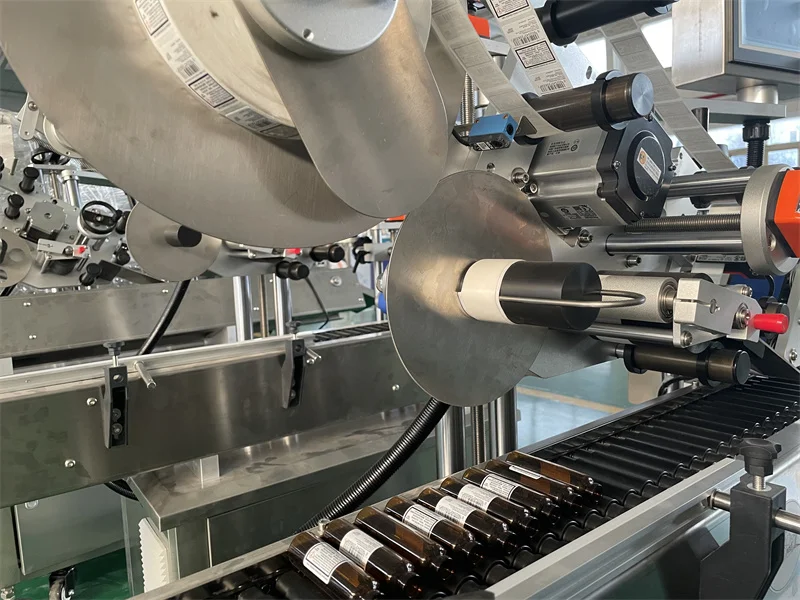

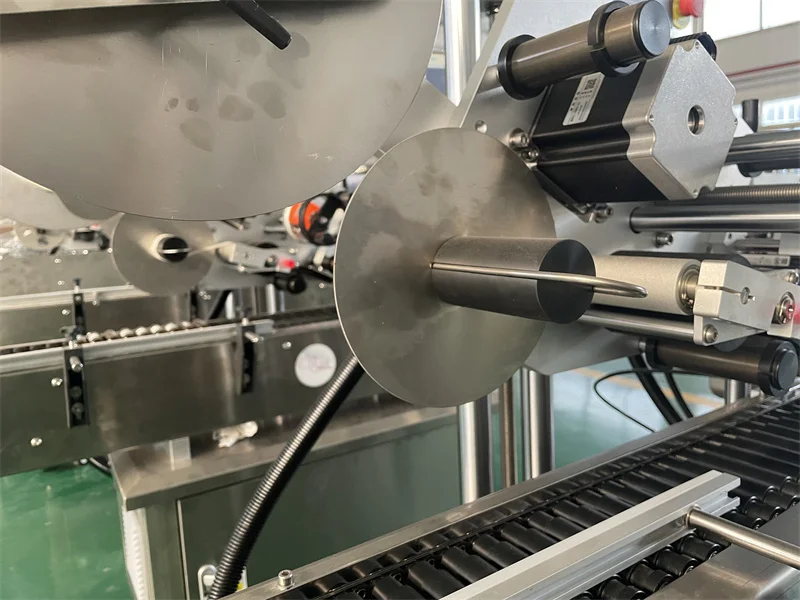

Receiving mechanism: motor control, synchronous with conveyor belt and label pulling mechanism to collect label bottom paper.

Label roller device: beautiful and elegant, dust-proof, easy to replace label.

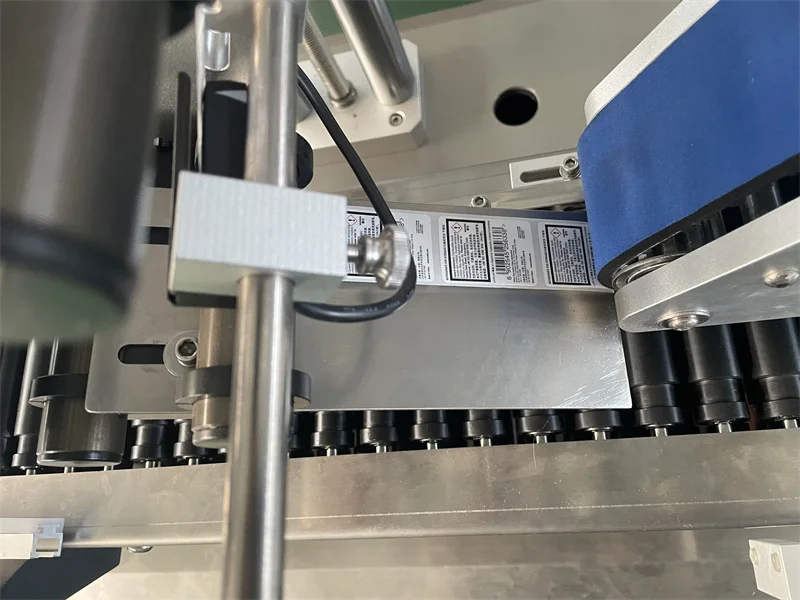

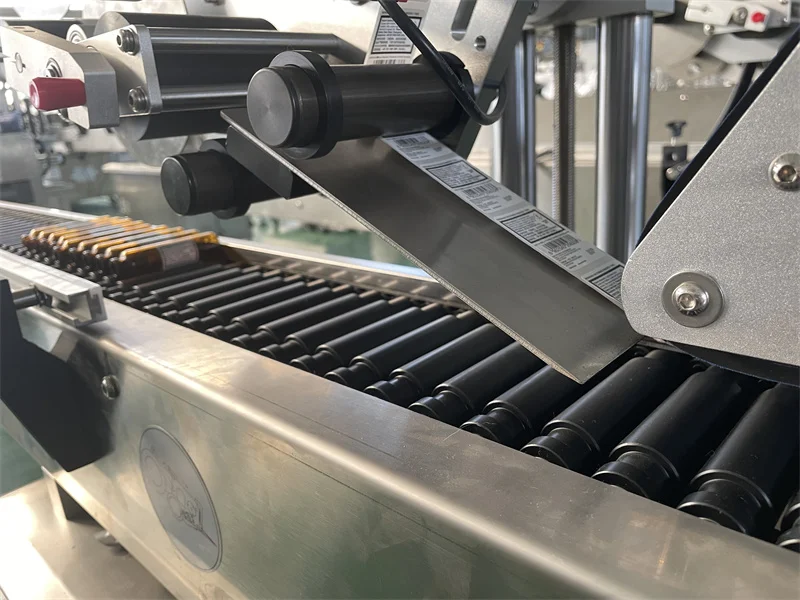

Label stripping mechanism: it can adjust the position of label pulling off, the position of label pulling off and sending can be adjusted quickly, and the label changing is convenient.

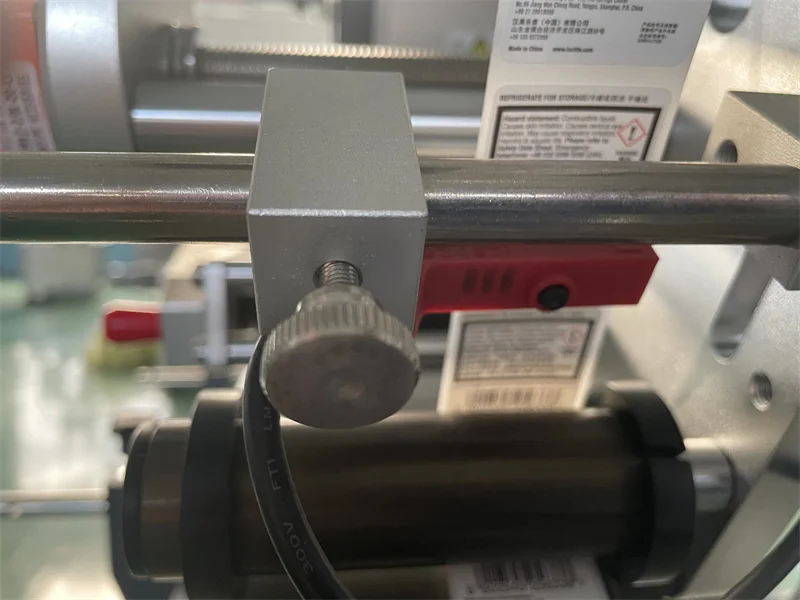

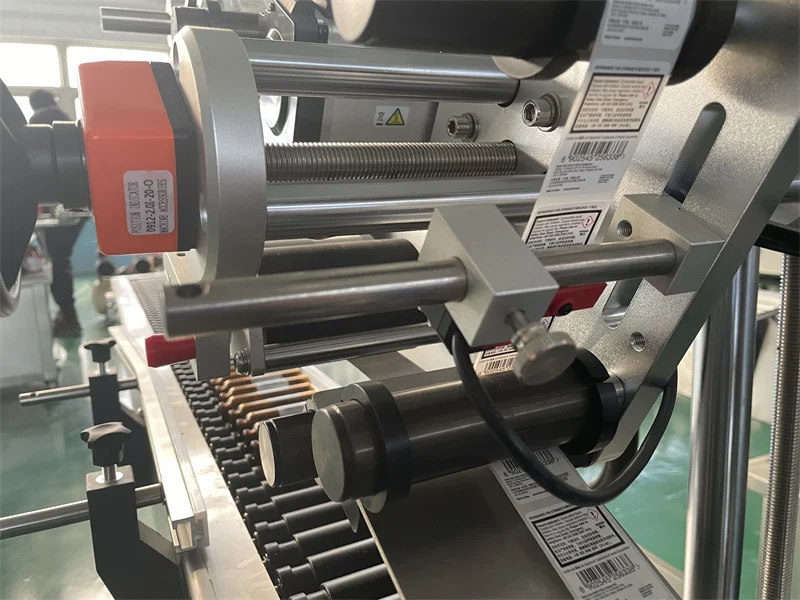

Photoelectric detection: control bottle and label one by one, no label without bottle, no label repeated.

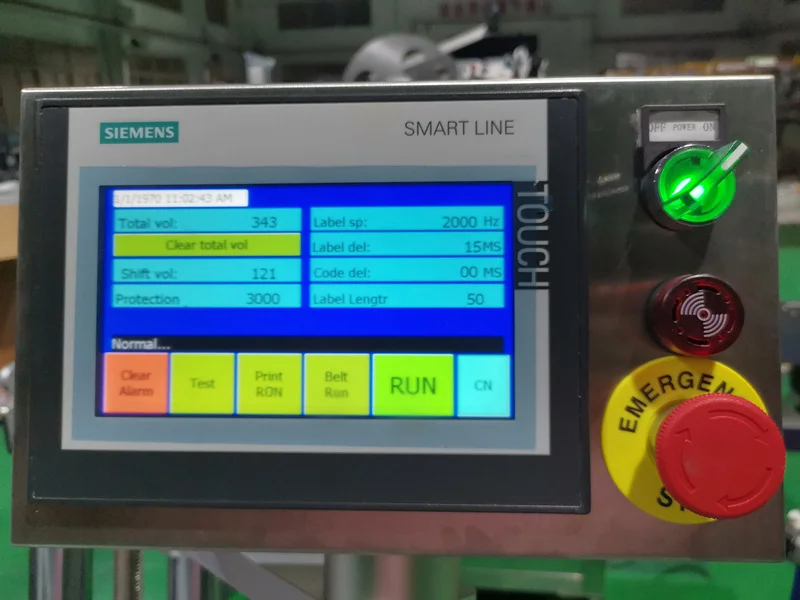

PLC man-machine touch control screen: simple, convenient, easy to learn.

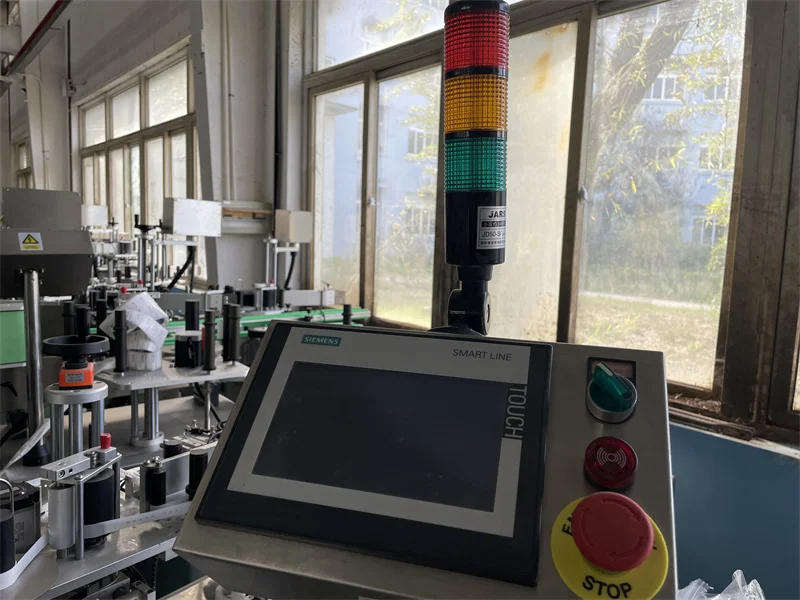

Alarm system: sound and light alarm device, production supervision more convenient, emergency stop button, maximum protection of personnel safety.
