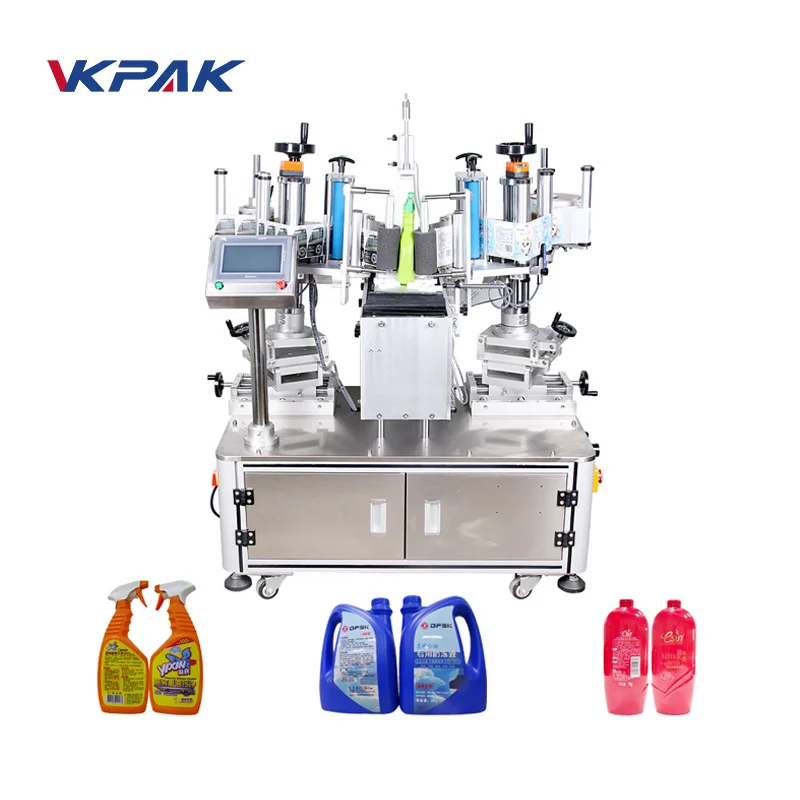

VK-T806 Semi Automatic Double Side Sticker Labeling Machine

Introduction

VK-T806 semi-automatic labeling machine applies the roll-sticking method to label, and realizes labeling on the sides of various workpieces, This machine is suitable for single side and both sides labeling of flat bottles, square bottles and special-shaped bottles, such as cosmetic flat bottles, packaging boxes, plastic jar side labels, honey bottles, shampoo flat bottles, lubricating oil flat bottles, hand sanitizer round bottles, etc. High-precision labeling highlights the excellent quality of products and enhances competitiveness. The labeling mechanism can be changed, and it is suitable for labeling on uneven surfaces, such as labeling on prismatic surfaces and arc surfaces. The fixture can be changed according to the product, which can be applied to the labeling of various irregular products. It is widely used in cosmetics, food, toys, daily chemical, electronics, medicine and other industries.

1. Date printer can be added,which can print production date, batch lot and expiry date while labeling.

2. Support customization.


DescriptionMachine DetailsWorking VideoContact UsRelated Products
VK-T806-Semi-Automatic-Double-Side-Sticker-Labeling-Machine

Machine Description:

VK-T806 semi-automatic labeling machine has additional functions that can be added to the options: optional color band coding machine is added to the label head, and the production batch, production date and expiration date are printed at the same time. Reduce packaging process, greatly improve production efficiency, special label sensor.

VK-T806 semi-automatic labeling machine has simple adjustment method, high labeling accuracy of ±0.5mm, good quality, and it is difficult to see the error with the naked eye.

VK-T806 semi-automatic labeling machine covers an area of about 0.35 cubic meters

Support custom labeling machine according to the product.

ParameterDate
Label SpecificationAdhesive sticker, transparent or opaque
Labeling Tolerance±0.5mm (errors caused by product and label are not concerned)
Capacity(pcs/min)15 ~ 30(According to product size)
Suit bottle size(mm)L: 40~400; W: 40~200 H: 0.2~150; Can be customized
Suit label size(mm)L: 6~150; W(H): 15-130
Machine Size(L*W*H)≈1300*1200*1400(mm)
Pack Size(L*W*H)≈1350*1250*1450(mm)
Voltage220V/50(60)HZ; Can be customized
Power990W
N.W(KG)≈170.0
G.W(KG)≈200.0
Label RollID:>76mm; OD:≤280mm

Main Features

  • Fast and efficient, double-header design, two labels at the same time, 5-10 times the efficiency of manual labeling.
  • Powerful function, it can be used for labeling the side, arc surface and concave plane of various workpieces, and can be used for labeling irregular workpieces;
  • Equipped with a color touch screen, 50 groups of parameters are saved and memorized, and faults can be eliminated with one key.
  • The labeling is accurate and the stability is high. The PLC+ subdivision stepper motor is used to drive the label, and the label feeding is accurate; the unwinding mechanism is equipped with a braking function to ensure that the label is taut and the label is detected accurately; the label bypasses the correction mechanism to prevent the label left and right offset;
  • Durable and durable, the circuit and the air circuit are arranged separately, and the air circuit is equipped with a purification device to avoid moisture in the air from damaging the electrical appliances and prolong the life of the equipment; the whole machine is made of high-grade aluminum alloy and stainless steel materials, and the quality is firm;
  • Easy to adjust, equipped with adjustable front and rear stroke function, labeling products of different sizes, no need to repeatedly replace the fixture;
  • Beautiful appearance, using the bottom computer white battery box, with stainless steel and high-grade aluminum alloy, beautiful appearance, improve the equipment grade;
  • With manual/automatic labeling control methods, workers can choose to use sensors or foot steps to realize labeling control according to their needs; set manual and automatic control buttons, and the length of the label can be adjusted arbitrarily;
VK-T806-Semi-Automatic-Double-Side-Sticker-Labeling-Machine-Application

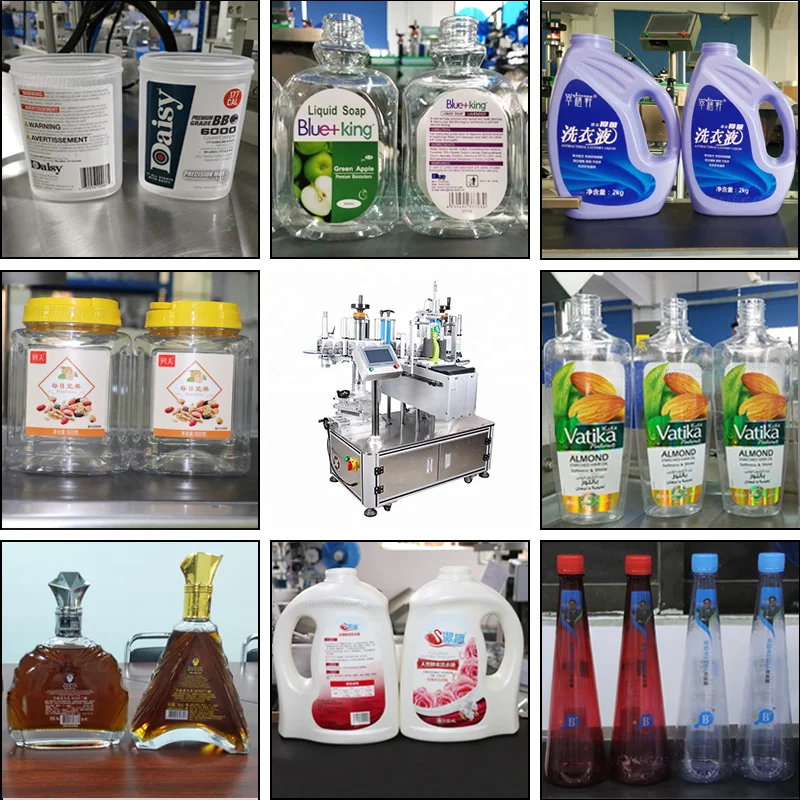

Application

1. Applicable labels: self-adhesive label, self-adhesive film, electronic supervision code, barcode, etc.

2. Applicable products: products that require labels to be affixed on the side plane and the large arc surface of the side.

3. Application industries: widely used in food, cosmetics, daily chemical, electronics, medicine, hardware, plastics and other industries.

4. Application examples: honey squeeze bottle labeling, shampoo flat bottle labeling, lubricant flat bottle labeling, shampoo flat bottle labeling, etc.

VK-T806-Semi-Automatic-Double-Side-Sticker-Labeling-Machine

Work Process

1. Feeding: Put product on the fixture.

2. Transmission: the conveyor sends the product forward and backward.

3. The product sensor sends product signal and PLC outputs labeling signal.

4. Labeling.

5. Strengthening: the sponge on the 2 sides press the labels to make they stick tighter.

6. Collection: Get the ready labeled product Out.

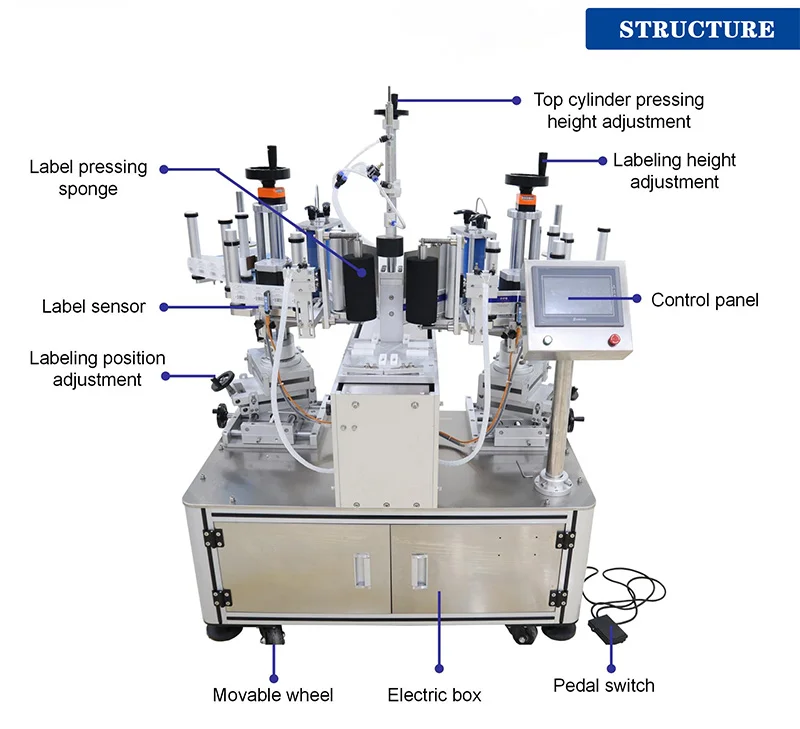

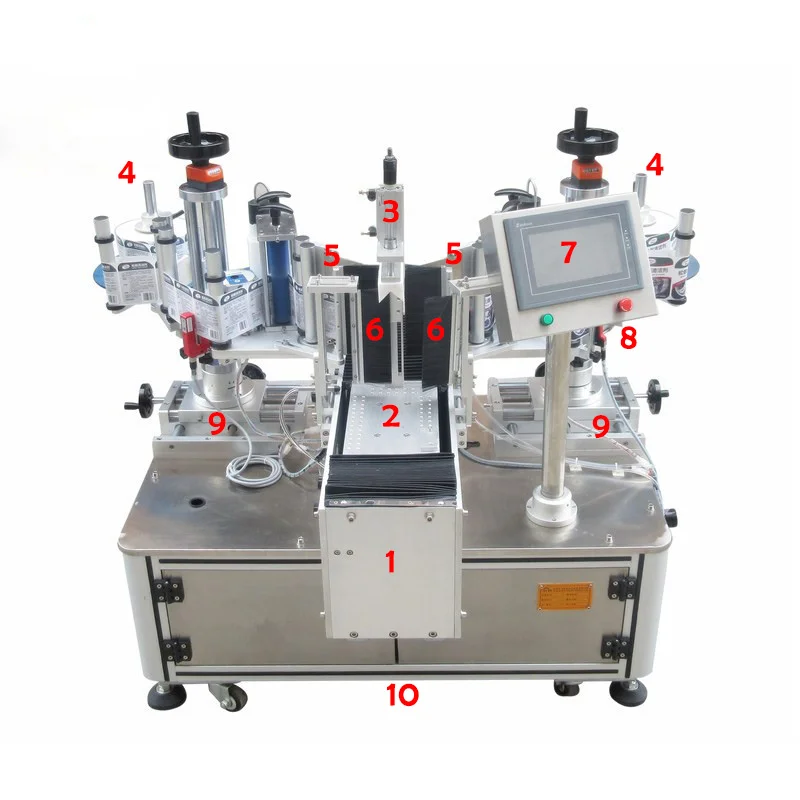

VK-T806-Semi-Automatic-Double-Side-Sticker-Labeling-Machine-Structures

No.StructureFunction
1Conveyortransmit product.
2Top Labeling Headlabeling on the top,core of the labeler,including label-winding and driving structure.
3Bottom Labeling Headlabeling on the bottom,core of the labeler,including label-winding and driving structure.
4Product Sensordetect product.
5Label-peeling Platepeel label from the release paper.
6Brushsmooth labeled surface.
7Touch Screenoperation and setting parameters
8Strengthening DevicePress labeled product to strengthen labeling.
9Collection Platecollect the labeled products.
10Electric Boxplace electronic configurations.
11Double Side Guardrailskeep products go straightly, can be adjusted according to product size.
VK-T806-Details

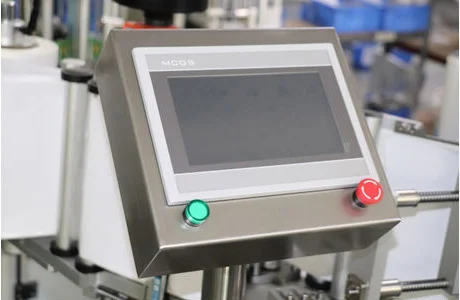

Touch screen

Touch screen with PLC, Debug machine and control the machine star and stop.

VK-T806-Details

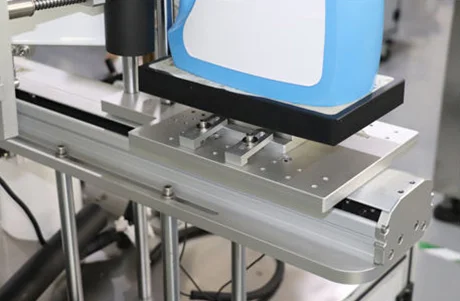

Module structure

Modules drive labeling products. stable and accurate positioning. ensuring product accuracy and customer experience

VK-T806-Details

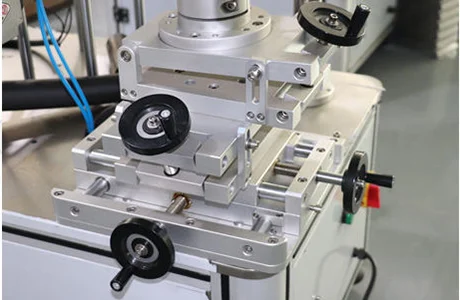

Adjust structure

Adopt 3 horizontal bar structure can adjust the position of the label head from six angles

VK-T806-Details

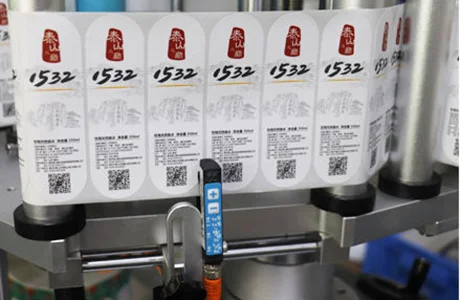

Label sensor

Germany sick, can accurately locate the label position.
