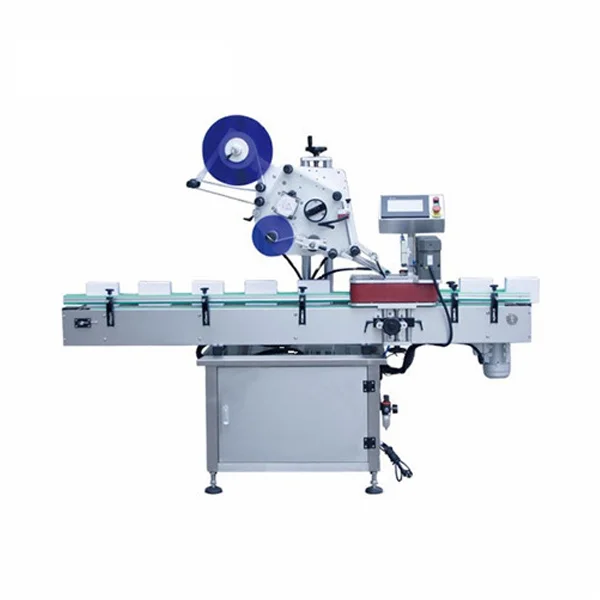

Automatic Flat Top Self-Adhesive Labeling Machine

Introduction

Automatic flat top self-adhesive labeling machine dapt with Siemens PLC control, Omron and LEUZE sensors or Keyence, Mitsubishi Servo motor or delta servo motor. It is Easy control and operation, working stably and high speed and accuracy. Automatic warning on failures, no bottle no labeling. The labeling machine is suitable for all kinds of objects with plane surface, such as boxes, bottles, cans, etc. Widely used in cosmetic, drinks, chemical, medical, food industry, stationery CD, various oil, etc, which can highly improve productivity and product quality.

The labeling equipment is for the top surface, flat surface in the labeling like food tray, oil, pharma box, wine, cosmetics box and so on. The machine with elegant design can be easily operated and maintained by the common worker, who requires no special training in operation this machine. Just give a simple adjustment to produce another product when you want to swap the different kinds bottle labeling.

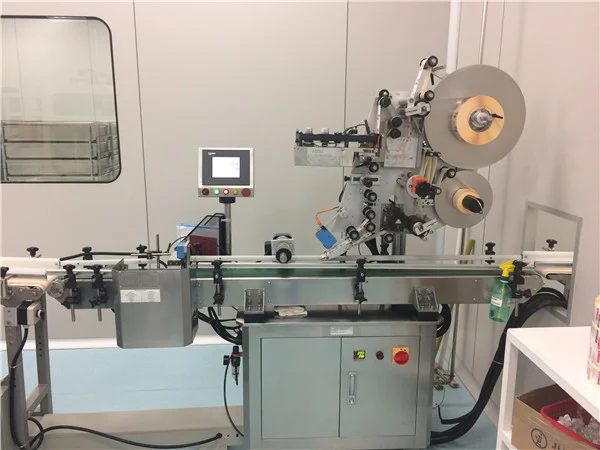

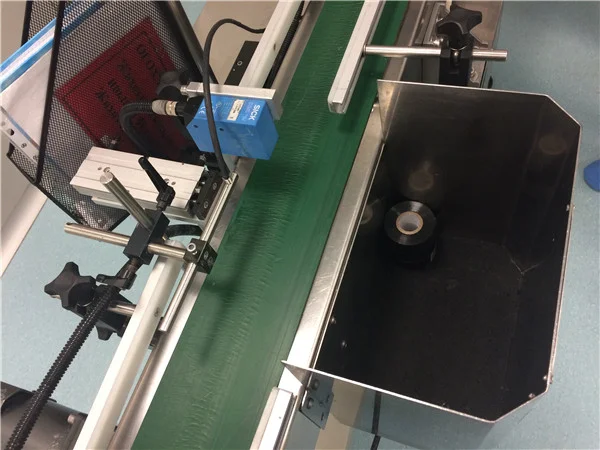

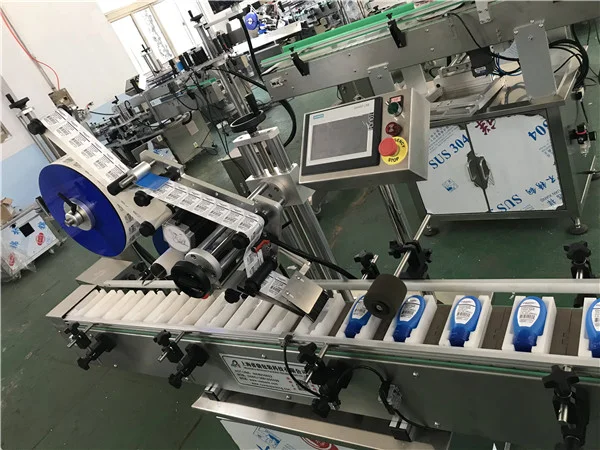

DescriptionList of Components Detail ImagesContact UsRelated Products
The automatic top flat labeling machine, which includes a housing base, a control device, a label paper module, a ribbon module, a printing module, an adsorption device, and an arm mechanism; the control device is arranged on the housing base; the label the paper module has a label supply shaft, a bottom paper recovery shaft, and a rotating shaft. The label supply shaft and the recovery shaft are connected to the label paper. The joint power device is controlled by the control device. The rotary shaft for label paper rotation; the ribbon module is located in the housing near the position of the label paper movement path, and has a ribbon supply shaft and a ribbon recovery shaft. The ribbon supply shaft and the ribbon recovery shaft are connected to the ribbon and powered by the device drives the action; the printing module is located on the housing and can receive the input information from the control device to print to the label; the suction device has a suction block on one side of the rotary shaft, and a suction surface underneath; the arm mechanism can drive the suction block lifting action; this utility model has better pasting efficiency and precise effect.

Automatic flat surface paging labeling machine can be applied to labels with variety of material, specifications and shape, corresponding products can be cards, plastics and paper which be stacked together. These products can be automatically divided into single sheets and then labeled. The products will include (not limited to ) plastic bags, paper, cupboard, paper bags, small plastic cards, etc. They can be automatically divided into pieces, the stickers are accurately affixed. VOID and bar-code stickers can be attached. There’s high accuracy with no bubbles inside the labels. It can identify product and activates different labeling heads according to different products automatically.

Parameter

Technical Parameters
Machine Size1600(L)×1000(W)×1250(H)mm
Output Speed20-100pcs/min depends on label and bottle size
Height Label Object30-280mm
Bag sizemax L60cm; max W 40cm; max H10cm
Label Height15-140mm
Label Length25-300mm
Pastes the sign precision±1mm
Roll inside76mm
Roll Outside Diameter300mm
Power Supply220V 0.8KW 50/60HZ
Power Supply2800(L)×1650(W)×1500(H)mm
Weight of Labeling Machine450Kg

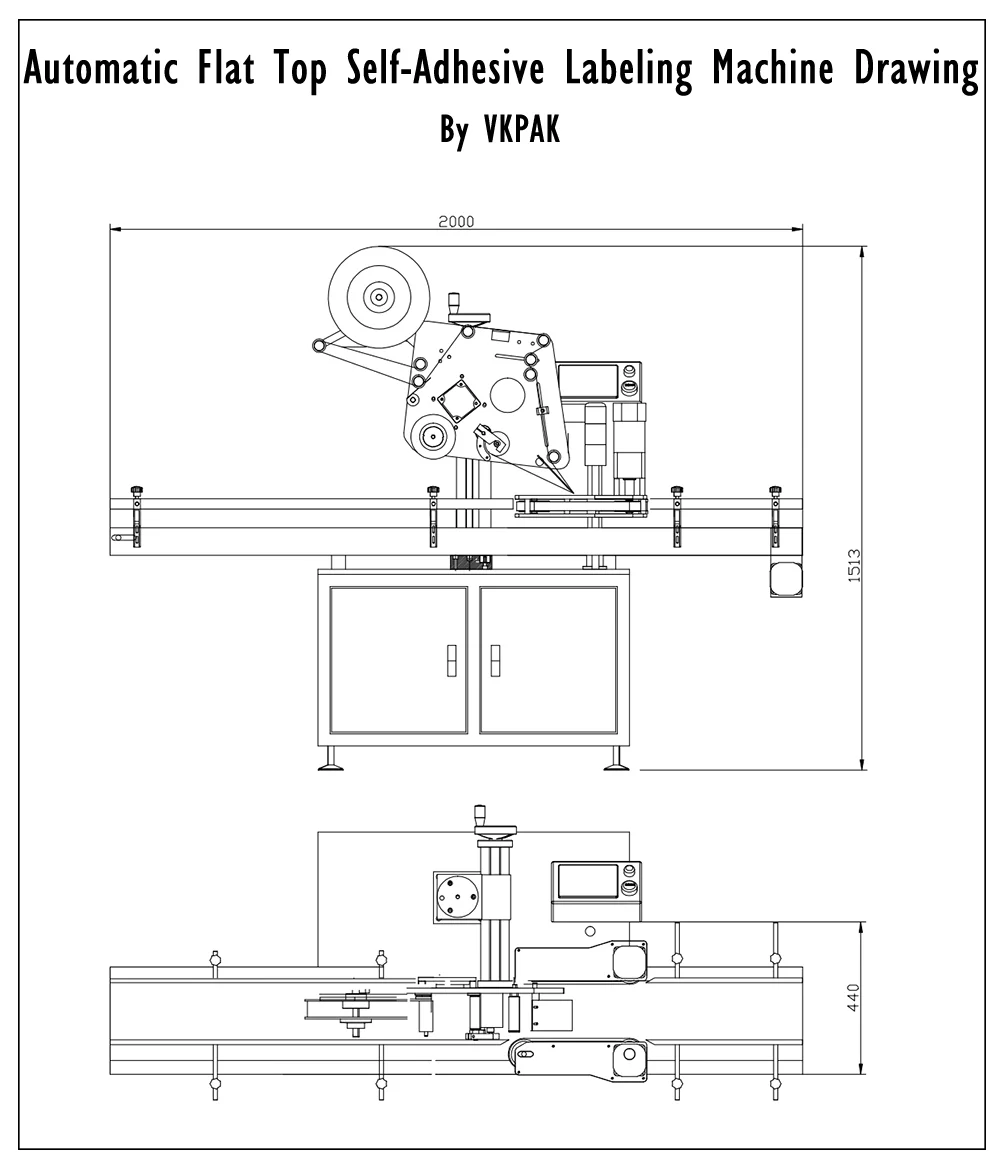

Automatic-Flat-Top-Self-Adhesive-Labeling-Machine-Drawing

Working Video

video play button
video play button

The top labeling machine is carefully designed to meet all the performance requirements and meets the performance requirements. The top labeler Parts are made from high grade raw materials including a sturdy stainless steel frame for strong support of the equipment. It works on various types packaging material therefore ideal for most industries including cosmetic packaging, health care products, retail food, baked goods and even beverages.

The top labeling equipment is easy to set up and run, as well as integrate into other production lines. In summary, the equipment is dependable, consistent and versatile in usage. It also has good energy saving features.

Application

Top label applicators are by far the most versatile equipment we offer. Whether you are labeling bakery goods, tops of jars, boxes, or lay flat goods like chipboard or books, this equipment is up to the task.

Our experts can help you select the right top labeling machine for your application at the right price.

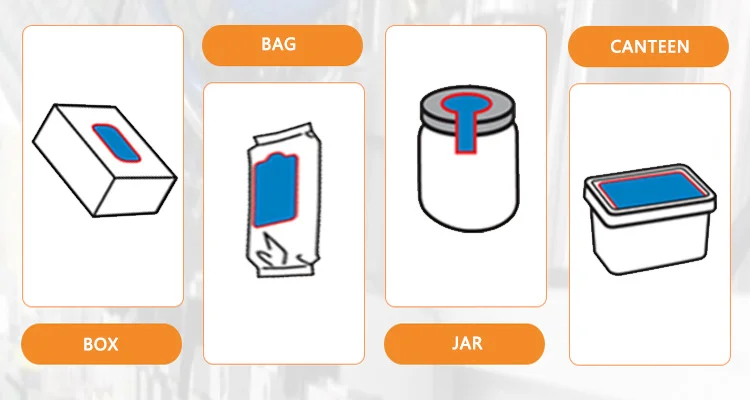

Automatic Flat Top Self-Adhesive Labeling Machine Application

Features

1. Labeling height and angles are adjustable.

2. Driven by stepper motor.

3. Can be connected with production line.

4. Conveyor belt and labeling speed are adjustable.

5. Controlled by Microprocessor system with LED screen, easy to read and set information.

6. Labeling speed is synchronized with conveyor belt.

7. Advanced sensor detection system makes precise labeling.

8. No repositioning or timing adjustment is necessary when changing bottles size.

9. Labeling counter, easy management.

10. Emergency button for safety.

11. Conveyor belt can be customized.

12. All are made of stainless steel and high quality aluminum alloy.

13. Easy maintenance and longevity.

NONameBrandQtyOriginal
1PLCSiemens1German
2Touch ScreenSiemens1German
3Frequency ConverterDANFOSS1Denmark
4Servo MotorPanasonic1Japan
5DriverDELTA1Taiwan

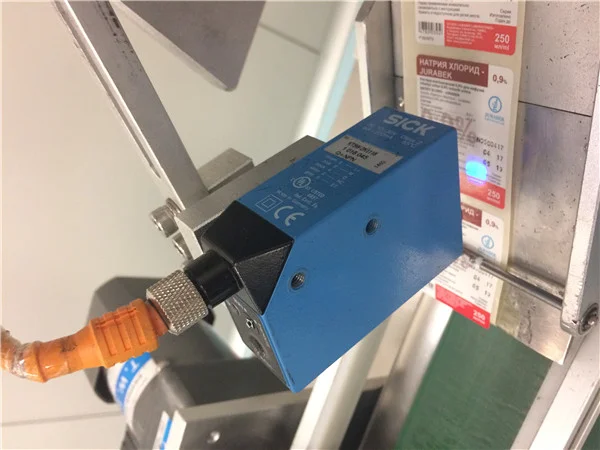

8Label sensorLEUZE1German
9Bottle sensorOmron1Japan
10Machine Construction material304 Stainless steel 3041
11MotorTCG1Taiwan
The labeler for top labeling is compact, versatile and reliable. It has been developed and designed based on the modular VKPAK technology kit, meaning it is quickly ready for use at all times. At the same time, no top labeling challenge is too great for this machine. No matter whether the product surfaces are smooth and flat or uneven and recessed, the labeler ensures a high throughput in all cases.

Suitable for various flat products such as plastic boxes, DDR, note book, aluminum foil bags, etc. It can be connected to production line to increase production.

Fully automatic top labeler manufactured by VKPAK for tills, clam shells, books, magazines or uneven surfaces such as mushroom tills. Outfitted with a spring loaded dispense edge, this machine will label just about anything.

We at VKPAK want to supply you with top quality machines that are still affordable.

With the top labeler we think we have achieved this again. A top labeling machine needs two equally important components: label head and conveyor. Success is only achieved if both work together. A top label applicator can be pushed on an existing conveyor and might just work fine. But if you connect the label head with the conveyor mechanically as electronically, you now have a top labeler that is solid, sturdy and easy to use.
