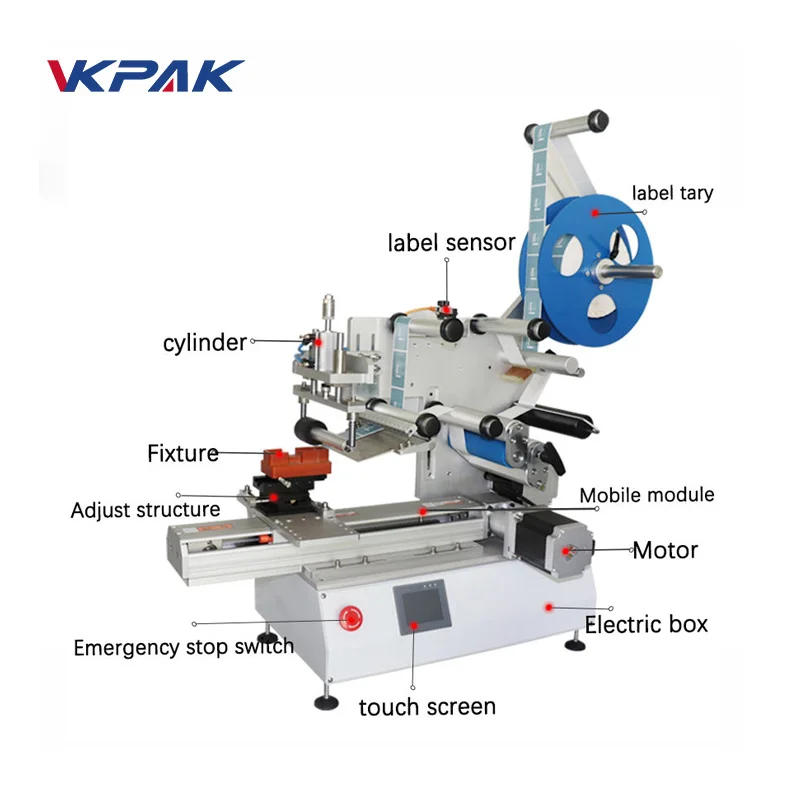

VK-T803 Semi Automatic Labeler For Surface Labeling

Introduction

VK-T803 semi automatic labeler is suitable for all kinds of specifications of square, flat, curved and irregular products on the surface labeling, such as packaging boxes, cosmetic flat bottles, convex boxes.

VK-T803 can achieve plane full coverage labeling, local accurate labeling, vertical multi-label labeling and horizontal multi-label labeling, can adjust the spacing of two labels, widely used in packaging, electronic products, cosmetics, packaging materials industries.

VK-T803 has additional functions to increase: configuration code printer or ink-jet printer, when labeling, print clear production batch number, production date, effective date and other information, coding and labeling will be carried out simultaneously, improve efficiency.


DescriptionMachine DetailsWorking VideoContact UsRelated Products
This machine is suitable for labeling on the upper plane, arc surface and concave surface of products. The labeling accuracy is as high as (+0.5mm). It is mainly used for precise labeling of electronic components and digital products, such as toy, SD card, mobile phone battery, FPC, mobile phone charger, etc.

To step-up the labeling operation in your production facility, you need a semi-automatic from VKPAK. There are motorized semi-automatic bottle labelers and automatic labeling systems for round containers, oval and flat containers, flat surfaces, and thin, flat surfaces. This equipment makes it possible to label nearly any kind of product or package.

Our semi-automatic bottle labeler machines are compact in design and made for table top use. They accommodate various bottle sizes and are operated with a foot pedal switch. VKPAK full automated labeling systems are available in different models for a wide variety of uses. Some models support both English and Spanish language and can work with both opaque and printed labels. These labeling machines use self-adhesive, pressure sensitive labels, and they can be fed manually or integrated into an existing production line. They can label different materials, including metal, PVC, glass, PP, PET, HDPE, and ceramics. Other models can apply 1 or 2 labels onto round, flat, or oval surfaces. There are also machines that are designed for flat surfaces like food trays, boxes, packets, envelopes, and cartons. If you need to label thin, flat surfaces such as postcards, promotional material or envelopes, there is a VKPAK labeling machine specifically designed for those types of items.

A labeler produces a consistent, professional product very quickly and easily. Certain automatic labelers can produce up to 200 pieces per minute, depending on the type of product and the feed speed.

VK-T803 Semi Automatic Labeler For Surface Labeling

Machine Description:

The VK-T803 adjustment method is simple and only needs to move the height of the press wheel, the position of the label sensor and the slide sensor. The adjustment process is less than 10 minutes, and the labeling accuracy is high, and the error is difficult to be seen by the naked eye. It is the best choice for products with less mass production.

VK-T803 floor space about 0.50 stere.

Machine Support Customization.

ParameterDate
Label SpecificationAdhesive sticker, transparent or opaque
Labeling Tolerance±0.5mm
Capacity(pcs/min)15~30
Suit bottle size(mm)L:20~200 W:20~150 H:0.2~120;can be customized
Suit label size(mm)L:15-200;W(H):15-130
Machine Size(L*W*H)≈960*560*930(mm)
Pack Size(L*W*H)≈1180*630*980(mm)
Voltage220V/50(60)HZ;Can be customized
Power660W
N.W(KG)≈45.0
G.W(KG)≈67.5
Label RollID:Ø76mm; OD:≤240mm
Air Supply0.4~0.6Mpa

Main Features

  • Manual quick discharge, higher efficiency. Automatic labeling, automatic secondary labeling, making the label sticker more firmly.
  • Easy to operate, the actions of label peeling, label feeding, label suction, labeling and label covering are automatically completed, and the labeling process can be completed by manual loading and unloading;
  • Safety, the transmission parts are wrapped, and the circuit and the gas circuit are arranged separately to avoid abnormal occurrence and safer use;
  • High stability, using the electronic control system composed of PLC + subdivision stepper motor + optical fiber sensor, the equipment is stable and supports long-term work;
  • Optional automatic scale turntable device can significantly improve the efficiency of loading and unloading, and improve the efficiency of labeling;

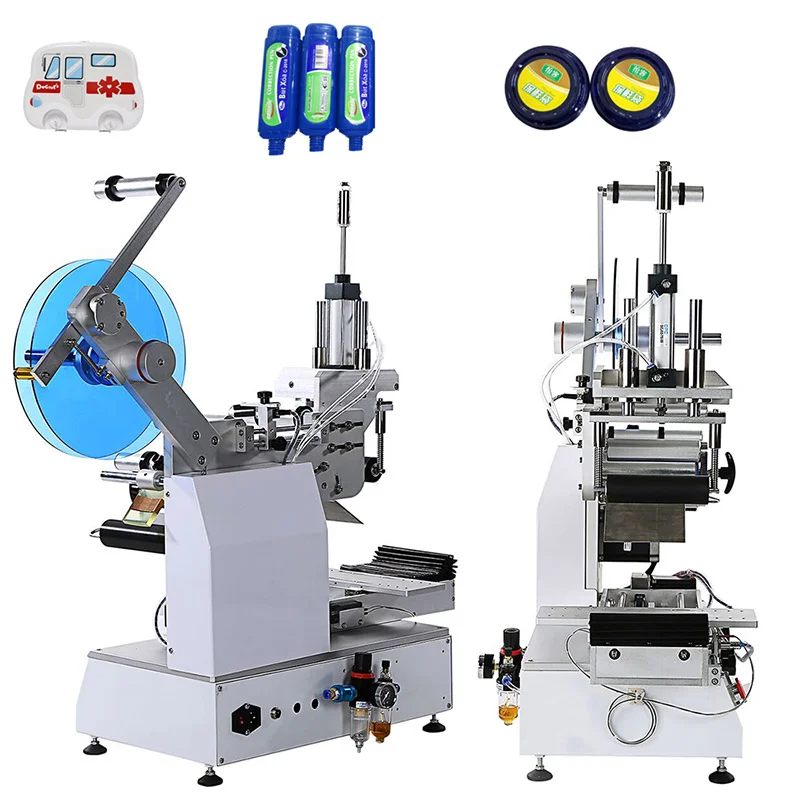

VK-T803 Semi Automatic Label Applicator Machine For Surface Labeling Application

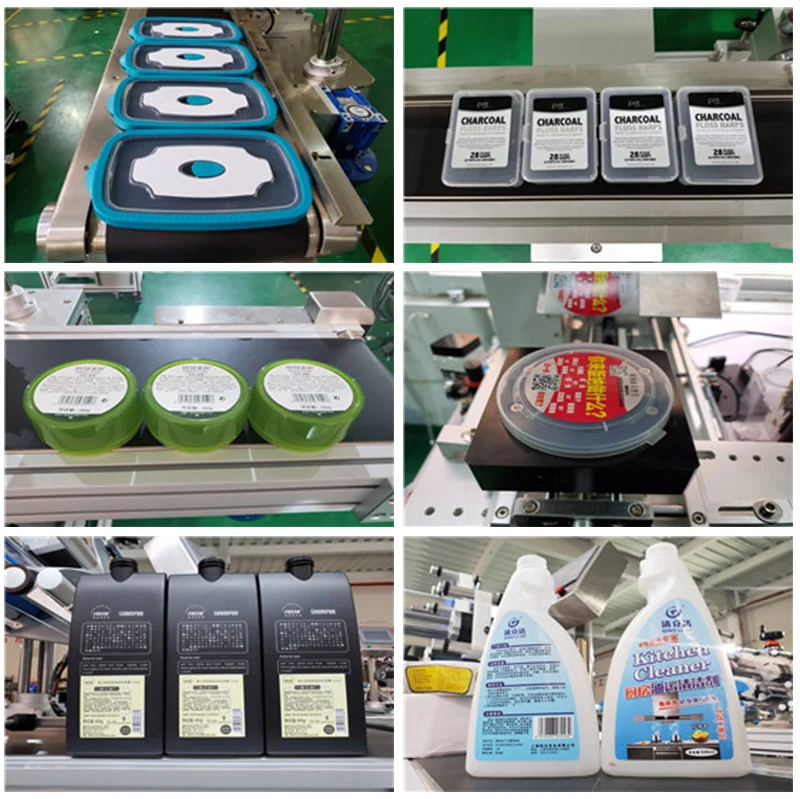

Application

① Applicable labels: sticker label, film, electronic supervision code, bar code.

② Applicable products: Products that are required to be labeled on flat, arc-shaped,round, concave, convex or other surfaces.

③ Application industry: Widely used in cosmetics, food, toys, chemical, electronics, medicine and other industries.

④ Application examples: shampoo flat bottle labeling, packaging box labeling, bottle cap, plastic shell labeling, etc.

VK-T803-Semi-Automatic-Label-Applicator-Machine-For-Surface-Labeling

Work Process

1. Press the switch after the product is already put in, the machine clamps the product.

2. And next the slide moves backwards and next forwards , when the sensor senses that the slide has reached a certain position, the machine sends out the label.

3. Then the wheel presses the label onto the product until one label is all pulled out.

4. Last, release the product and the machine will automatic restore, a labeling process is completed.

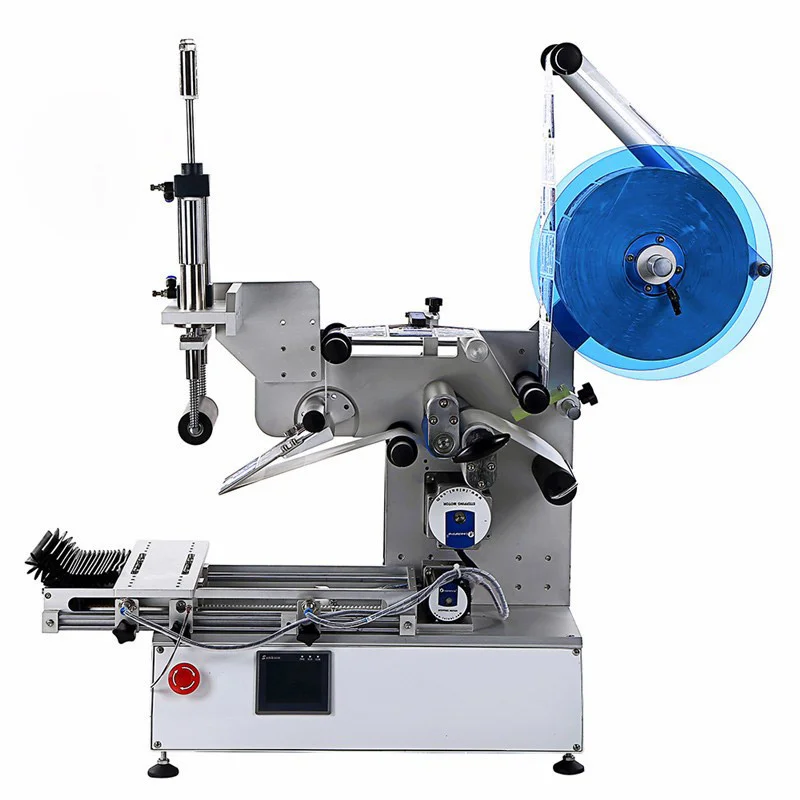

Label Production Requirements

Label Production Requirements:

1. The gap between the label and the label is 2-3mm;

2. The distance between the label and the edge of the bottom paper is 2mm;

3. The bottom paper of the label is made of glassine, which has good toughness and prevents it from breaking (to avoid cutting the bottom paper);

4. The inner diameter of the core is 76mm, and the outer diameter is less than 280mm, arranged in a single row.

The above label production needs to be combined with your product. For specific requirements, please refer to the results of communication with our engineers!

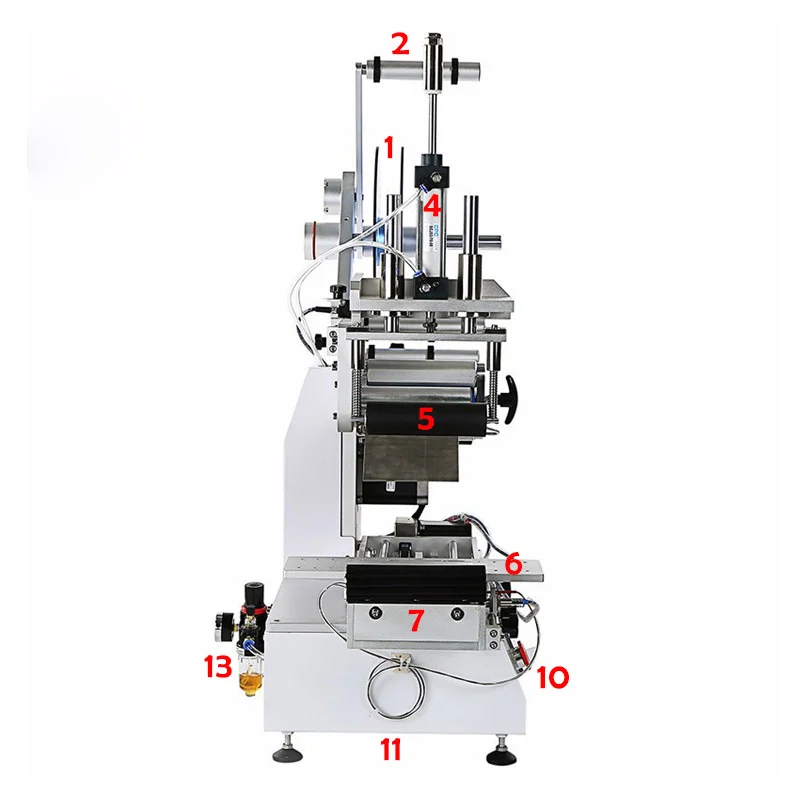

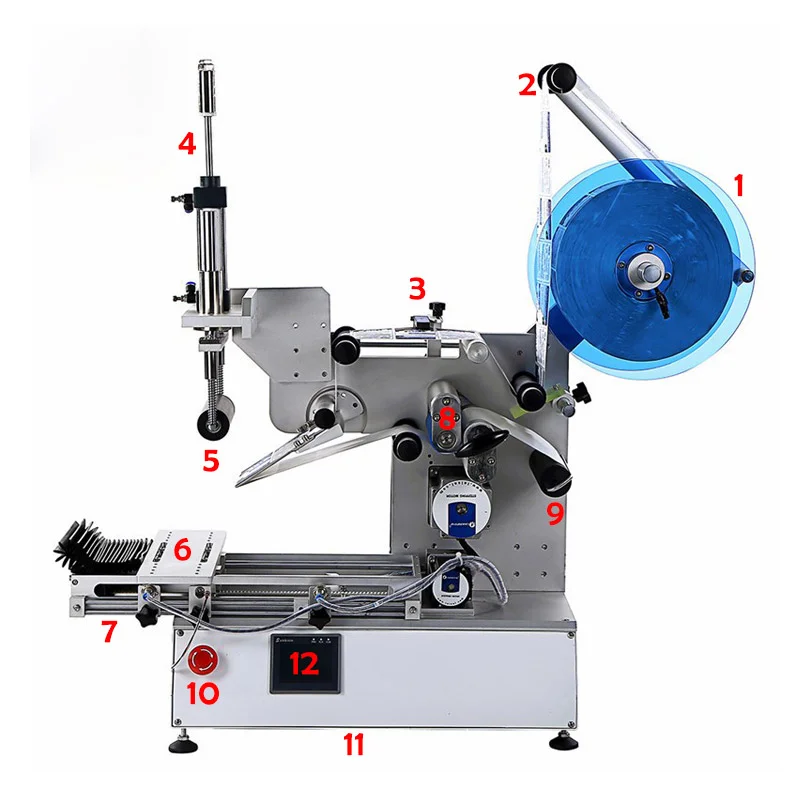

No.StructureFunction
1Label Trayplace the label roll.
2Rollerswind the label roll.
3Label Sensordetect label.
4Strengthening Cylinderdrive the strengthening device.
5Strengthening Devicesmooth label while labeling and make it stick tight.
6Product Fixturecustom-made,fix product while labeling.
7Conveyordriven by a motor,transmit product while labeling.
8Traction Devicedriven by traction motor to draw the label.
9Release Paper Recyclingrecycle the release paper.
10Emergency Stopstop the machine if it runs wrong.
11Electric Boxplace electronic configurations.
12Touch Screenoperation and setting parameters.
13Air Circuit Filterfilter water and impurities.
VK-T803-Details

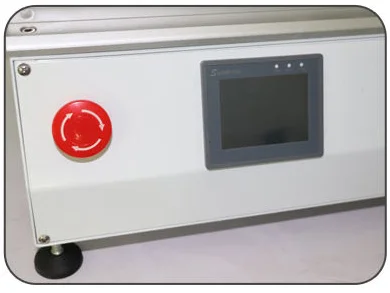

Intelligent touch screen, imported PLC, artificial intelligence to realize human-computer interaction
VK-T803-Details

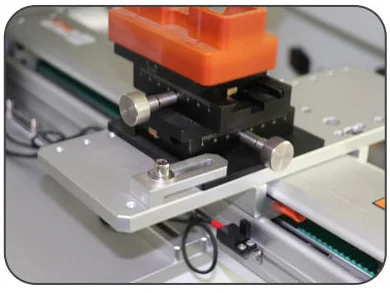

The adjustment base adopts a fine-tuning base, marking the scale line, and the product position can be fine-tuned within the millimeter range to achieve precise labeling.
VK-T803-Details

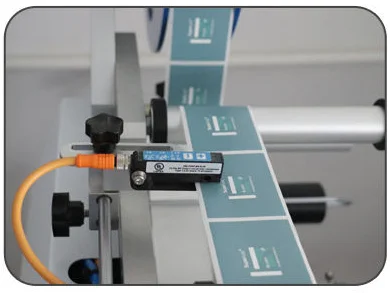

Imported German Sick electric eye, accurate detection of label position.
VK-T803-Details

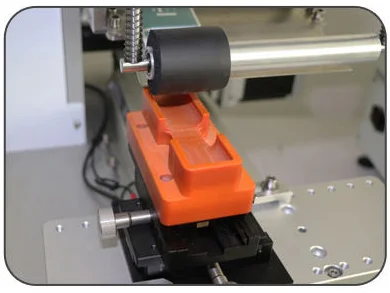

The labeling structure, the fixture part fixes the product, and the pressing part effectively guarantees the labeling effect without bubbles.
VK-T803-Details

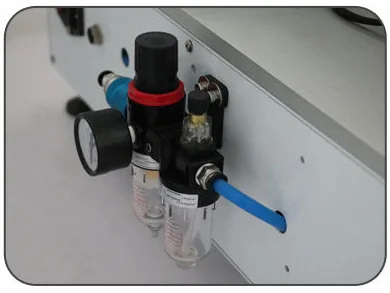

Filter, filter impurities and moisture in the air. can effectively protect the cylinder
VK-T803-Details

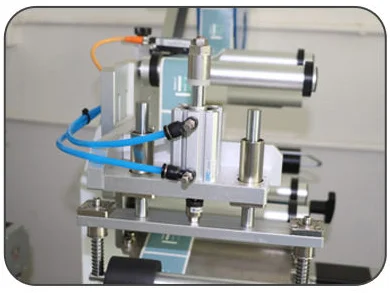

The air cylinder can control the lifting of the labeling head without manual operation.
VK-T803 Semi Automatic Label Applicator Machine For Surface Labeling
video play button
video play button
VK-T802 Semi Automatic Flat Labeling Machine

VK-T802 Semi Automatic Flat Labeling Machine

Introduction VK-T802 Semi Automatic Flat Labeling Machine is for various kinds of products labeling , there is a large adjustable range for the bottle and lid. Suitable for all kinds of products which are flat. The labeling method is applied to realize the labeling of various work pieces...

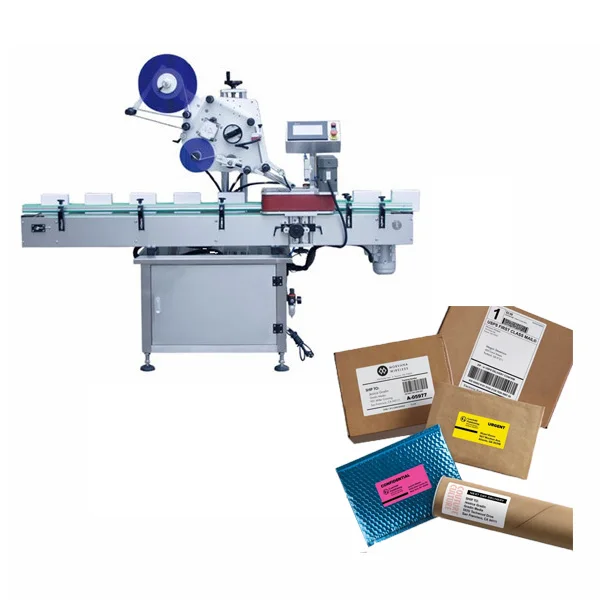

Box Labeling Machine
