Automatic Gravity Filling Machine

Introduction

This Filling Machine is gravity type filling machine which is suitable for filling thin fluid.

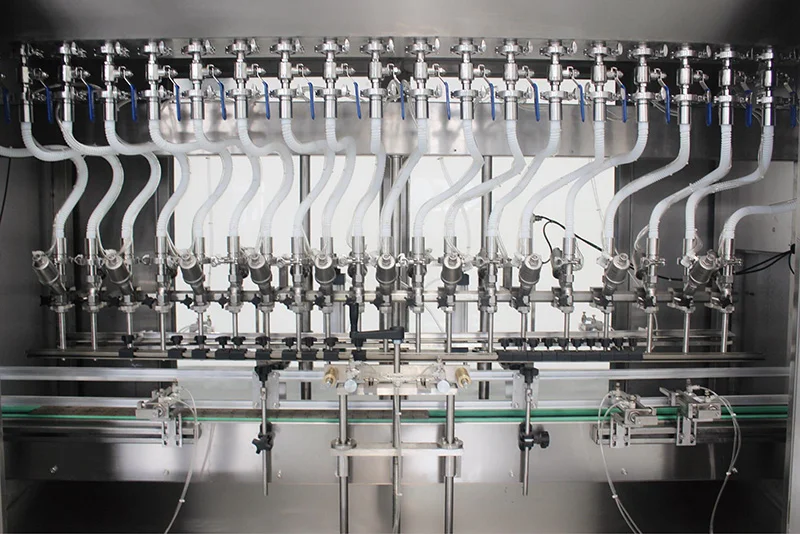

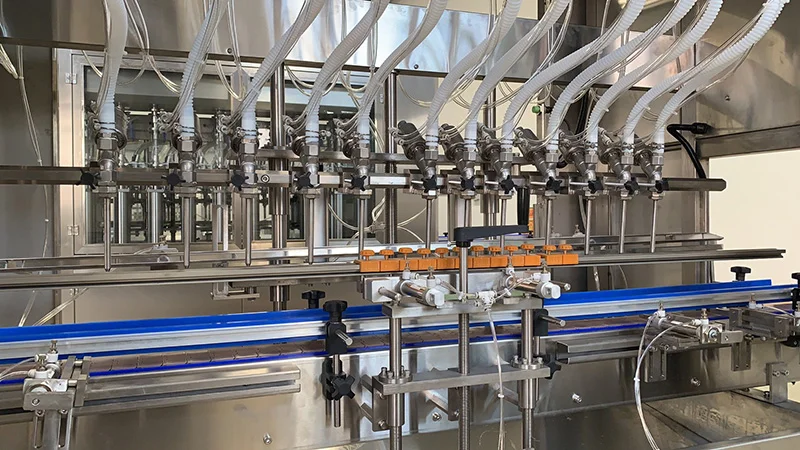

The machine is made by in-line structure , filling head quantity can be custom-made according to different production capacity such as 6/8/10/12/16 /20 heads.

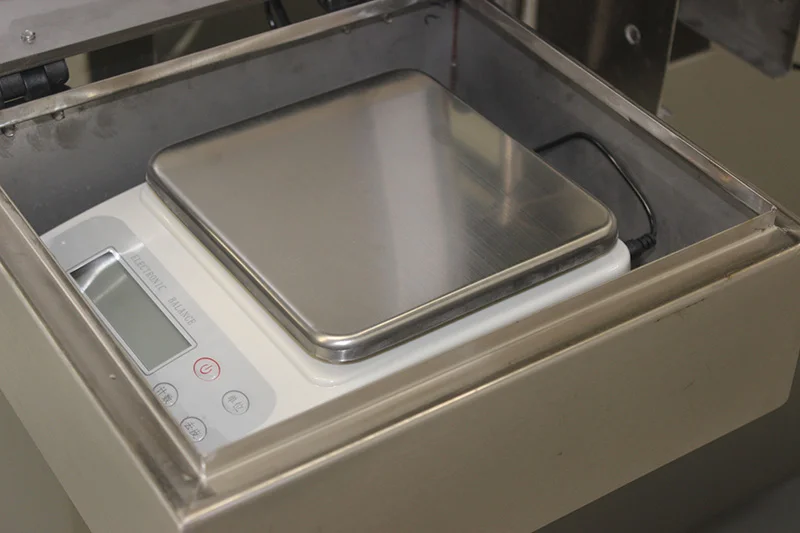

The filling volume is controlled by filling time, with weight feedback of each filling nozzle to PLC to assure good filling accuracy.

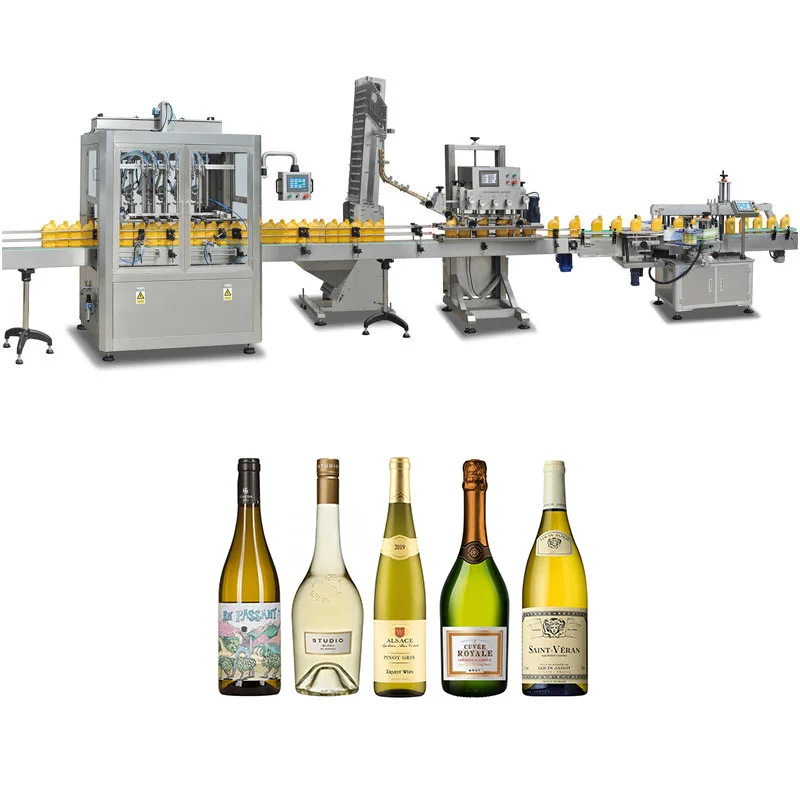

It is economical filling machine for filling product like glass cleaner, wine, vinegar , water, juice etc in foodstuff, cosmetic and daily chemical industries.

AdvantageFeaturesTechnical ParameterMain ConfigurationDetail ImagesWorking VideoContact Us
1. All pipe use quick-change connector.

2. Height and space between filling heads can be changed quick and easy to operate.

3. All filling valve use ESG valve instead of traditional valve by general manufacturer.

4. All filling heads can be diving from the bottom of bottle to start filling.

1.1 Suitable material: Wine, beverage,vinegar, daily chemical and something that are low viscous,especially for the foamy liquid.

1.2 This Vertical filler is a high-tech filling equipment integrating on the PLC microcomputer programmable control, and photo electricity instruction pneumatic action.

1.3 The machine suits for the filling of different sizes of vessel may change the filling sizes within a few minutes. Short filling circle, high production capacity.

1.4 User may choose the filling volume and decide the filling heads per own production capacity.

1.5 The precision time of the pneumatic valve filling may set to 0.01, second, can make the measurement precision control within ±1%, to decrease unnecessary material loss and enhance the economic efficiency.

1.6 Each filling-head’s measurement may be individually adjusted to realize the same filling measurement.

1.7 The machine set such function: having counting program of bottle-feeding, doesn’t fill as there is not bottle or the counting doesn’t attain a predetermined position, can start filling only when the counter records that the bottle number is same as the setting filling number.

1.8 More or less of the filling volume, may initially adjust to the needed filling volume, then micro adjust, can get the ideal filling measurement precision.

Nozzle NumberPCS681012
Filling volumeMl100-5000
Production capacityBottle/h1000-3000pcs(Depends on filling volume)
Quantitative error%100-1000ml:≤±2% , 1000-5000ml:≤±1%
VoltageVAC220V 380V ±10%
Consumed powerKW1.51.51.51.5
Air pressureMPA0.6-0.8Mpa
Air consumptionM3/min0.811.21.2
NO.ItemBrand

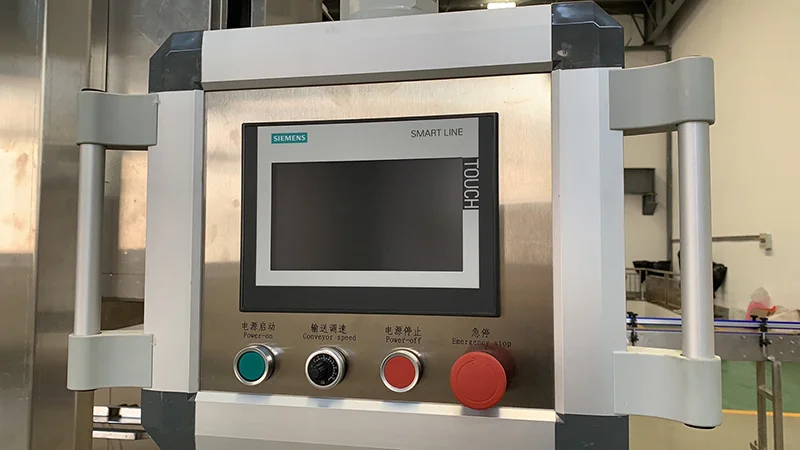

1Touch ScreenKINCO
2PLCMitsubishi
3CylinderAIRTAC
4Frequency ConverterSchneider
5ButtonSchneider
6RelaySchneider
7Solenoid ValveAIRTAC
8SensorSICK
