Automatic Shrink Sleeve Labeling Machine

Introduction

Shrink sleeve labelers have flexible film shrink sleeve labels placed onto bottles using a sleeve applicator or sleeve labeler. The sleeves are then held in place by shrinking them using hot air or steam from a heat tunnel. VKPAK manufactures a variety of shrink sleeve labelers / sleeve applicators and heat tunnels for both full body sleeve labeling and tamper evident bands.

Our shrink sleeve labeling machines series use the newest shrink technology with large control touch screen. The humanize operation, the mainframe can be easy adjusted up and down with automatically. The labeling machine has been accurately designed, even use this machine with high speed for a long time, machine running is still very stable and smoothly.

Automatic sleeve labeling machine is suitable for kinds of bottle types, for example: round bottle, square bottle, flat bottle, curve bottle and cup-shaped.


DescriptionConfiguration ListSteam TunnelSteam GeneratorContact UsRelated Products
Our shrink sleeve labeling machines series use the newest shrink technology with large control touch screen. The humanize operation, the mainframe can be easy adjusted up and down with automatically. The labeling machine has been accurately designed, even use this machine with high speed for a long time, machine running is still very stable and smoothly.

We have many models with all kind of speed selection from 150/minute to 600/minute and is suitable for wide range, it can be modified according to the package’s shape. We always can meet your all kind of requirement no matter it is for cap or bottle. The machine is suitable for pharmaceutical, food industries, health-food, medicine, juice, milk, drink...etc.

Component

Driving unit:

Synchronized transmission and drive by gear with one belt. The change of transmission belt will be finished quickly. Compared to the type of traditional multilayer whose change and maintain need more than six hours, its maintenance is easy and maintain is simple, so it doesn’t influence production.

Cutter head unit:

The new style cutting knife droved by servo motor, with high speed, more stable and precise, shrinks perfectively. Synchronous locating device enables the tolerable error to1mm. Unit cutter head plane design in China which applies to the container of D30mm—D130mm. You never need to change or debug it. Cutter head original transducer is inside the cutter head and when you take down cutter head, you do not need to correct the synchronous belt. It also has unique light touch human-machine screen, that means, auto search original location as well as safety and convenience which is ahead of other congener products.

Label feeding unit:

Single material shelf with reasonable height in order to make it convenient to install label. It adopts rotary potentiometer which enable the label feeding stable and fluent and avoid the error label length, label block and other problem when label feeding servo convey the label. It will stop automatically and give alarm light and also display on the touch screen.

Clean down unit:

Adopt with motor coordinating with double circular arc synchronous belt makes clean down plastic core-rubber-tires synchronously and ensures the label casting stably.

Bottle carrying system:

Adopted with mechanical transmission to drive the positioning belt on both sides. While changing the whole bottle carrying unit, the down and up, width are all controlled by one hand wheel aiming to synchronously and swiftly adjust.

Machine head up and down unit:

It adopts motor to up and down which enable the operation more convenient.

Electrical Configuration

It adopts PLC programmable controller, imported servo motor, servo driver, frequency converter and transducer; also, it adopts the positioning module to ensure the casting label precise, rapid and stable.

Parameter

Production capacity: 9000b/h(take label length 80mm bottle type 500ml as norm);

Label specification: φ30~90mm;

Bottle & can diameter: φ28~90mm;

Label length: 30~250mm;

Label thickness: ≥0.035mm;

Label material: PVC/PET/OPS;

Main machine power: 4KW(220V,50HZ)

External size: 2100×1100×2150mm;

Weight: 600kg

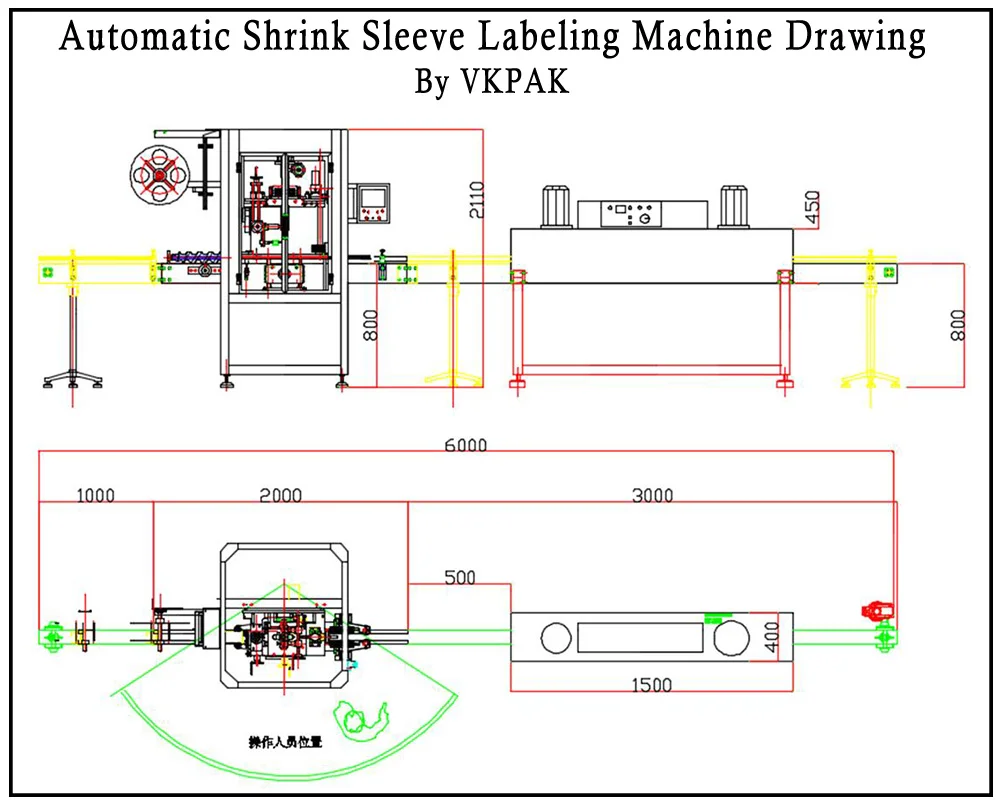

Automatic Shrink Sleeve Labeling Machine Drawing
Automatic Shrink Sleeve Labeling Machine Drawing

Features

1. Whole machine agreat quantity of stainless steel and good-quality ulminium alloy ,reasonable fracture、compact,convenient to adjust;

2. Shrinkage film volume label rack, match with adjustable device, convenient to adjust according to differ volume label 5″~10″paper tube.

3. Simply installation, then can convenient for square and round bottle.

4. No need of instrument, rotary mechanism is convenient to adjust, apply to differ bottle type.

5. Unique sleeve labelling method, adopt to pressing sleeve labelling method, not only convenient but also reasonable.

6. Auto controlling feeding system, level-off shrinkage film materials and regulate/adjust strain simultaneity.

7. Unique design knife plate, within specification scope, can avoid changing knife base, knife changing is quick and conveniently.

8. Middle guide-pole clip system, mould changing is more quick, no need any instrument.

9. Label location system, can promote and demote in-phase adjust location according to specific bottle type requirement.

10. Adopt to Japanese import servo system and high-sensitivity photoelectric, label cutting precision is highly.

11. Stainless steel electric equipment controlling case, controlling adopt to Japanese OMRON PLC.

12. Adopt to advanced man-computer Interface auto controlling technology, key electric component all adopt to international famous industrial brand.

Working Video

video play button
video play button

Consumable Spare Parts List

ItemSpecificationQuantityUnitRemark
Drive belt5M-500-15W1pcsfree
Cutter belt5M-450-15W1pcsfree
Brush belt114XL*12W1pcsfree
Bottle belt5M-230-15W1pcsfree
Cutter blade1pcsfree
Brush1pcsfree
Bearing
6002ZZ2pcsfree
6001ZZ2pcsfree
635ZZ2pcsfree
6802ZZ2pcsfree
6902ZZ2pcsfree

How Do Shrink Sleeve Labeling Machines Work?

Commonly used for food, beverage, or personal care items, shrink sleeve machines work by applying heat to shrink sleeve labels. The heat causes it to tightly conform to the body of the product’s packaging, creating an eye-catching label that can easily be recycled.

There are multiple types of shrink sleeve machines. The right one for your business depend on your industry’s demands.

Benefits of Shrink Sleeve Packaging

Besides high-speed production and reduced operating costs, switching to shrink sleeve labels improves your product. Here are a few ways this occurs:

  • Shrink sleeve allows for the product’s container to be fully recycled after use
  • Shrink sleeve labels can be used to create tamper evident band for easy product seals, empowering your customers to shop safely
  • Enables creativity to shine through the product’s packaging with 360° labeling
  • Labels can fit a wide range of product packaging sizes and shapes

VKPAK offers a full range of heat shrink sleeve label applicators for low, medium, and high speed production environments.

All VKPAK shrink material applicators are capable of performing up to five key sleeving applications:

  • Full body sleeves
  • Full body over-the-cap sleeves
  • Partial body sleeves
  • Tamper evident bands
  • Multi-packs

VKPAK shrink sleeve label applicators and systems are used in a wide variety of industries including fluid milk, craft beer, ready-to-drink beverages, cosmetics, home care products, and personal care products.

Their flexibility and reliable performance make them one of the best values in the shrink sleeving industry.

NONameBRANDMANUFACTURER
1SUS304 stainless steelSOUTH KOREA
2Electric motorTWTTAIWAN
3bearingNSK  MNB  EZO  IJKJAPAN
4Servo motorPanasonicJAPAN
5Servo DriverPanasonicJAPAN
6PLCPanasonicJAPAN
7InverterPanasonicJAPNA
8Touch screenWEINVIEWTAIWAN
9ContacorSCHNEIDEFRANCE
10TransducerSUNXJAPAN

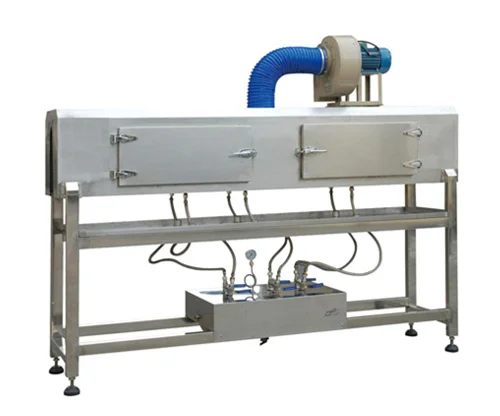

Steam Tunnel
1. New type bottle label steam shrinkage tunnel, label shrinkage steam machine, label steam thermo shrinkage tunnel, label steam tunnel, thermo shrinkage effciency greatly hence; regarding differ and abnormal round,square,flat bottle ect bottle type, adjustment and maintain is convenient, shrinkage is flat.

2. Steam eject type adopt to Steam drums design type, adjustable steam diversion kerb system, tube is smoothly and not occupy room, eject exit mouth each side divide three passage, each passage height or low, fore and after gas output volume all can adjust, up to max perfect efficiency .

3. Low-pressure Steam drums adopt to no-seam steel tube,each connected tube use stainless steel tube quick connecter, easy to discharge and install.

4. Whole machine outter sheel adopt to stainless steel SUS304, save energy and accord with foodstuff safe criterion.

5. Bottom stainless steel water plate concentrate cool condensation water, can exculde via tube connected, working cirumstance don't affect, case body vision window fore and after each has two.

6. Whole machine adopt to water-proof design, made from stainless steel, easy to manipulation and maintain.

Technogical parameter:

Steam use volume: 24Kg/hr
Steam pressure: 0.3~0.45MPa
External size: 1800×450×1700mm (L×W×H)

Note: VKPAK also provides electro-shrinking channels, our engineers will choose the most suitable shrinking channel according to the customer's bottle or other container shape and label position.

Name1.5m Electric Shrinking Furnace
Input power(kw)18KW
Power(v)380V 50HZ 18KW
Speed(m/min)0-10m/min
Machine size(mm)L1500*W400*H1650
Weight(kg)110

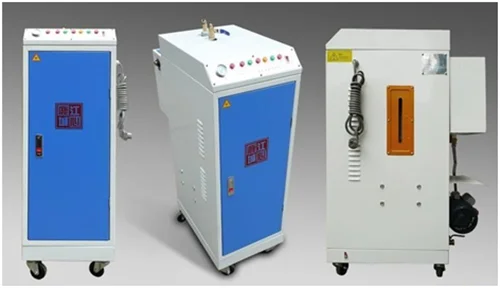

Steam Generator
Small electric thermo steam bolier fracure compact and small cube, machine inner set auto water replenishing bump, and set auto water-level controlling, pressure controlling, can work continually.

Bolier water cubage low 30 litre, evoid complex annual YSR

Boiler water volume is small, working pressure is highly,

Steam temperature is highly, can effeciency solve many users high-pressure steam requirement.

Steam output valve not only can connect hard tube but also can connect anti-high temperature steam gule tube, agility,effeciency save use room.

Whole machine occupy area is small,move and use is very convenient. procedure.

Input Power SuppyФ3 380V
Input Power18KW
Steam Pressure0.25-0.4Mpa
Vapor Generation Value28Kg/h
External Dimension600*550*1200
Weight96Kg
