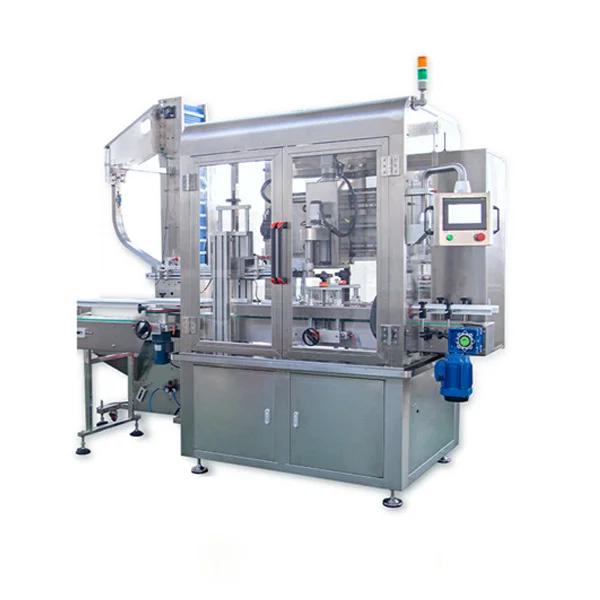

Linear Tracking Bottle Screw Capping Sealing Machine

Introduction

The automatic tracking capping machine is designed base on inline pick and place capping machine, it solve the low capacity of the inline pick and place capping machine, its movement is control by Motion Controller more efficient and accuracy than PLC, the capping heads are moving tracing with the bottles going when capping. it can be equipped with one or two capping heads, capacity is from 40b/m to 70b/m without thinking the size of the bottle and cap (base on 100ml to 5000ml bottle).

This machine has the advantage of bottle non-stop working, so after the filling machine, even almost full of liquid inside, the liquid will not splash out when capping. It applies high efficient servo system, including the belt servo, horizontal moving servo, up and down moving servo, and servo capping head system Automatic gripping and capping are completed by the servo motor, and the movement is precise and the speed is fast.

Model: VK-TC

View Video
DescriptionMachine DetailsWorking VideoContact UsRelated Products

Main Featrue

1. The servo system + torque module controls the capping head, and the cap tightness is freely set.

2. The whole machine is made of 304 stainless steel material without any dead corner.

3. The cap feeding system is adapt Cap elevator which can storage around 500caps at a time.

4. For different size of bottle and cap, only need adjust no need change parts excluding the capping head.

5. No Liquid Shakes Out---Bottles no need to stop for capping

6. Wide Application--- fast switching for various caps

7. High success rate cap loading---pick & place capping

Parameter

No.ModelVK-TC
1Speed0-80pcs/Min
2Cap TypeScrew cap
3Bottle Diameter30-160mm
4Bottle Height50-280mm
5Cap Diameter18-80mm
5Power3.5KW
6Air Pressure0.6-0.8Mpa
7Voltage220V/380V, 50Hz/60Hz
8Weight800KG
9Dimension2200mm*1400mm * 2150mm

Application

Linear-Tracking-Bottle-Screw-Capping-Sealing-Machine-Application

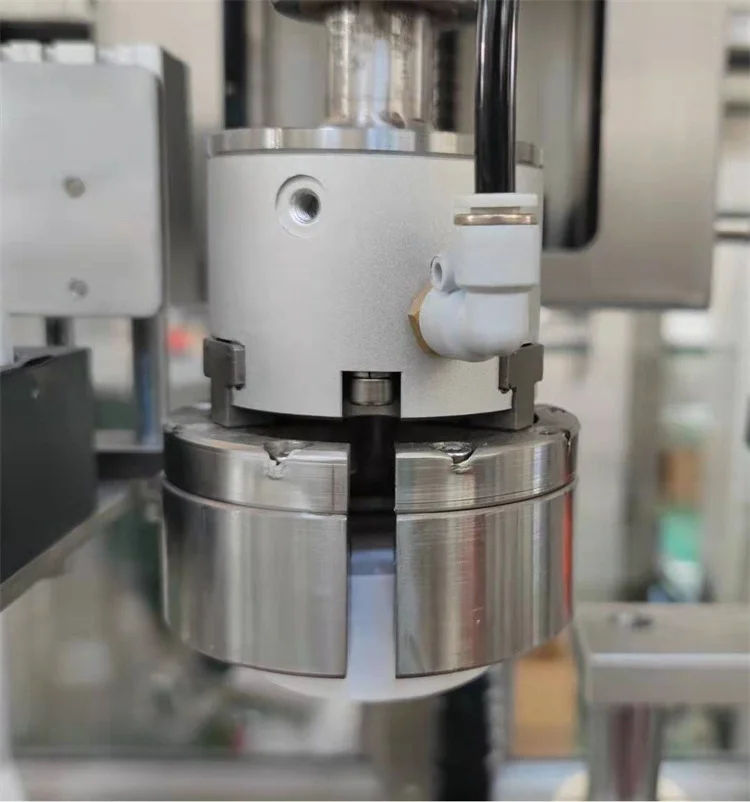

Capping Heads

Capping Heads

1. Control capping position and torque

2. Pick and place capping,high success rate cap loading

3. Servo motor control

Choose the most suitable capping head according to the type of cap (chuck type capping)

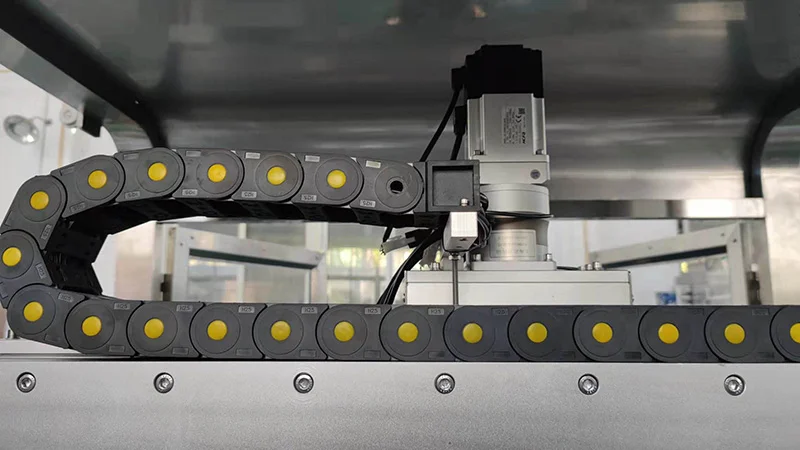

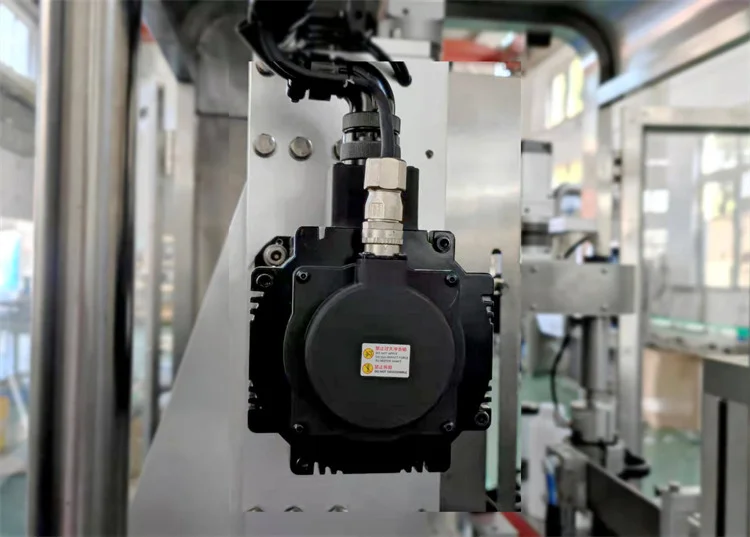

Servo Motor

Servo Motors

1. Control left and right tracking;

2. The machine uses servo motors in many places to ensure precise control.

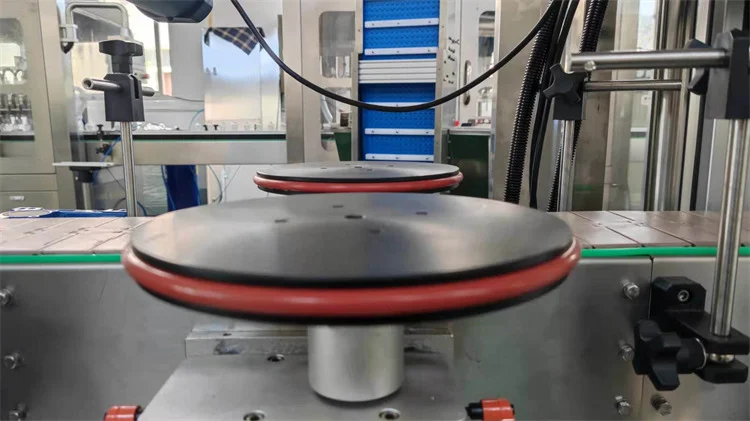

Bottle separation mechanism

Bottle separation mechanism

Control the distance between bottles

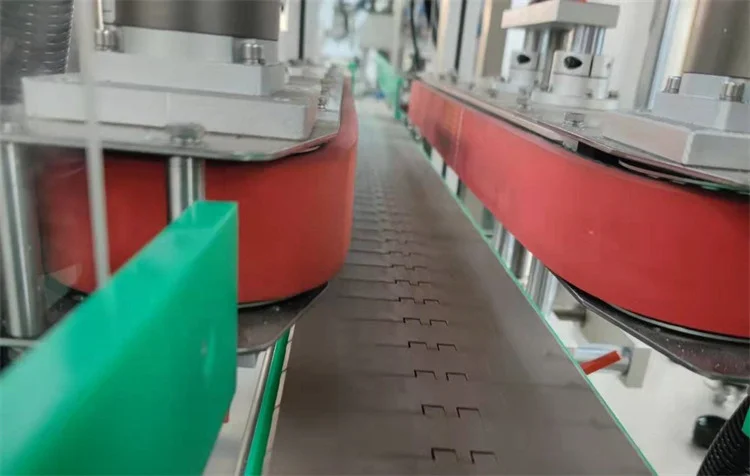

Two-layer Bottle Clamp Belt

Two-layer Bottle Clamp Belt

The double belts height is adjustable to fit differnet sizes bottles.and the angle is adjustable according to the bottle shape, more stable. Speed is frenquecy contolled to match the conveyor and capping speed
