Edible Oil Filling Machine

Summary

Edible oil is plant, animal, or synthetic fat used in frying, baking, and other types of cooking. Edible oil is typically a liquid at room temperature, although some oils that contain saturated fat, such as coconut oil, palm oil and palm kernel oil are solid.

Consumable oil products such as coconut and peanut oils require different types of edible oil filling equipment based on their thickness. VKPAK carries plenty of liquid packaging machines intended for packaging edible oils and many other water-thin to more viscous liquid products. We offer a variety of filling machines along with other equipment such as conveyors, cappers, and labelers to form a complete packaging assembly that offers consistent efficiency.

View Video

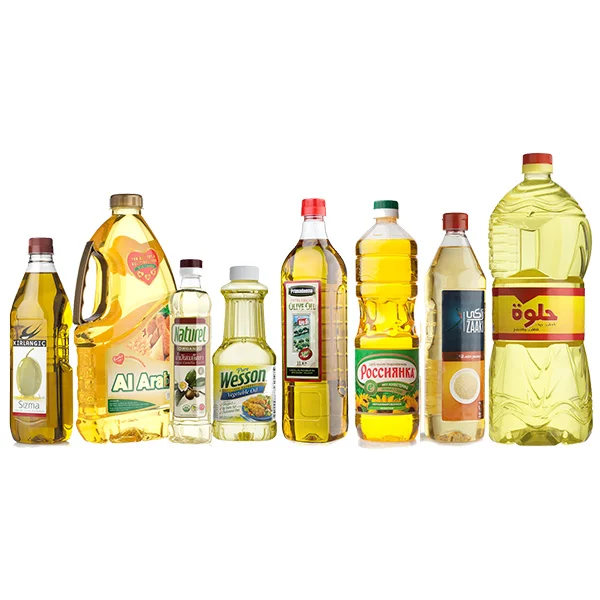

Material IntroductionCommon Edible Oil Bottle TypeFilling Machine SelectionCapping Machine SelectionLabeling Machine SelectionFilling NotesRecommended Auxiliary EquipmentWorking VideoContact UsYou May Like
Edible oil is plant, animal, or synthetic fat used in frying, baking, and other types of cooking. It is also used in food preparation and flavouring not involving heat, such as salad dressings and bread dippings like bread dips, and may be called cooking oil.

Edible oil is typically a liquid at room temperature, although some oils that contain saturated fat, such as coconut oil, palm oil and palm kernel oil are solid.

There is a wide variety of edible oils from plant sources such as olive oil, palm oil, soybean oil, canola oil (rapeseed oil), corn oil, peanut oil and other vegetable oils, as well as animal-based oils like butter and lard.

Oil can be flavored with aromatic foodstuffs such as herbs, chillies or garlic.[From Wiki] Edible oil

Our range of automatic edible oil filling machines comprises of continuous liquid filling machine as well as servo controlled liquid filling machine. These machines are fabricated by our team of qualified engineers and technicians with the use of finest technology and components to bring out a superlative quality

VKPAK Edible oil filling machine is having its own pumping system to connect the machine with the main / buffer tank of the product. The volume to be filled is measured by the measuring devices, which consist of multi piston positive displacement volumetric device. The flow of liquid is to be measured and converted in to electronic pulses by encoders and controlled by PLC (Programmable Logic Controller). All settings to be done on the MMI (man machine interface) keypad which is provided on the electrical control panel.

Edible Oil Viscosity Table
Edible OilsSpecific Gravity @ 16°CAbsolute Viscosity cPTemperature C°
Castor Oil0.9658027
Castor Oil3680
Chinawood Oil0.9430021
Coconut Oil0.935524
Coconut Oil3038
Corn Oil0.922857
Cotton Seed Oil0.886224
Cotton Seed Oil0.932452
Linseed Oil Raw0.93-0.942938
Olive Oil0.914038
Palm Oil0.924338
Peanut Oil0.923838
Soya Bean Oil0.936024
Soya Bean Oil1280

Source: https://www.michael-smith-engineers.co.uk/resources/useful-info/approximate-viscosities-of-common-liquids-by-type

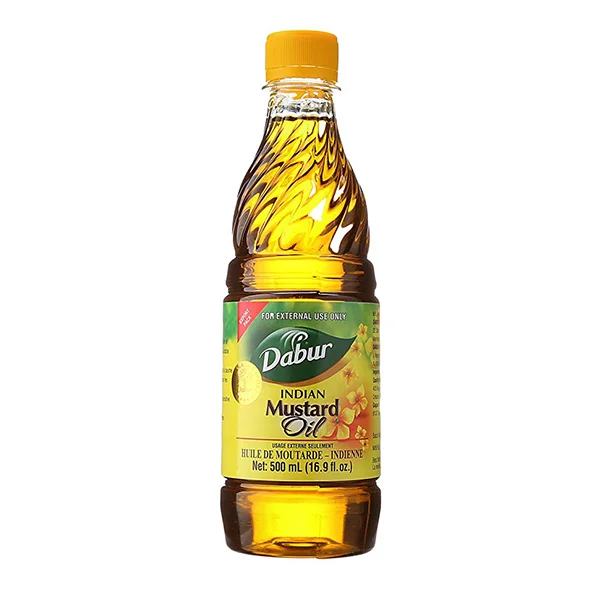

50-5000ml edible oil filling:

Recommended machines: Piston filling machine

Automatic Piston Filling Machine

Automatic Piston Filling Machine

Introduction Piston fillers measure and dispense free flowing products - such as thin and/or moderately dense liquids - onto a container. Each machine is equipped with one or more volumetric pistons. Each fill/release cycle consists of an intake stroke, where the product is withdrawn from the container or...
Recommended reason: general edible oil has a certain viscosity at room temperature. (Refer to the edible oil viscosity table for details) The linear piston filling machine is perfectly adapted to the filling of edible oil. VKPAK provides 2-16 nozzles piston filling machines.

5L-30L edible oil filling

Recommended machines for 5L-30L edible oil filling: Weigh Filling Machine

Automatic Net Weight Filling Machine

Automatic Net Weight Filling Machine

Introduction Net weight filling machines use a weigh scale platform to monitor the weight of product as it is filling into a bottle or container. Net weight fillers are well suited for large container filling applications. This type machine is used for 5kg -30 kg liquid filling. Gravity...
Recommended reason: Quantitative filling with weighing method is more suitable
VKPAK provides automatic 2-8 nozzles weigh filling machines.

High Speed edible oil filling

Recommended machines: Rotary piston filling machine
The production capacity exceeds 7000BPH (500ML bottles). It is recommended to use multiple linear piston filling machines or rotary piston filling machines

Low-capacity edible oil filling:

It is recommended to use semi-automatic or manual filling machine (VKPAK mainly produces fully automatic machines)

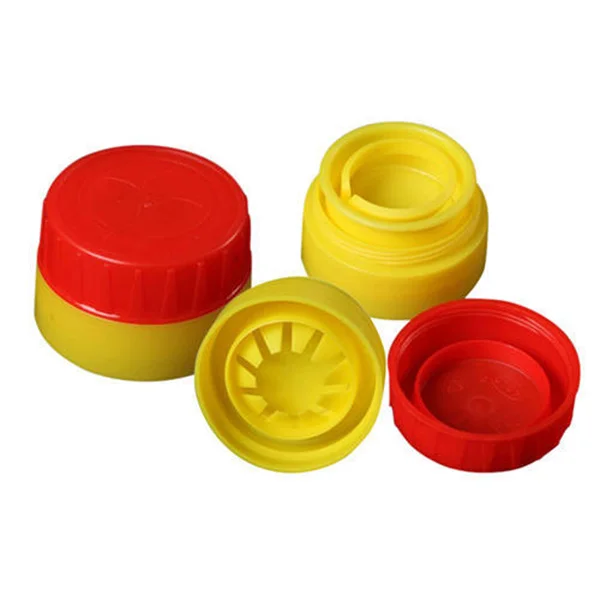

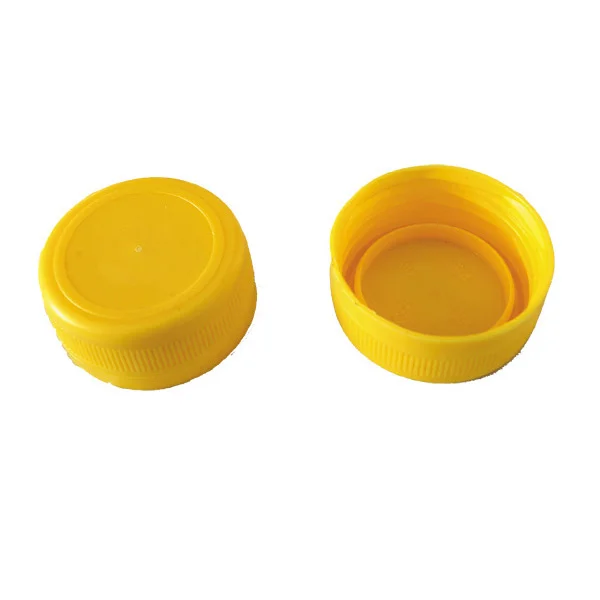

Generally, there are two types of edible oil capping machines, one is to press the cap to the bottle by downward pressure (as shown in Figure 1, normally the two parts in the figure are integrated), and the other One is to seal the bottle by rotating the lid (as shown in Figure 2), so VKPAK recommends the following edible oil capping machines:

Automatic Spindle Screw Capping Machine Sale

Automatic Spindle Screw Capping Machine

Introduction The VK-SC automatic spindle screw capping machine is extremely flexible, is capable of capping accurately and rapidly any cap, such as trigger cap, metal cap, flip cap and so on. 1. Variable speed AC motors. 2. Spindle wheels adjustment knobs, with lock nut hand wheel. 3. Meter...
Automatic Press Snap Capping Machine

Automatic Press Snap Capping Machine

Introduction This Automatic Press Snap Capping Machine is used for closing press type caps, it is made up by 3 parts: cap feeding system, cap loading system and cap closing system. It is characterized by its simple structure and high qualification rate. Can be used alone or inline. Linear...
The edible oil labeling needs to decide which labeling machine to use according to the shape of the edible oil bottle and the size of the label.

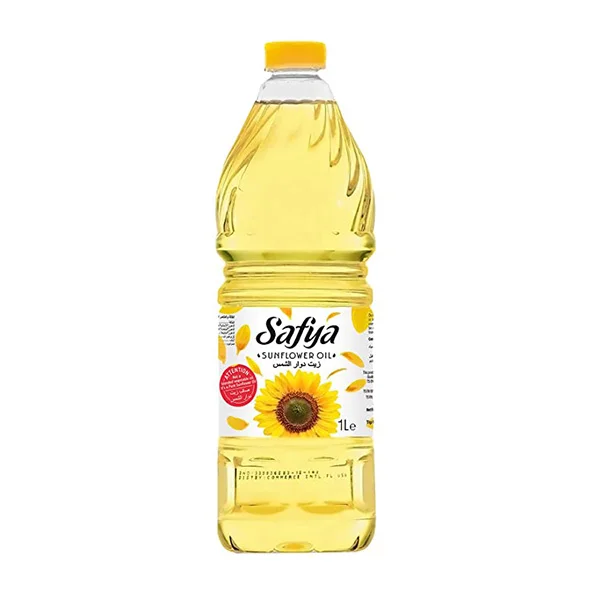

Usually: round bottle labeling machine is recommended for round bottles below 1L

Automatic Vertical Round Bottle Labeling Machine

Automatic Vertical Round Bottle Labeling Machine

Introduction The vertical round bottle sticker labeler is designed to achieve a rationalized production goal. The labeling process is automated, the operation is simple, the production speed is fast, the labeling position is uniform, beautiful, and tidy; it is suitable for the round container labeling in the pharmaceutical,...

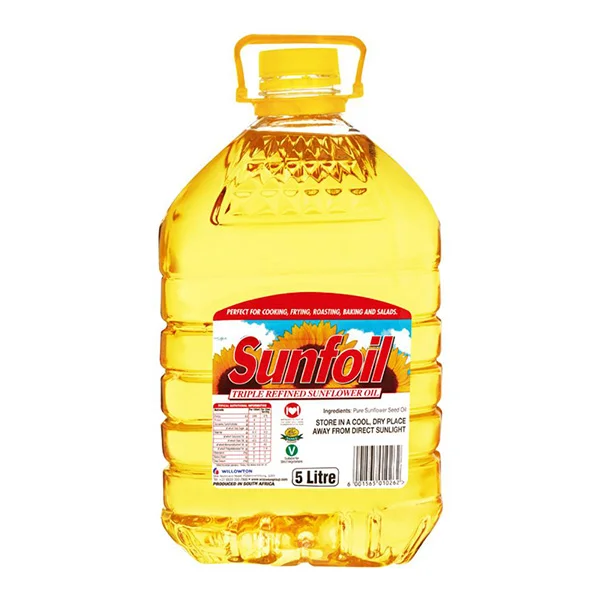

It is recommended to use a round bottle positioning labeling machine for 5L bottles with handles

Automatic Orientation Wrap Around Labeling Machine

Automatic Three Roller Positioning Labeling Machine

Introduction It is special design for the round bottle orientation labeling with orientation device, the labeling accuracy can be guaranteed, especially suitable for the wrap around label. Oriented wrap around labeling machine is controlled by servo motor ( label exact is 0.5mm), It is suitable for any kinds...

It is recommended to use a double-sided labeling machine for square bottles

Double Sided Labeling Machine

Automatic Double Sided Labeling Machine

Introduction Double Sides Labeling Machine is widely suitable for food stuff, cosmetic, pharmaceutical, pesticide and other industries. It is single and double side labeling for flat, square and round bottle. Automatic controlled by computer (PLC) easy operating. It can change specifications easily. It adopts servo motor, achieved closed...
At our company, we understand that completing the packaging process for consumable oil products requires a range of liquid packaging machinery beyond filling equipment. To meet the needs of our customers, we offer a selection of customizable systems for bottle cleaning, conveying, labeling, and capping that are compatible with various types of consumable oils.

Utilize High-Quality Edible Oil Filling Line with Customizable Configurations

At VKPAK, we understand that every packaging application has unique requirements. Therefore, we offer a range of customizable cooking oil filling machines and other edible oil machines designed to meet the specific needs of your application. Our equipment can be tailored to accommodate different viscosities of the product and space requirements in your facility. With our reliable food oil machines, your facility can operate efficiently, ensuring that your production lines are as profitable as possible. Our comprehensive systems ensure that every aspect of your food oil packing process is optimized to its fullest potential.

Incorporate Complete Oil Packaging Machine Systems for Optimal Results

At VKPAK, we provide a complete range of equipment to enhance the reliability and efficiency of your entire assembly line. Our bottle cleaners can remove any potential contaminants, including harmful bacteria, prior to the filling process. Our capping machines can accurately attach airtight caps of varying shapes and sizes to custom-sized bottles, and our labelers can place high-quality labels containing images and text that display product information and branding. A system of conveyors transports products between stations at consistent speeds, ensuring each product is filled and packaged within the designated amount of time for maximum profitability.

Get a Custom Oil Packaging System Designed Specifically for Your Facility

To meet your specific space requirements and product specifications, VKPAK can help design a complete packaging system tailored to your needs. Our installation services ensure proper implementation of the equipment in your facility. Additionally, our technical experts are capable of maximizing the effectiveness of your packaging system by providing field service, high-speed camera services, and leasing. Each of these services can improve the overall performance of your machinery along with operator productivity.

To get started on the design and setup of a complete system of edible oil filling equipment and other packaging machines, contact VKPAK for immediate assistance. Our team of experts is dedicated to providing top-notch service and equipment to ensure the success of your packaging operations.
