Bottle Labeling Machine

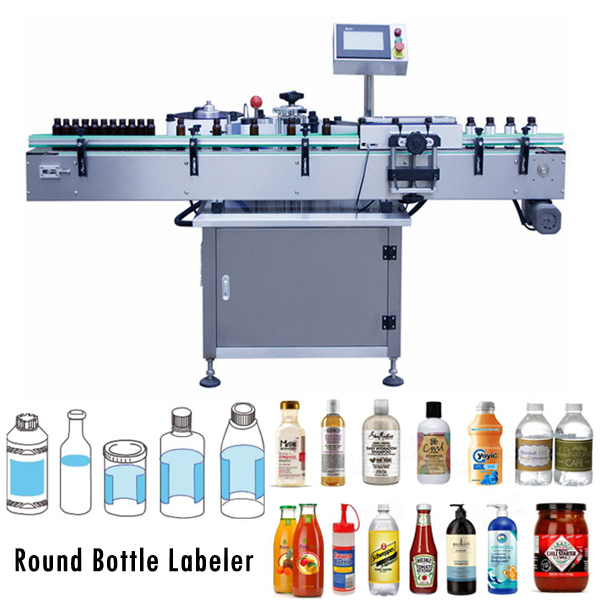

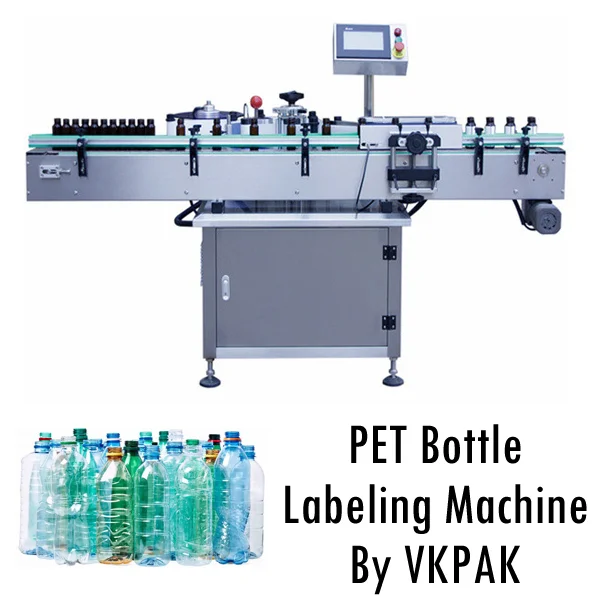

This labeling machine is equipped with computer touch-screen which layout very large scale integrated circuit. It is controlled by micro-computer with chinese/english character touch screen, realized the man-machine communication. Micro-computer configuration is helpful for all data input by touch screen and also for all-round control the running condition once machine started.

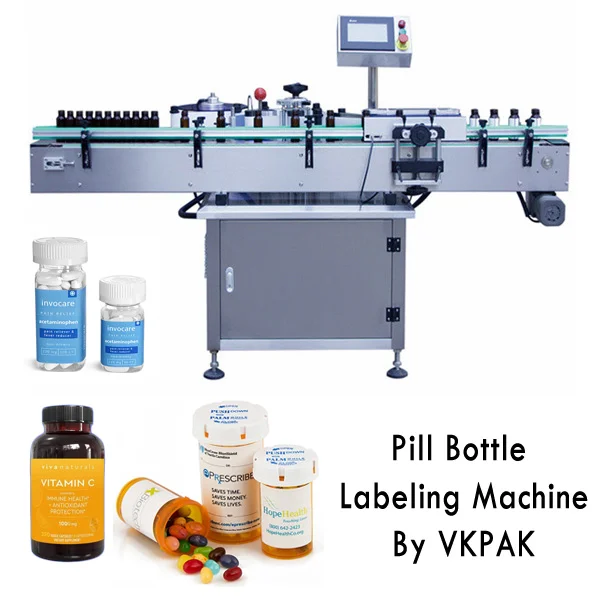

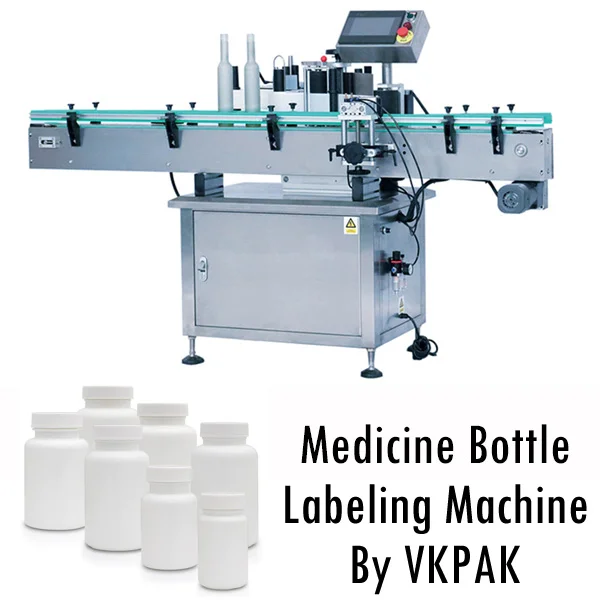

PLC control adhesive labeling machine for round bottles is the upgrade of the company’s products, the device structure is simple, easy to operate. According to the bottle, labeling paper specifications and features for stepless adjustment of production capacity. Selection of the labeling machine adaptable bottles, glass bottles and plastic bottles for food, drugs, cosmetics, and other specifications, whether transparent or opaque sticker, can be pasted on the bottle or container satisfactory label.

Advantages

Stable: Adapt Siemens PLC control and Panasonic servo motor Driven label for machine working stably and label accuracy. It is high performance and high efficiency.

Easy Operation: The touch screen can be in English, Spanish, French, Russia and any other language. It is easy operation and can be connect with other machines for production packaging line.

High Precision: Accuracy from +-0.5-1mm.

Wide Application Range: Widely using the bottle diameter from 25mm to 120mm, bottle heigh 25mm to 300mm, If customized height of 10mm-150mm, length of 15mm-300mm, please kindly ask us.

High Speed: Speed max can reach 150 bottles per min subject to the label size and bottle size.

Europe Standard: The labeling machine is made according to CE standard, Taiwan technology.

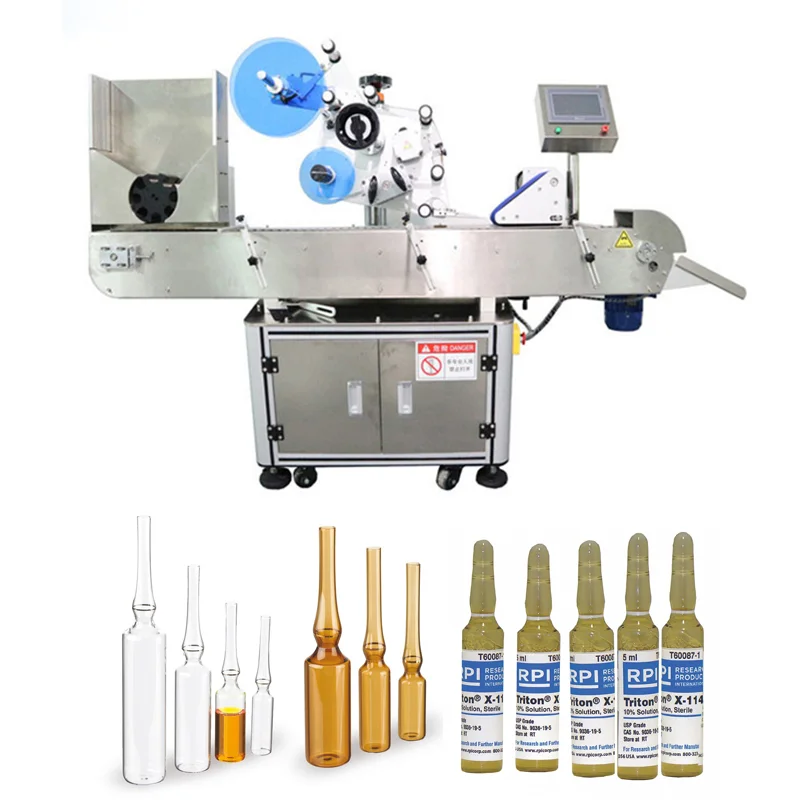

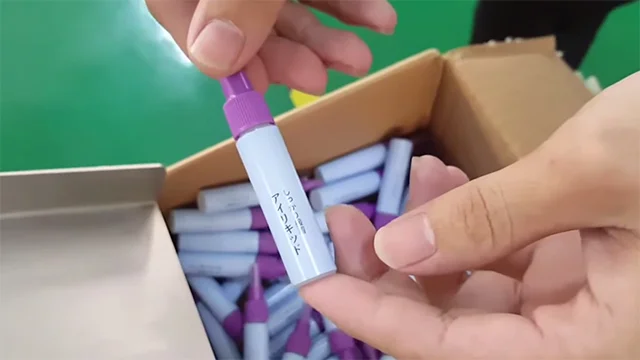

This machine is suitable for labeling sticker on cylinder which are hard to stand up. The horizontal transmission and labeling can help to improve labeling accuracy and working efficiency. This machine can be equipped with a date coder which can be used to code production date and production number.

Features:

• Applicable scope, specially for small tubes, bottles to do labeling.
• Circular rolling labeling, widely used in pharmaceutical, food, cosmetic and other industries.
• High accuracy of labeling, the acuities of label head to tail connect local just reache + / – 1 mm
• The clever extrusion type device feeding, just need to place the pieces, it can automatically labeling
• Using the anodic oxidation of aluminium alloy stents and advanced computer white box, the beauty is generous.
• Using advanced electric eye, the object, the label high detection sensitivity.
• Work with bottle management machine, the efficiency is improved.
• Optional code printing machine to print date or batch number automaticlly, improve packing process.

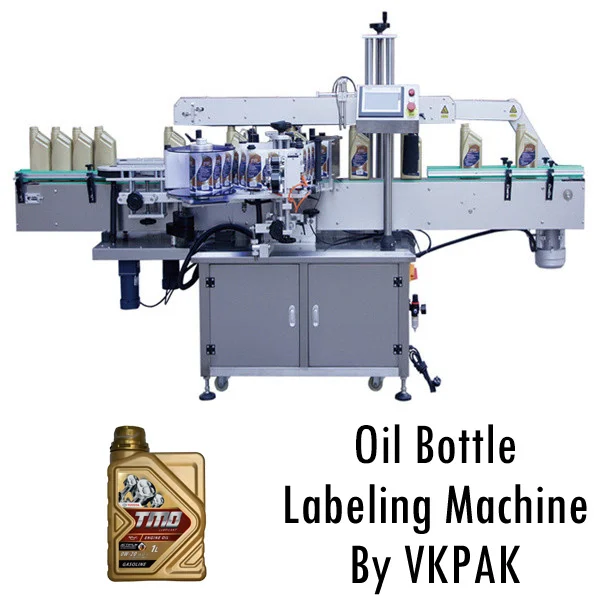

The machine can simultaneously achieve two-sided circumferential surface labeling and labeling features to satisfy the flat bottles, square bottles and bottle shaped single-sided and double side labeling, the entire circumference of the cylindrical body, a half weeks labeling, widely used cosmetics industry, daily chemical industry. Optional Tape printer and inkjet printer to achieve the production date printed on the label and batch information to achieve labeling – endowed integration.

Features:

• This machine can automatically attach adhesive labels or stickers film on the side surface of the product/ large curvature, circumference, and square surface, etc.
• Improve the efficiency of product labeling and film adhesion. attached location is accuracy and stable; to avoid manual labeling, inefficient film, attached skew, foaming and folds, and irregular attached location problems, reduce cost, make product more nice. so that improve product competitiveness.
• Labeling smooth, not wrinkled, no bubbles, labeling accuracy, high efficiency, good stability.
• PLC control system, touch screen, has standard sensor electronic control system, human control interface show prompted comments and complete function, operation function, easy to use and maintain.

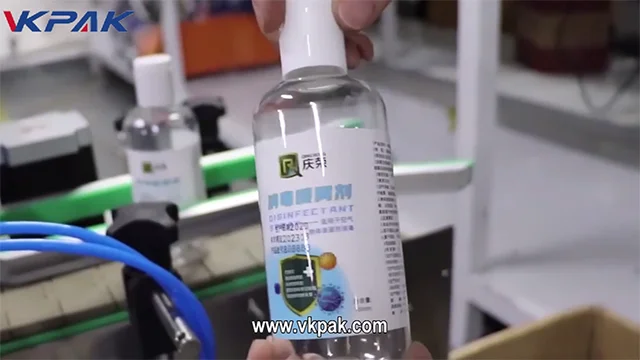

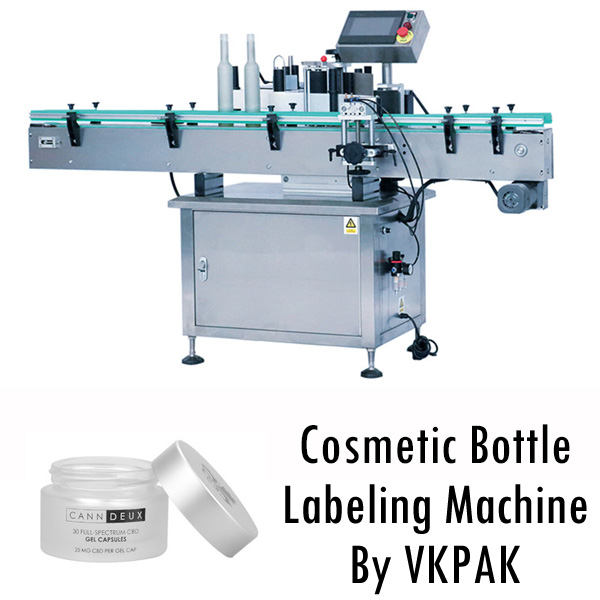

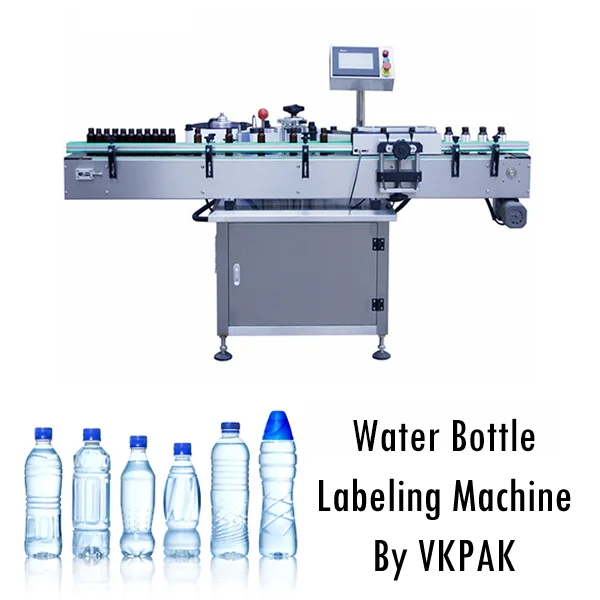

This labeling machine is mainly used for applying self-adhesive labels onto various round bottles, no matter pet bottles, glass bottles, wine bottles or vials. It is an automatic but small labeling machine that it will take very little space. If your workshop is small then this machine is your wise choice.
Applicable to circumferential labeling of various cylindrical products. Such as cosmetic bottles, shampoo bottles, shower gel bottles, medicine bottles, jam bottles, essential oil bottles, sauce bottles, wine bottles, mineral water bottles, beverage bottles, glue bottles, etc.

Full automatic processing provided by PLC controll and fast labelling speed to save your precious time, it’s the best choice for automatic labelling in a such small form factor.

Additionally, it can attach to bottle organizing machine to add bottle feeding and retracting functions.

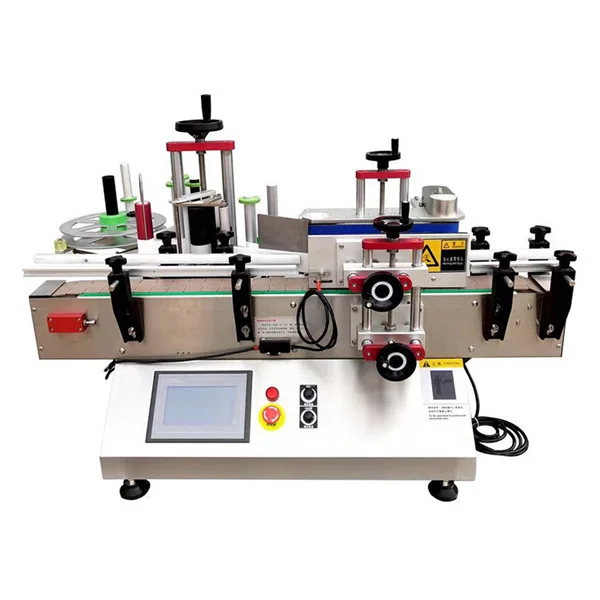

• Lightweight & humanized design: small enough to sit on a desk comparing to the normal automatic labelling machine which is giant and uneasy to move around.
• Automatic photoelectric sensor: smart controll for labelling and bottle decteting, it has automatic label calibration and detection to avoid any waste of labels.
• Automatic bottle feeding: seperates bottles automatically to improve stablity by eliminating the small size difference between each bottles.
• Stainless steel body: elegant appearance, non-deformation, high quality 304ss material that meets gmp standard, providing the best using experience.
• Best imported component: carefully picking the best component to build the machine, ensures high quality and long service life.
• Automatic batch process: easy to operate and maintian, lowering labor cost and improving efficiency.
• Multiple functions: automatic counting and stopping to save electricity, automatic save settings, etc.
• Touch screen controll: easy to controll and switch different settings, it features a user interface with guides.
• High labelling stablity: labelling is straight and flat, no bubbles or creases.

Basic use: Labeling of cylindrical objects of various specifications, labeling of small taper round bottles, full-circle / half-circle labeling, suitable for round bottle labeling of PET bottles, plastic bottles, glass bottles, metal bottles, etc. Labels on the front and back of the circumference, and the spacing between the front and back labels can be adjusted arbitrarily.

Label of Application: self-adhesive label, laser labels, electronic supervision codes, barcodes, etc.

Products of application: products with labels attached to the circumferential surface and conical surface, which can realize single, double and positioning labeling.

Industry of Application: widely used in food industry, chemical industry, electronics industry, pharmaceutical industry, hardware industry, plastic industry, etc.

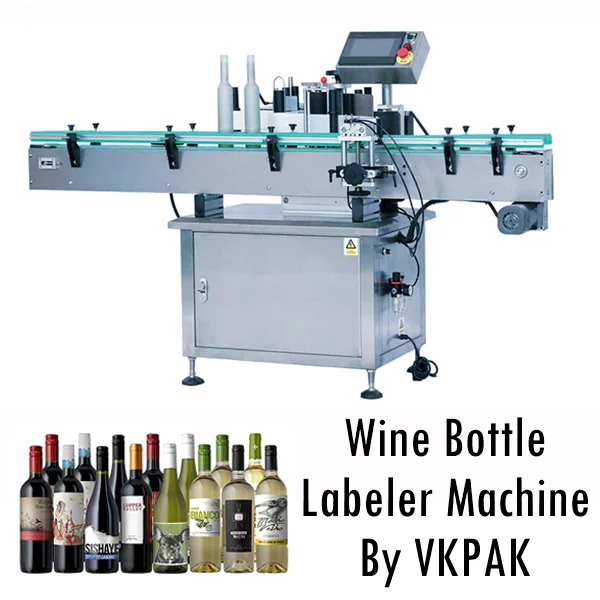

Cases of Application: front and back labeling of red wine/white wine bottles, chili sauce bottle labeling, cosmetic labeling, health care product labeling, medical product labeling, hardware product labeling, etc.

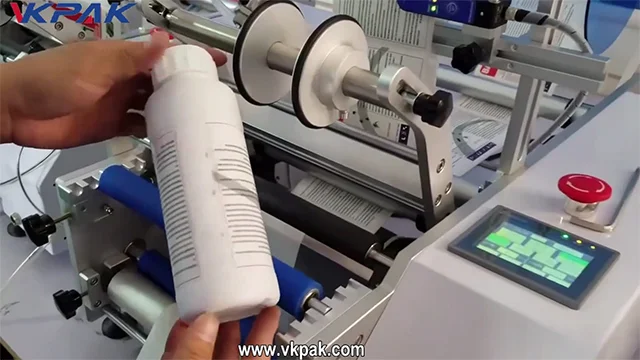

Advantage：
1. Two working mode: Pedal switch control or automatic working mode
2. Labeling function: Single side labeling and double side labeling
3. Labeling speed is adjustable,improve the working efficiency greatly
4. Can be equipped with date printe,make labeling and printing at one machine.
5. Intelligent operation panel: Easy to adjust the working data,improve the product quality.

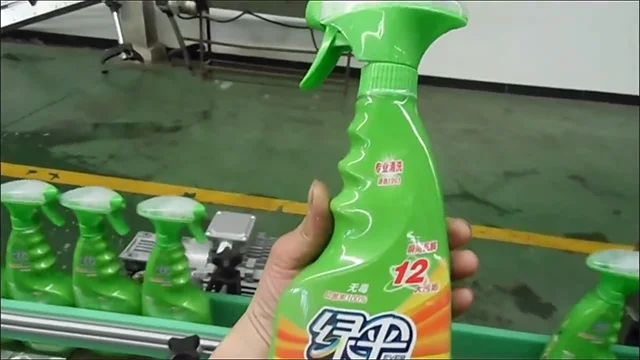

This shrink sleeve labeling applicator function is for PVC label shrink on the bottle, used for beverage bottle package solution, international advanced technology, cover the circle label on PET bottle, And then hot shrinking to fix on the position which bottle body designated.

The machine’s structure is compact, and suitable for the production line of different direction and different height. The machine part adopts combination designing of modularization, and make the machine reasonable, the height adjustment adopts motors fluctuating, it is convenient to replace the material, The special cutter head designing, make the film rolling cut more exactly and reliably.

Features:

• The machine is made of stainless steel and high quality of aluminum alloy, the reasonable, intact frame, it is easy to adjust.
• The feet bolt is not fixed, easy to move suitable for different place.
• The shrinkable film roll with adjustable locking gear, can be adjusted according to different roll 5-10
• The applicable bottle is the machine square bottle and round bottle
• Without tools, the driven machinery can be adjusted to meet different bottle size
• Particular inserting label ways, i.e. Inserting label, it is reasonable and convenient.
• Full automatic feeder, the flat shrinking and tension are adjusted together.
• It is assured to low error that there is inspection of rolling label cut.
• Particular blade design, blade base can be change by free, changing blade quickly and conveniently.
• It is easy to change the central clamping device without any tools.
• Oriental rolling label device can be lifting synchronal.
• The separating bottle screw, oriental belt and conveyor are adjusted synchronal, it is easy and quick to do.
• Adopting schneider servo motor made in france and sensitive photo electricity, to insure the precision of cutting label.
• Stainless steel electric controller, adopting mitsubishi PLC made in japan
• Adopting advanced machine automatic controlling technology, main component adopts famous brand.

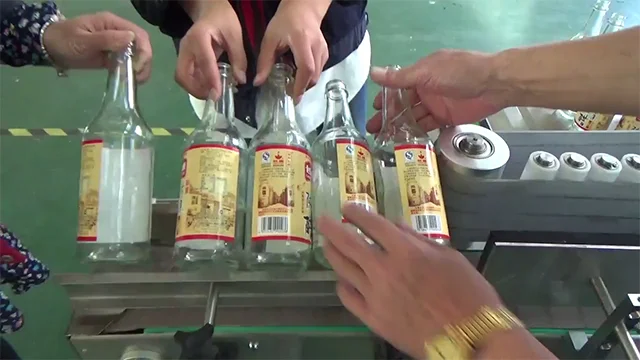

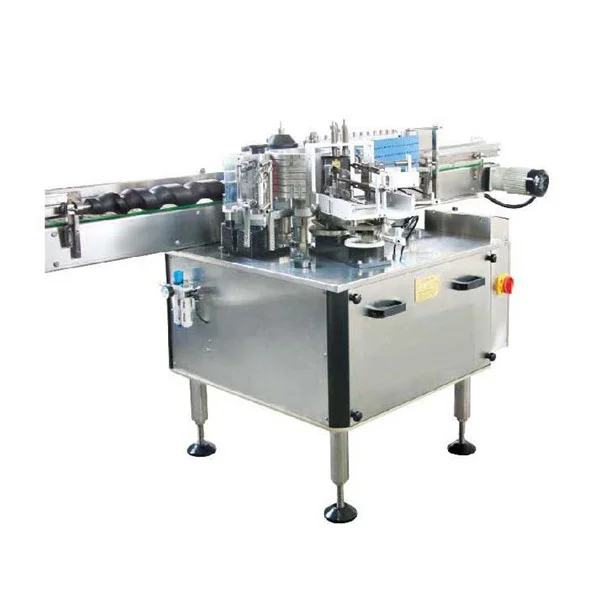

This wet glue bottle labeling equipment is for the round bottle labeling in the industry like food, oil, pharma, wine, cosmetics and so on. The machine with elegant design can be easily operated and maintained by the common worker, who requires no special training in operation this machine. Just give a simple adjustment to produce another product when you want to swap the different kinds bottle labeling.
Automatic wet glue paper labeling machine is suitable for all kinds of cylindrical objects, such as glass bottles, Plastic bottles.It can work separately or connecting with conveyer. Label box can be controlled to satisfy different labeling request.

The size of label box can be changed according to the different label size. The operation is convenient and easy.

It uses the glue pump and the glue can be used circularly. Quantity of flowing glue also can be changed to satisfy different labeling request. Compare to self adhesive labels, paper label make a low cost.

Features

• Whole machine use 304 stainless steel and advanced aluminum alloy, meet the GMP requirement.
• Automatic label sending, automatic pasting, automatic labeling which highly improve labeling efficiency.
• Advanced compatible human-machine interface system, simple and intuitive, full of functions, with rich online help functions.
• Using rotary-screw guide the bottles on conveyor, the bottle runs smoothly and the positioning is reliable. Using the rolling mechanism, the label pasting is good, the reliability of the labeling is enhanced, the protection device is equipped with no bottle sent, no label out, no paste, no labeling and so on.
• The high purity copper glue box is matched with the stainless steel roller to make the process precise. The glue thickness can be adjusted according to the need, and the glue is equal, so as to eliminate the waste of glue and the phenomenon of glue leakage.
• The special rubber roller is treated by several processes without deformation and wear resistance. The glue is uniform and light, and the amount of glue is saved.
• Intelligent control, automatic photoelectric tracking, when no object and no labeling, no label automatic correction and automatic label detection function, to prevent glue leakage and label waste.
• With the vacuum suction system and the belt cooperation, the label can paste on bottle smoothly .
• Using the frequency converter, the speed of the motor can be adjusted freely and the labeling capacity is controlled freely.
• It can work alone, and also can connect the production line.
• The separation design of glue box, coated rubber wheel and rotating tower, make simple and quick cleaning.
• The whole machine is selected by the world famous electric configuration to ensure the quality, make it more stable, longer use and less maintenance.
• The speed of labeling, transport and bottle separating can realize stepless speed regulation, and adjust according to the need.
• The adjustment is simple, the replacement of a small number of parts such as the turret, the vacuum belt and so on, can be quickly adjusted and satisfied with various specifications of the bottle. And the adjustment factors can be excluded to the maximum.

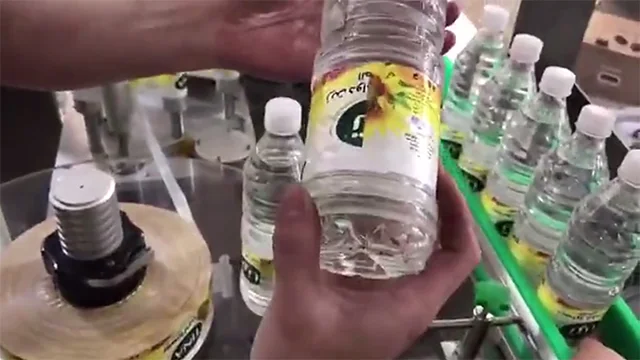

Hot melt glue labeling machine is widely used for different material of container. The label cost is comparatively lower, it can meet the requirements of those users who have diverse kinds of the containers. It is the most economical models in cost to make mass production and intergrated operating. The equipment has massively used modularization design concept to make it easy and simple for users to change the bottles. Whether from the replacement of star wheel, guide plate or manual speed adjustment to automatic speed control, for example changing the label is only needed to change the program, the products concept of that the equipment is designed for users is embodied in everywhere.
This labeling machine is a fully-automatic line- type machine for hot melt labeling, which is suitable for different container sizes and round bottle shapes. The system features high labeling accuracy with low glue consumption. Changeovers to different containers or labels are affected quickly and easy.

All modified adjustments are easily reproducible. The labeling machine is easily to operate, to clean and to maintain and is very economic thanks to its high reliability.

Main Function:

• With a star-wheel carrying containers firmly while dispensing, providing stable dispensing performance under high-speed operation. Also can choose screw for bottle inlet.
• Use servo motor to synchronously tracks label supply, label cutting and use specially designed vacuum drum to ensure precise labeling.
• Welded, sturdy machine body enables labeling up to 600 bottles per minute without problem.
• Three-phase PLC and AC variable control with a synchronized tracking and control system to maintain label cutting accuracy in different running speed.
• Centralized lubrication system for easy maintenance.
• System safety device: When malfunctions such as irregular torques and abnormal feeding occur, machine will automatically stop for operation safety and machine durability.
• Detecting in feed situation with sensor, automatically adjust labeling speed according to feeding situation of production line, making production line coherent.
• Automatic label tension control system for stable and precise labeling.
• Adhesives: Hot-melt adhesives, glues, and thermal-activity adhesives.
• Label material: OPP, BOPP, thermal-activity adhesives and matte paper.

Method of Operation

The containers are picked up by the infeed starwheel and transferred to the container table. The container rotation begins when they are positioned between container plates and centering bells.

The speed of the feed roller is adjusted to the required label length for continuous web tension. A standard threading unit ensures optimal film feed. In the cutting unit, the labels are precisely cut while a PLC command and servo-motor provide an exact cut-off point.

Two narrow strips of hot melt glue the labels together, which are applied by a heated glue roller to the leading and trailing label edges. The label with the glue strip on its leading edge is transferred to the container. This glue strip ensures an exact label positioning and a positive bond. As the container is rotated during label transfer, labels are applied tightly. Gluing of the trailing edge ensures proper bonding.
