Automatic Carton Box Corner Labeling Machine

Introduction

Special for box corner labeling, on the upper plane and side plane corner labeling, play an anti-disassembly role. It is mainly used in the double side labeling of anti-disassembling labels of CARDS, electronic products, mask boxes and medicine boxes.

Automatic corner labeling machine can be combined with plane labeling machine to form continuous labeling.

The machine is widely used in cosmetics, food, medicine, daily chemicals, electronics, toys, hardware, plastics and other industries, and can be applied to various plane labeling, and the replacement of the coating mechanism can meet the uneven surface labeling; and the machine has the advantages of high stability, good labeling effect, no air bubbles, no wrinkles and accurate labeling.


DescriptionDetailsContact UsRelated Products

Parameter

ModelAutomatic Carton Box Corner Labeling Machine
Voltage specificationAC220V 50/60HZ
Consumed power1200W
Labeling speed40-70 vials/min (adjustable speed, depending on object size and label length)
Labeling accuracy+1mm (depending on product characteristics, hardness and roundness)
Conveyor speed50-80 boxes per minute
Scope of objectLength 20-300mm width 50-200mm height 25-300mm
label specificationWidth 20mm ~ ~ 130mm length 15 ~ ~ 100mm (special specifications can be customized)
Paper roll diameterΦ paper roll diameter: 76 mm Φ 320 (maximum)
Heavy volume200KG
Packing size1800X900X1300mm
The following is the standard model technical parameters, other special requirements and functions, can be customized

Working Principle

Core working principle: the sensor detects the passing of the product, and sends back the signal to the labeling control system. In the appropriate position, the control system controls the motor to send out the label and attach it to the position of the product to be labeled.

Operation process: product (receiving line) -- > product transportation -- > product detection -- > bilateral labeling -- > brush labeling -- > collection of pasted products (flowing into the next assembly line).

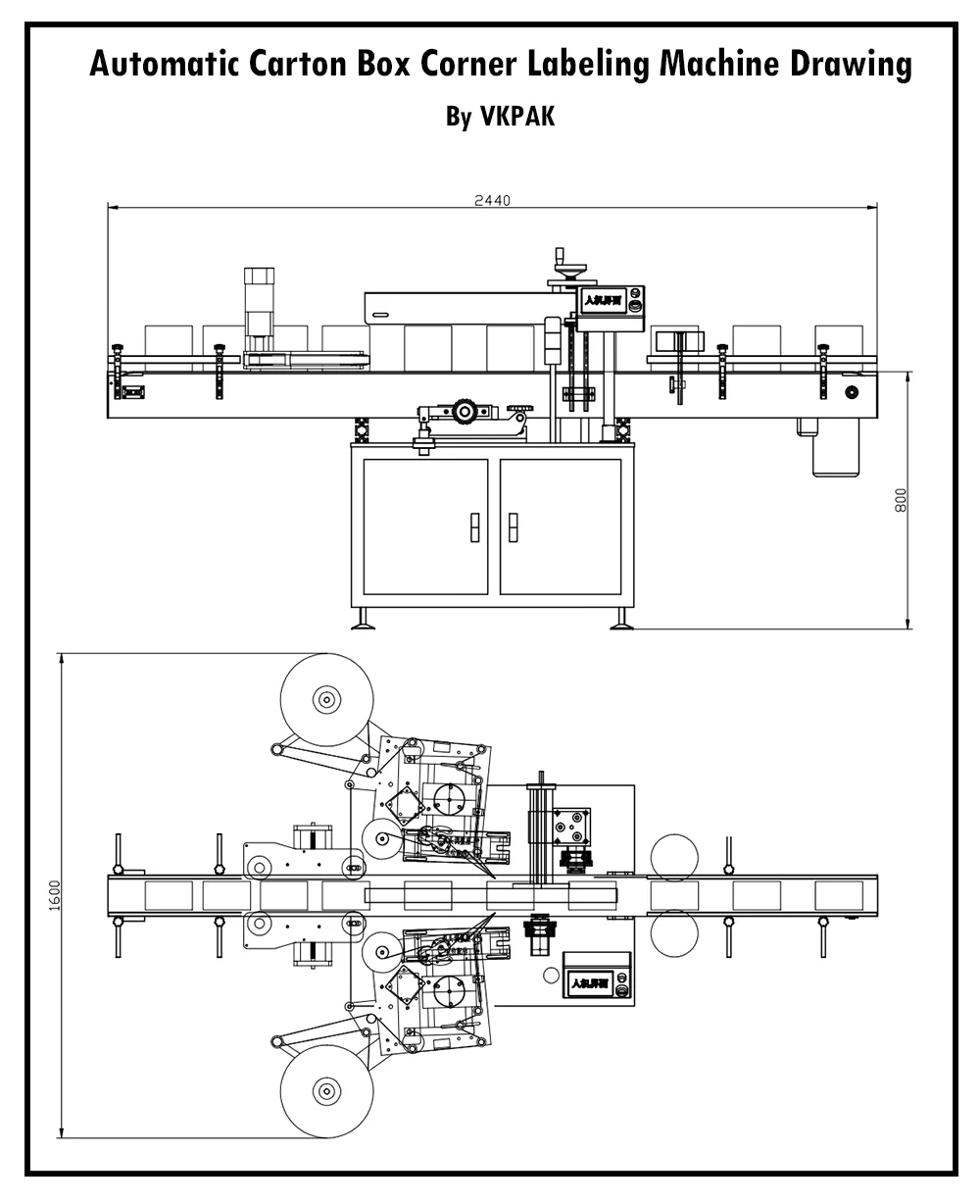

Drawing

Automatic-Carton-Box-Corner-Labeling-Machine-Drawing

Characteristic

1. Dedicated to box corner labeling, to achieve the box upper plane and side plane corner labeling, play an anti-dismantling role;

2. High speed, the speed of labeling the corner of playing CARDS reaches 180 boxes/min, greatly improving the production efficiency;

3. Label is firm and does not fall off.On the upper plane of the label, the roller rolls the overlaying label and sticks it firmly; on the side plane, the brush strokes and presses it firmly;

4. The labeling is beautiful, the top pressing mechanism is set, the box has high conveying stability, and the labeling and overlaying effect is good;

5. Intelligent control, automatic photoelectric tracking, with the functions of no label, no label automatic correction and automatic label detection, to prevent label leakage and label waste;

6. High stability, advanced electronic control system composed of Siemens PLC+ Siemens touch screen + keenz needle electric eye + German labor easy test label electric eye, supporting the equipment to operate 7×24 hours;

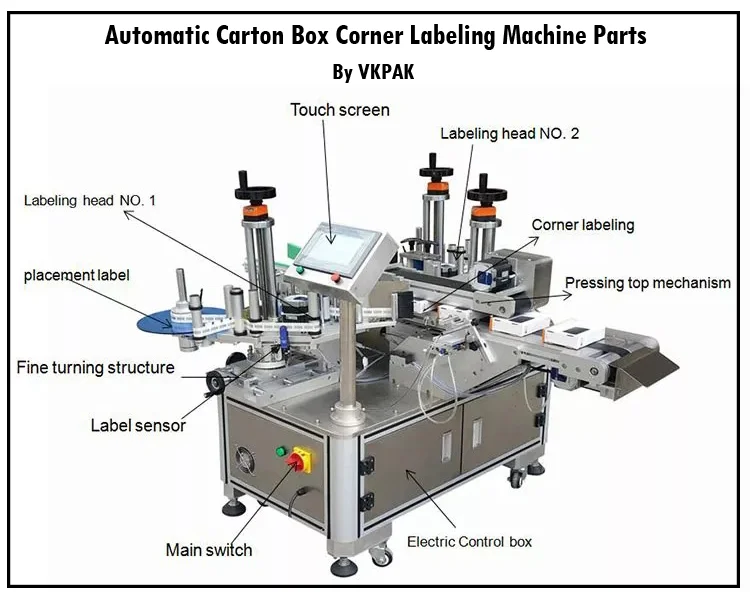

Automatic Carton Box Corner Labeling Machine Parts
Automatic Carton Box Corner Labeling Machine Parts

Application

Mobile phone box seal label, cosmetics set box seal label, double-side seal label of toy box, double-side seal label of medicine box, bank card K box, etc., Optional color belt marking machine, to print the production date on the label and other functions, marking code labeling synchronously, saving the process. Ink jet printer or laser jet printer can be used to print the production date on the product.

1. Applicable label: adhesive label, non-drying film, electronic supervision code, bar code, etc.

2. Applicable products: various paper boxes, such as poker boxes, mobile phone boxes, etc.

3. Application: widely used in printing, food, daily chemical, electronics, medicine and other industries.

4. Application examples: anti-detachable labeling of nestle box, anti-detachable labeling of card box, anti-detachable labeling of network card box, mask box, etc.

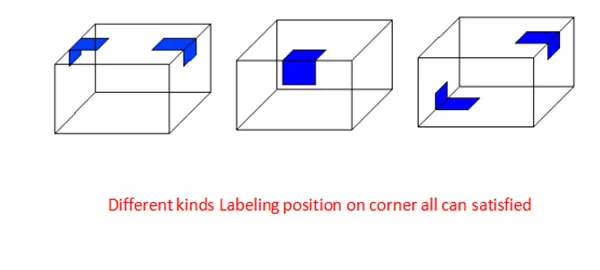

Automatic Carton Box Corner Labeling Machine Application

Working Video

video play button
video play button

Advantages

1. Diagonal is suitable for various size box sealing and labeling, is widely used in automatic sealing labeling medicine, daily chemical and food industry.

2. The man-machine interface system is advanced and compatible, easy operation, complete functions, has a wealth of online help function.

3. The machine has the advantages of simple structure, compact structure, convenient operation and maintenance.

4. The well-known brand of motor drive, the feeding speed stable, reliable.

5. The universal shape of the correction mechanism, can be used in any diameter of the material without any part replacement, rapid positioning adjustment Note: Complete sealing and labeling, such as four kinds of form (upper surface and lower surface seals labeling, two diagonal seals labeling).

6. Special pressing device, ensure that the labeling kit stability, greatly improve the labeling accuracy, especially suitable for small and light box.

7. Automatic optical inspection, when there is no object, no label will come out. There is an automatic detection device which make out of labels, leakage of labels, label breakage and machine halt will raise alarm, prevent leakage and waste.

Automatic-Carton-Box-Corner-Labeling-Machine-Details-3
Eight-dimensional adjustment mechanism adjust the labeling Angle. Suitable for a variety of bottle types.

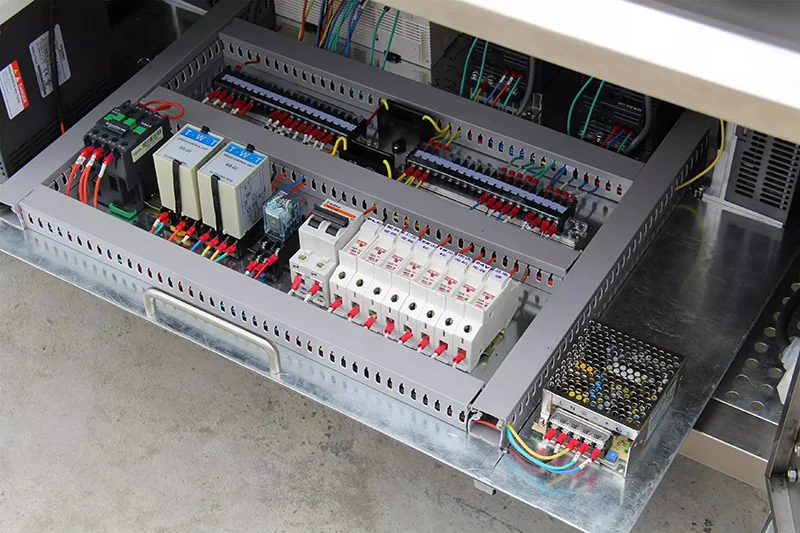

Automatic-Carton-Box-Corner-Labeling-Machine-Details-4
Using of the famous brands from around the world ensures the stability and reliability of the machine running.

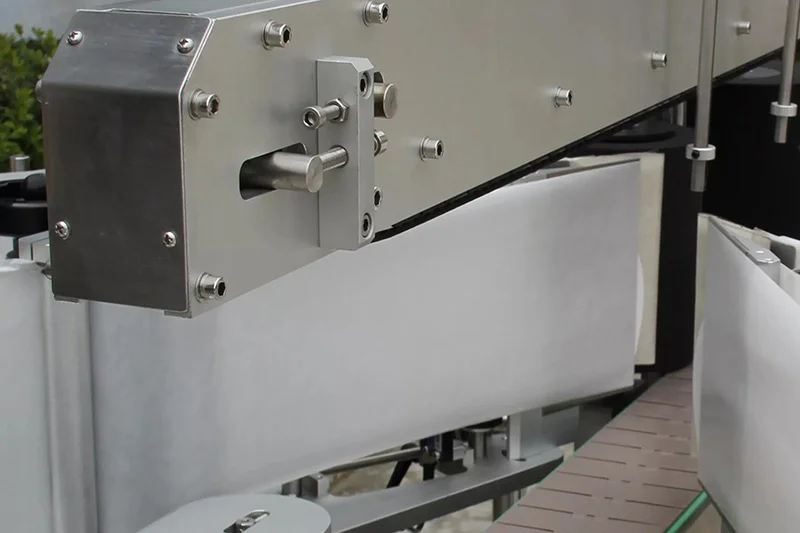

Automatic-Carton-Box-Corner-Labeling-Machine-Details-2
Automatic synchronous tracking to conveying, correction, pressure and labelling speed makes it easy and fast to adjust.

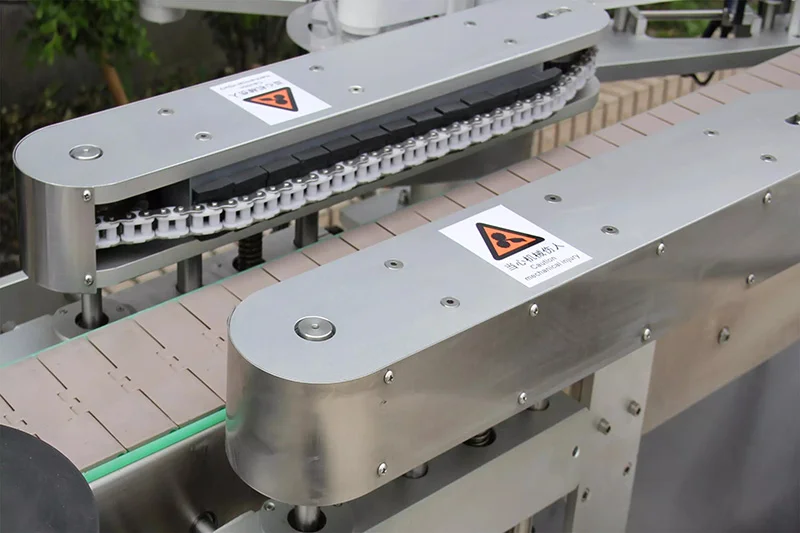

Automatic-Carton-Box-Corner-Labeling-Machine-Details-1
Materials is symmetrical about the center with the use of chain correction devices on double sides
