Automatic Drum Filling Machine


Double filling heads, automatic quantitative filling line can produce any specification of 100 to 300kg. It is suitable for big bucket filling of various kinds of viscous, non-viscous, corrosive and non-corrosive liquid. It has advantages of high precision, high automation, stable running condition, etc. High or low speed can be set freely. All the operations can be finished through touch screen. It is equipped with automatic incoming liquid level control, etc.

We are instrumental in designing and developing an extensive variety of drum filling machine those analogs to widest industry standards and norms. It is also known as barrel filling machine. These machines are made of Stainless steel scale with remote located digital readout Integration of scale operation with filler PLC and controls. Our drum filling systems are used in various application areas of chemical, food products, edible oil, paints, lubricant and pharmaceutical. Our range is precisely designed using superior grade raw material, that assure which is sourced from the reputed vendors of the market.

Model: VK-DF

View Video
DescriptionMain ConfigurationSpare Parts ListDetail ImagesContact UsYou May Like

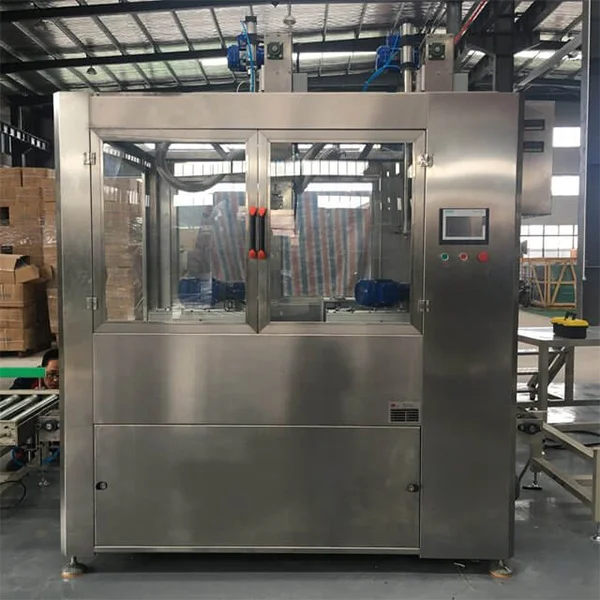

This machine is mainly designed intelligently to 100-300KG liquid barrel packing system, the filling main parts use stainless steel environmental frame, tempered glass door. When the machine is filling , it is totally enclosed, at the top, it has the air outlet, it can control air emission; the whole line finish the process during barrel incoming, barrel distinguish, aiming, falling down. And slowly rising according to the filling quantity add, to prevent the bubble. After the filling automatically out of barrel, it is put the caps around the barrel outlet, through the pneumatic capping head screw. After the whole process ending, through the forklift or human handling of materials. This machine uses PLC to control, touch screen operation. It has characteristics like convenient operation, high efficiency, wide range of application. This machine electric equipment control part is made by PLC, adjust speed channel, it had strong control ability, high automatically. It uses special equipment, so has function of no barrel, no filling, no aiming to barrel outlet, no filling, it avoid of material waste and pollution, so it made the elector mechanical integration present perfectly.

1. This machine is mainly designed intelligently to 100-300kg big drum packing system, the filling main parts use stainless steel frame, the whole line finish the process during drum incoming, drum distinguish, drum filling, and drum out-coming.

2. Filling heads will rising slowly during the filling process, in order to prevent the foaming .

3. After the whole process ending, put caps on the drum by manual, use the pneumatic capping screw the caps.

4. This machine controlled by PLC, touch screen operation. It has characteristics like convenient operation, high efficiency

5. It will avoid of material waste and pollution, so it made the elector mechanical integration present perfectly .

Technical Parameter

No.ItemTechnical Data
1Capacity50-70 BPH
2Filling accuracy± 0.5%
3Air Pressure0.6-0.8 MPA
5Voltage380V 50/60HZ

Our manufactured drum filling machine is simple to establish and demands very low maintenance as there is minimum wear and tear. These instruments are widely functional, have a long lasting function and are easy to operate. We adapt our collection in according with the several demands of our customers and pack it in best quality packing material thus assuring its utmost protection. These machines are highly efficient, durable, and are straightforward to run. These offered Drum Fillers are developed under the supervision of professionals of our company using supreme grade components and advanced technologies in sync with the norms laid down by the industry. Our machines are capable of filling 300 liter capacity drums within a short span of time. These are suitable to fill barrel for mustard oil, butter oil, olive oil, mobile oil and petro chemicals.

Working Video

video play button
video play button
1Weight SensorHBMGermany
2Touch ScreenWEINVEIWTaiwan
5Frequency ConverterSchneiderFrance
8Solenoid ValveAIRTACTaiwan
1Solenoid valve1 Piece
2Joint2 Pieces
3Screw/Nut1 Bag
4Tools kit1 Set
5Tools Box1 Piece
6Instruction1 Piece

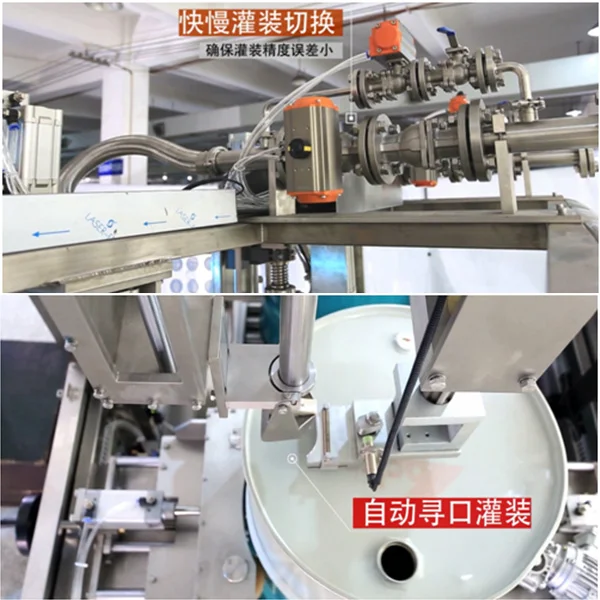

Through the coordination of mechanical components and sensors,we can make the filling needles automatically find the drum neck, filling mouth down into the drum,start filling program.

Under program control, filling nozzle adopt fast and slow speed switching filling guarantees the filling accuracy at the high filling speed
