Automatic Double Sided Labeling Machine

Introduction

Double Sides Labeling Machine is widely suitable for food stuff, cosmetic, pharmaceutical, pesticide and other industries. It is single and double side labeling for flat, square and round bottle. Automatic controlled by computer (PLC) easy operating. It can change specifications easily. It adopts servo motor, achieved closed loop control low malfunction rate. High efficiency. Fast speed.

The VK-DLA High Speed Servo Front & back Labeler is applicable for labeling Flat, square or other container with Front &back labeling, it can label two labels at front &back surface at same time; If adding a round bottle device, it also can label round bottles with one or two labels. If adding a top label head, it also can label a label on top of bottles, boxes, caps and so on.


DescriptionComponent ListAdvantagesDetail ImagesWorking VideoContact UsRelated Products
It is applicable to label flat bottles, round bottles and square bottles on one side and double sides, such as shampoo flat bottles, lubricating oil flat bottles, anti-bacterial hand lotion round bottles and so on. Two headers and labeling two sides at once can improve productivity. This labeling machine is widely used in daily chemical, cosmetic, petrochemical, pharmaceutical and other industries.

Adapt with Mitsubishi PLC control, Omron and LEUZE sensors, Mitsubishi Servo motor or delta servo motor. It is easy control and operation, working stably and high speed and accuracy. Automatic warning on failures, no bottle no labeling.

Model/ technical parametersVK-DLA
Labeling Speed (pcs/min)120-200(relate to material and label size)
Labeling Accuracy (mm)±1.0mm(material and label sizes are not counted in)
Label Size (mm)(L)10-300mm(H)10-250mm
Material Size(mm)Φ20-φ120mm(H)40-400mm
Roll Inside Diameter (mm)φ76mm
Roll Outside Diameter (mm)Max:Φ320mm
Machine Size(mm)(L)2800*(W)1400*(H)1400(mm)
Power SupplyAC220V50Hz/60Hz1500W(Can be customized )

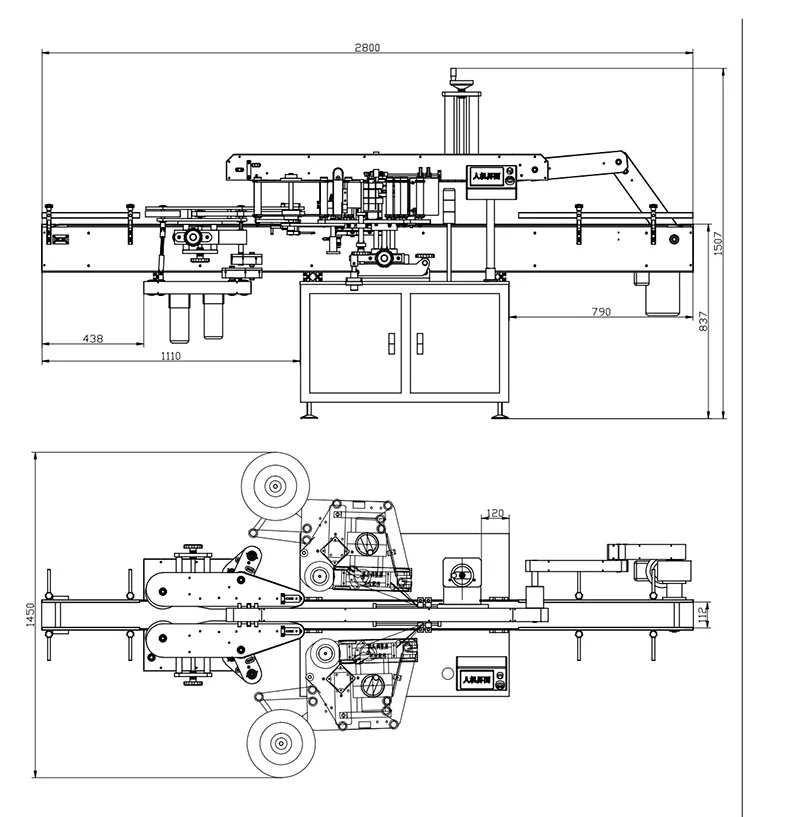

Drawing

Automatic-Double-Sided-Labeling-Machine-Drawing

Scope of application

(1) Applicable labels: sticker, non-drying film, electronic supervision code, bar code, etc.
(2) Applicable products: products with labels required to be affixed on the side plane, side large radian surface and circumferential surface.
(3) Application industry: widely used in cosmetics, electronics, medicine, hardware, plastic and other industries.

Workflow:

Manual placement of pasted products (on-line or bottle handling turntable) >> Automatic separation and correction and transportation of products >> Product Testing >> Product labeling >> Collection of labeled products (entering the next process) >> Taking away products.

Working principle

After the bottles enter the conveyor belt of the labeling machine, the bottles are fed to the labeling machine at a constant speed. The mechanical fixing device separates the pasted objects by a fixed distance and pushes the pasted objects along the direction of the conveyor belt. After the mechanical system (driving wheel, labeling wheel and reel), the driving wheel intermittently pulls the label belt to move, and the label is pulled out from the reel and pasted on the object to be pasted through the labeling device.

Optional functions and components:

1. Code printer: the hot printer can print the date of production, expiration date, batch number, etc. Marking and labeling are synchronized to improve production efficiency.

2. Inkjet printer: it can match the mainstream inkjet printer in the market, spray code at the designated position of the label, and perfectly combine with the labeling machine.

3. Universal sensor: ordinary sensor can not detect transparent label, so it must be used with special electric eye imported from Germany.

4. Reader: read two-dimensional code, bar code and other information, easy to establish product database for product traceability.

Serial numberNAMEITEMbrandcountry of origin
1HMI1SiemensGermany
2PLC1SiemensGermany
3Labeling motor1PanasonicJapan
4Labeling motor driver1PanasonicJapan
5Conveying motor1JianmingShanghai China
6Conveyor motor frequency converter1SiemensGermany
7Bottle dividing motor1JSCCGermany
8Bottle dividing motor controller1JSCCGermany
9Label motor1JSCCGermany
10Label motor controller1JSCCGermany
11Low voltage electrical apparatus1SchneiderFrance
12Label sensor1OMRONJapan
13Labeling sensor1OMRONJapan
14Synchronous toothed belt1BandoJapan
15Pneumatic components1AirTACTaiwan, China
16Conveyor belt1LilaiShanghai China
17frame1Shanghai China
18system integration1Shanghai China
1. The adjustment is simple, and the front and rear, left and right, up and down directions, plane inclination angle and vertical plane inclination angle adjustment seats are configured. There is no dead angle for different bottle shape switching, which meets the GMP production requirements;

2. Automatic bottle separation, effectively eliminate bottle separation caused by bottle error and improve stability;

3. It has automatic shutdown function, production counting function, power saving function (when there is no production within the set time, the equipment will automatically turn to the power saving standby state), prompt function of production number setting, parameter setting protection function (parameter setting is divided into authority management), which is convenient for production management;

4. Powerful function, color touch screen control, Chinese and English optional operation interface, convenient and intuitive, powerful data memory function, can store 50 groups of labeling parameters, with production counting function, power saving function, production number setting prompt function, parameter setting protection function, convenient production management, different product labeling switch can be realized by one key, without repeated debugging, simple and fast Good fault prompt and help function;

6. High stability. The imported first-line brand is adopted for the measuring standard and measuring object sensor, with high detection sensitivity, stable performance and durability; the stable and durable frame and various parts adopt standardized modular design with complete interchangeability and 24-hour operation to ensure safety and stability.

7. It is safe and hygienic. The case is made of stainless steel SUS304 and T6 aluminum alloy. It will never rust and meet the GMP excellent manufacturing standard;

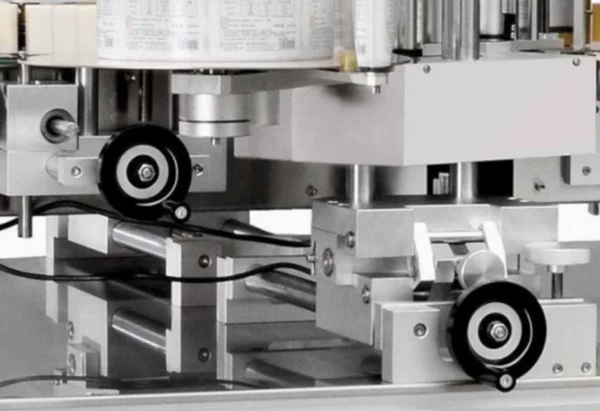

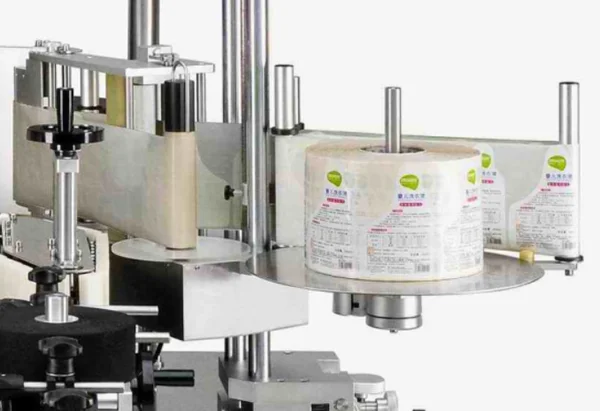

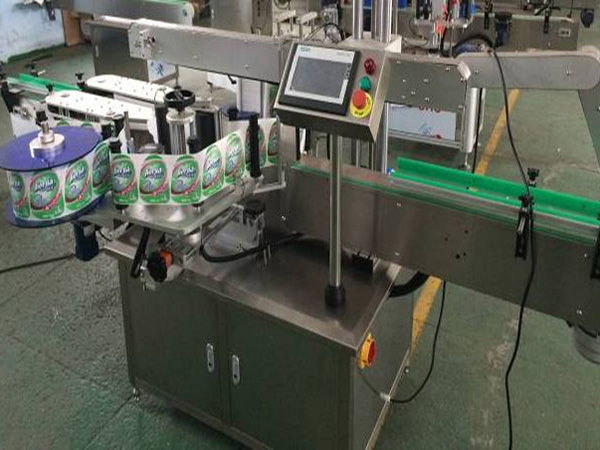

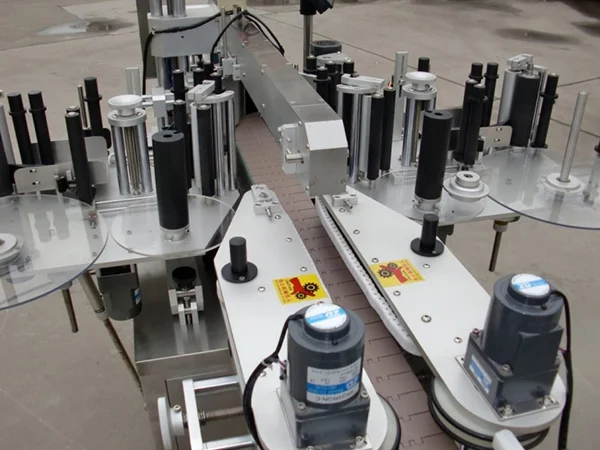

1. The label head is adjustable for different size of bottles

2. It fits for different sizes of labels

3. The height of label height is adjustable to fits different label position on the bottle

4. The angle of label head is adjustable

video play button
video play button
