4 Head Filling Machine

The 4 head filling machine usually means an automated liquid filling machine equipped with 4 filling nozzles. Four filling nozzles that work simultaneously to fill four containers at a time. It is used to dispense and fill liquids into containers with high precision and speed. There are many types of 4 head filling machines according to different filling principles, such as: 4-head piston filler, 4-head pump filler, 4-nozzle net weight filling machine, etc.

The output of a 4 head filling machine is approximately 1500-4000 bottles per hour (based on 500 ml bottles). Filling capacity varies considerably between different types of filling machines. Also the container size and the diameter of the bottle opening directly affect the filling machine's capacity.

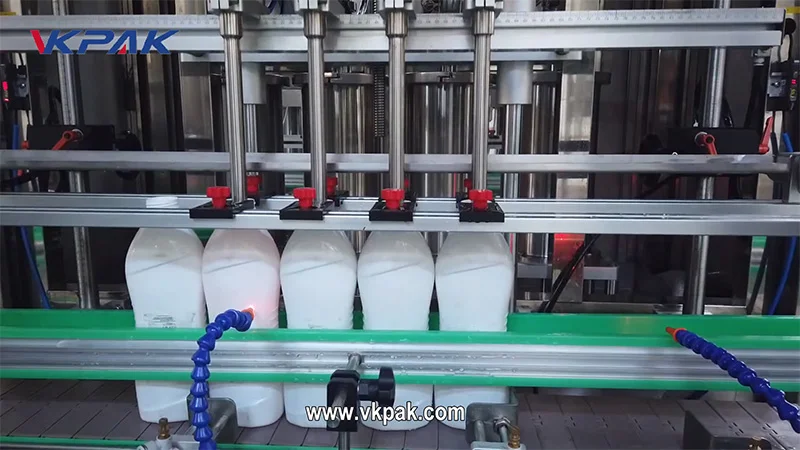

4 Head Lotion Filling Machine Line

4 Head Lotion Filling Machine Line
video play button
This video shows the working process of the 4 head lotion bottle filling line. (This video is a test video before delivery)

The filling line includes: a 4-head piston filling machine, a pick-and-place capping device and a 4-wheel capping machine, a fully automatic double-sided labelling machine.

Lotion Filling Machine

Lotion Filling Machine

Summary Lotion is a low-viscosity topical preparation intended for application to the skin. Most lotions are oil-in-water emulsions using a substance such as cetearyl alcohol to keep the emulsion together, but water-in-oil lotions are also formulated. The key components of a skin care lotion, cream or gel emulsion are...

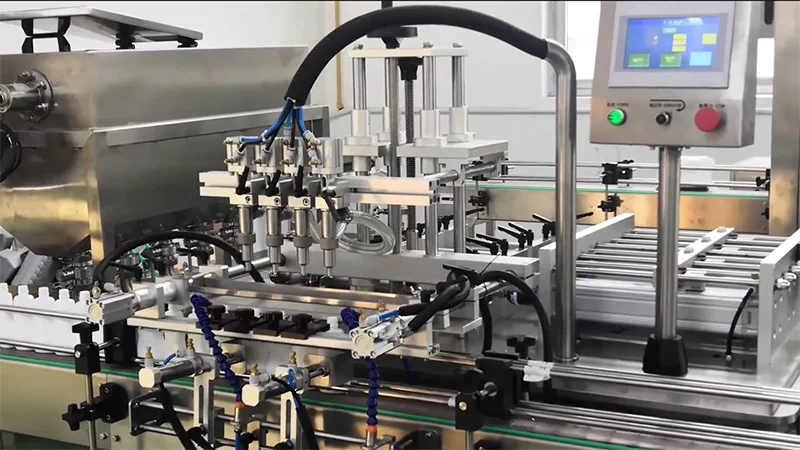

4 Head Economical Filling Machine

4 Head Economical Filling Machine
video play button
This video shows the working process of the 4 head economy filling machine.

This filling machine is based on our automatic piston filling machine design, the stainless steel frame outside the filling station has been removed and the piston cylinder has been changed from vertical to horizontal, the machine can be equipped with 2-4 filling nozzles and is suitable for customers with limited budget.

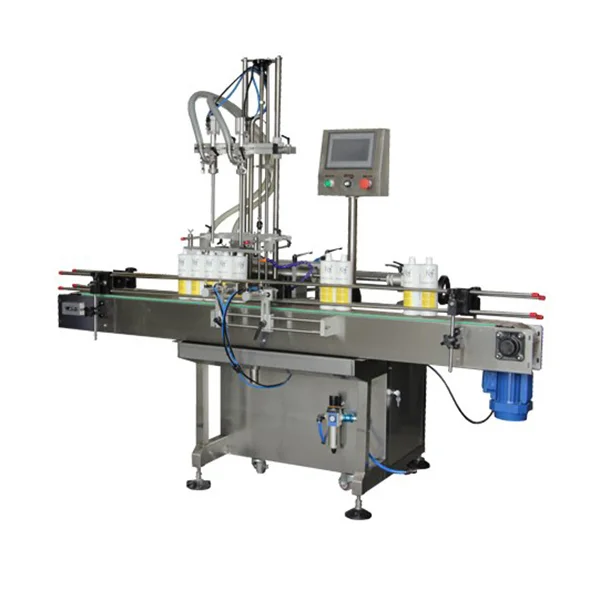

Automatic Economical Filling Machine

Automatic Economical Filling Machine

Introduction The VK-EPF automatic linear viscous piston filling machine is design on the base of the VK-PF, it is also an extremely flexible filler capable of filling accurately and rapidly thin and middle viscosity liquids. The VKPAK automatic linear piston filler is manufactured with a 304 stainless steel...

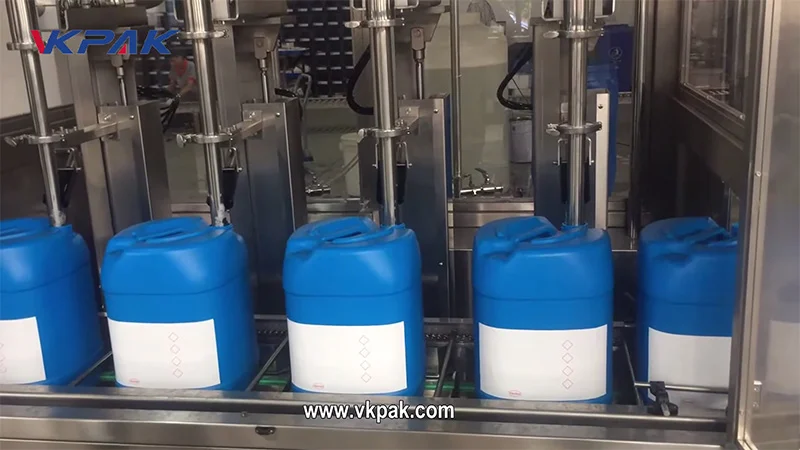

4 Nozzle Net Weight Liquid Filling Machine

4 Nozzle Net Weight Liquid Filling Machine
video play button
Net Weight Filling Machines from VKPAK, as the name suggests, work on the principle of filling each container to a pre-set weight. Using a scale for each container to be filled and a PLC with touchscreen interface to create set points for the fill, these machines are available in both automatic and semi-automatic construction. Net Weight fillers are ideal for highly accurate fills when a product is sold and labeled by weight.
Automatic Net Weight Filling Machine

Automatic Net Weight Filling Machine

Introduction Net weight filling machines use a weigh scale platform to monitor the weight of product as it is filling into a bottle or container. Net weight fillers are well suited for large container filling applications. This type machine is used for 5kg -30 kg liquid filling. Gravity...

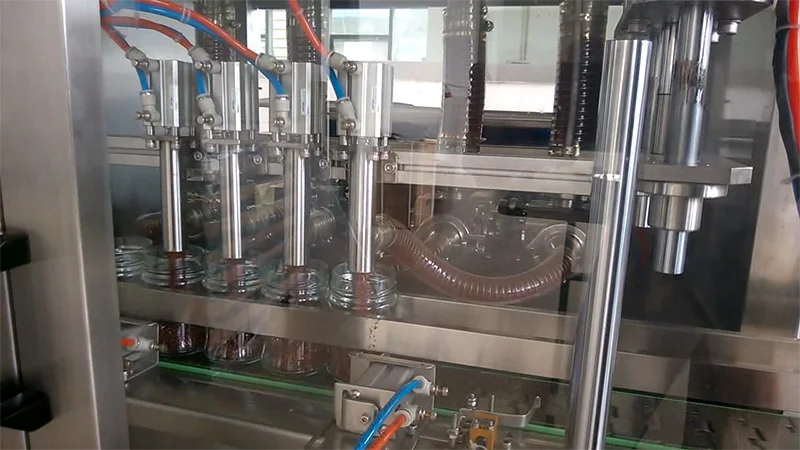

4 Nozzle Glass Jar Paste Filling Machine

4 Nozzle Glass Jar Paste Filling Machine
video play button
This 4 nozzle sauce filling machine is widely apply to all kinds of seasoning sauce, thick paste and viscosity liquid, pulp with granules, fruit jam filling. It’s an ideal dosing machine for bottle ketchup, chili sauce, concentrated soup, salad, pepper sauce, peanut butter, chocolate paste etc. This sauce filling machines are customized base on different products, filling volume and capacity required. Bottle unscrambler machine, capping machine, labeling machine, ink coding machine and packaging machines can be addedas an option and combine freely.
Paste Filling Machine

Paste Filling Machine: The Selection Guide

As the name implies the paste filling machine is a machine used to fill paste. Paste is a generic term for the majority of materials. This guide will introduce how to choose a paste filling machine. This guide includes the following parts: What is paste and what are its characteristics Common paste packaging containers The choice of paste filling machine...

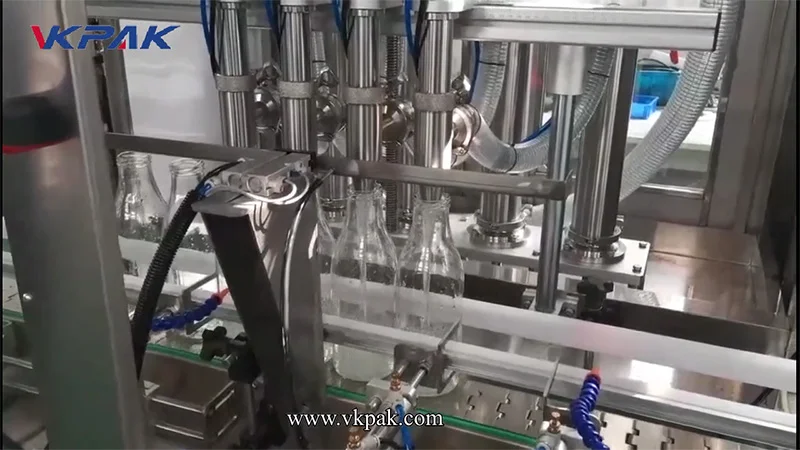

4 Head Sauce Bottle Filling Machine

4 Head Sauce Bottle Filling Machine
video play button
This is a test video of a sauce filling line that we shipped to a European customer in 2021. The line includes: rotary turntables; 6 head air wash bottle washer, UV sterilization channel, 4 head piston filling machine, automatic spindle capping machine, reverse bottle sterilization, round bottle positioning labeling machine and bottle receiving rotary turntables.
Sauce Filling Machine

Sauce Filling Machine

Summary In cooking, a sauce is a liquid, cream, or semi-solid food, served on or used in preparing other foods. Most sauces are not normally consumed by themselves; they add flavor, moisture, and visual appeal to a dish. Sauces need a liquid component. Sauces are an essential element in...

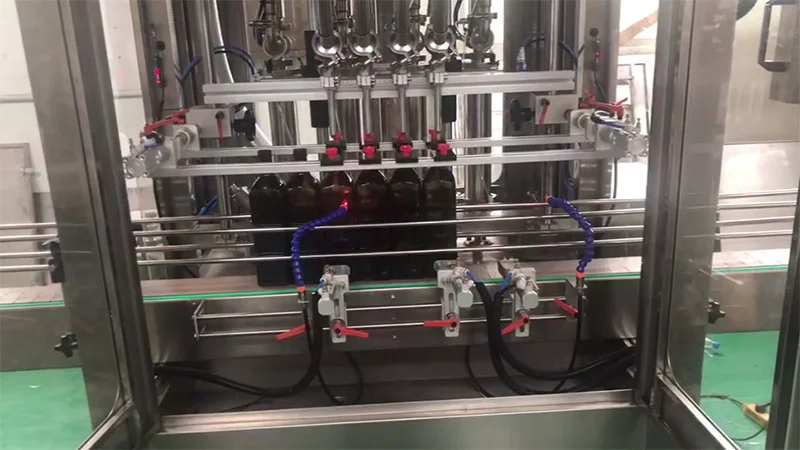

4 Head Olive Oil Filling Machine Line

4 Head Olive Oil Filling Machine Line
video play button
This video shows the working process of a 4 head olive oil filling line. This line was designed and manufactured by VKPAK for a customer in Peru. (This video is a test video before delivery)

The filling line includes: automatic 4 nozzle filling machine, automatic single head ROPP capping machine, electric shrink channel, automatic double sided sticker labelling machine.

Olive Oil Filling Machine

Olive Oil Filling Machine

Summary Olive oil is a liquid fat obtained from olives, a traditional tree crop of the Mediterranean Basin, produced by pressing whole olives and extracting the oil. It is commonly used in cooking, for frying foods or as a salad dressing. It is also used in cosmetics, pharmaceuticals, and...

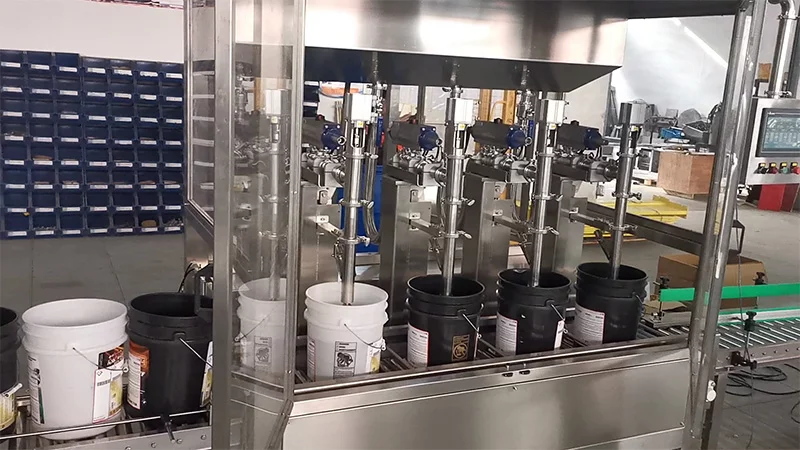

4 Head Lubricating Oil Drum Weighing Filling Line

4 Head Lubricating Oil Drum Weighing Filling Line
video play button
This video shows the working process of a fully automatic 4 head lubricant bucket filling line. This line was designed and manufactured by VKPAK for a customer in the USA. (This video is a test video before delivery)

The filling line includes: automatic drum feeding device, positioning device, 4 head net weight liquid filling machine, automatic feeding bucket cap and snap capping machine, fully automatic palletising.

Lubricant Filling Machine

Lubricant Filling Machine

Summary A lubricant is a substance that helps to reduce friction between surfaces in mutual contact, which ultimately reduces the heat generated when the surfaces move. It may also have the function of transmitting forces, transporting foreign particles, or heating or cooling the surfaces. The property of reducing friction...

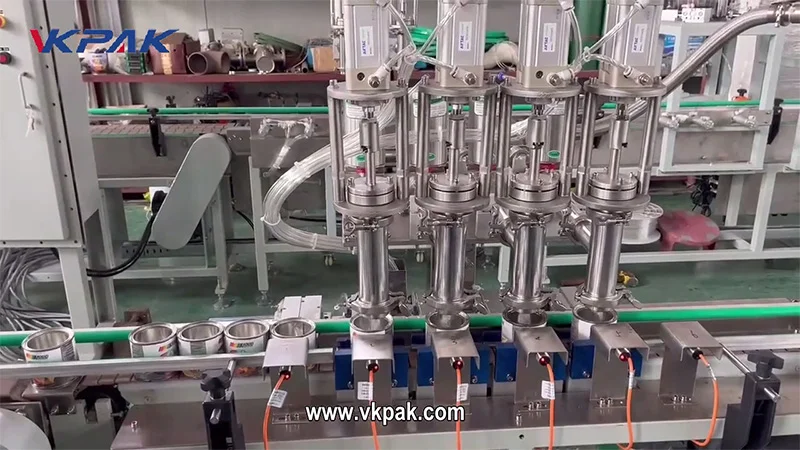

4 Nozzle Paint Filling Machine

4 Nozzle Paint Filling Machine
video play button
A paint filling machine is a machine that is used to fill containers with paint or other liquid coatings. These machines are commonly used in manufacturing and production environments to package and distribute paints, coatings, and other similar products. The 4 head paint filling machine is automated and is designed to dispense precise amounts of paint or coating into containers at high speeds. The machine may also include features such as a capping station, labeling station, and conveyor system to complete the filling and packaging process. Some paint filling machines are designed to handle a wide range of container sizes and types, while others may be specialized for specific containers. These machines are used in a variety of industries, including automotive, aerospace, construction, and more.
Paint Filling Machine

Paint Filling Machine

Summary Paint is any pigmented liquid, liquefiable, or solid mastic composition that, after application to a substrate in a thin layer, converts to a solid film. It is most commonly used to protect, color, or provide texture to objects. Paint can be made or purchased in many colors—and in...

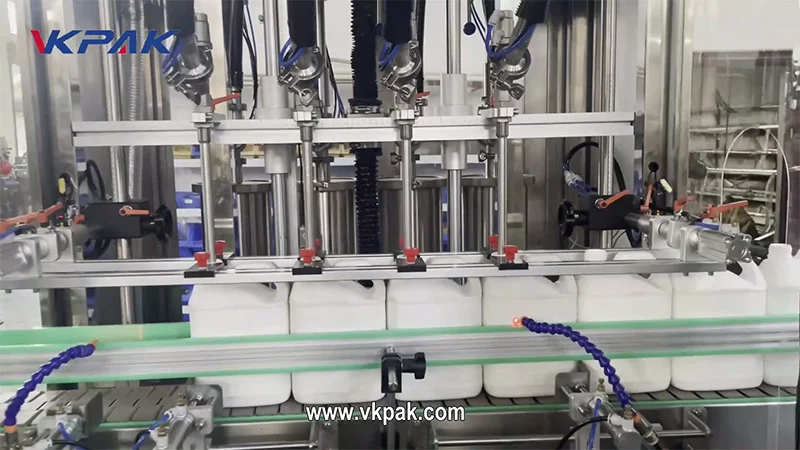

4 Head Piston HDPE Bottle Filling Machine Line

4 Head Piston HDPE Bottle Filling Machine Line
video play button
This video is our company’s pre-delivery test video for Australian customers, including automatic piston filling machine, spindle capping machine and double-sided labeling machine.

The 1-gallon HDPE bottle tested this time, the entire bottling line runs smoothly, and is judged by VKPAK engineers as: qualified and can be delivered to customers

Automatic Piston Filling Machine

Automatic Piston Filling Machine

Introduction Piston fillers measure and dispense free flowing products - such as thin and/or moderately dense liquids - onto a container. Each machine is equipped with one or more volumetric pistons. Each fill/release cycle consists of an intake stroke, where the product is withdrawn from the container or...

4 Nozzle Twin Neck Bottle Filling Machine Line

4 Nozzle Twin Neck Bottle Filling Machine Line
video play button
This video is our company’s pre-delivery test video for Australian customers, including automatic piston filling machine, spindle capping machine and double-sided labeling machine, the customer is a twin-neck bottle packaging pesticide.

The 4 head filling machine is popular with packagers and its capacity can solve many small businesses and processing plants with low output requirements; usually a 4 head filling line can save at least 6-10 workers and is a good choice for some areas where labour costs are very high.

The above shows some of the 4 head filling machines designed and manufactured by VKPAK. If you are looking for a 4 nozzle filling machine, please contact us and our engineers will recommend the most suitable packaging machine for you based on your needs!
