VK-UTS-007E Table Top Manual Tube Sealing Machine

Introduction

This machine utilizes ultrasonic technology to tail seal plastic tubes and composite tubes with good stability and high efficiency, and the power components are of well-known brands.

Sealing method: Ultrasonic sealing

Applicable tube materials: plastic tubes, laminated tubes

Speed: 5-12 pcs/min

This machine is suitable for sealing soft tube like toothpaste, sun cream, hand cream, shampoo, etc. It is with cutting function, which can cut off the needless tube after sealing. The machine can be equipped with date coder, which can help to print batch or production date on the tube. Save labor cost and improve work efficiency.

DescriptionContactYou May Like

Tube sealing machine is widely used in sealing the aluminum plastic tube, laminated tube, multilayer tube etc. It's suitable for toothpaste, cosmetic, medicines, food, and industrial plastic tube tail welding.

Main Features

1. Economic: the machine reduces the redundant functions, only retains the most core sealing and trimming functions, striving to achieve the highest efficiency with the lowest price.

2. End sealing and edge cutting: ultrasonic device on the left and sealing and trimming device on the right. The tool head can be customized according to customer requirements.

3. Stability: the power source of this machine is pneumatic. It works smoothly and is not easy to be damaged.

Working Video

Working principle

The high frequency vibration acts on the two surfaces of the plastic, and the heat generated by the vibration causes these two surfaces to be welded together tightly, the strength of welding area is same as other area of the plastic. No need adhesive or heating, Replace the traditional hot pressing or bonding process, Low cost and no pollution and no damage to plastic tube.

Parameter

Model	VK-UTS-007E
Power supply	AC220V/50Hz or 110v/60Hz
Ultrasonic power	1800W
Frequency	20KHZ
Capacity	5-12 pcs/min
Tube length	10-250mm
Tube diameter	5-50 mm
H.S Code	8515800090
N.W/GW	98KGS
Pack size	850×600×650mm(0.54CBM)

Images

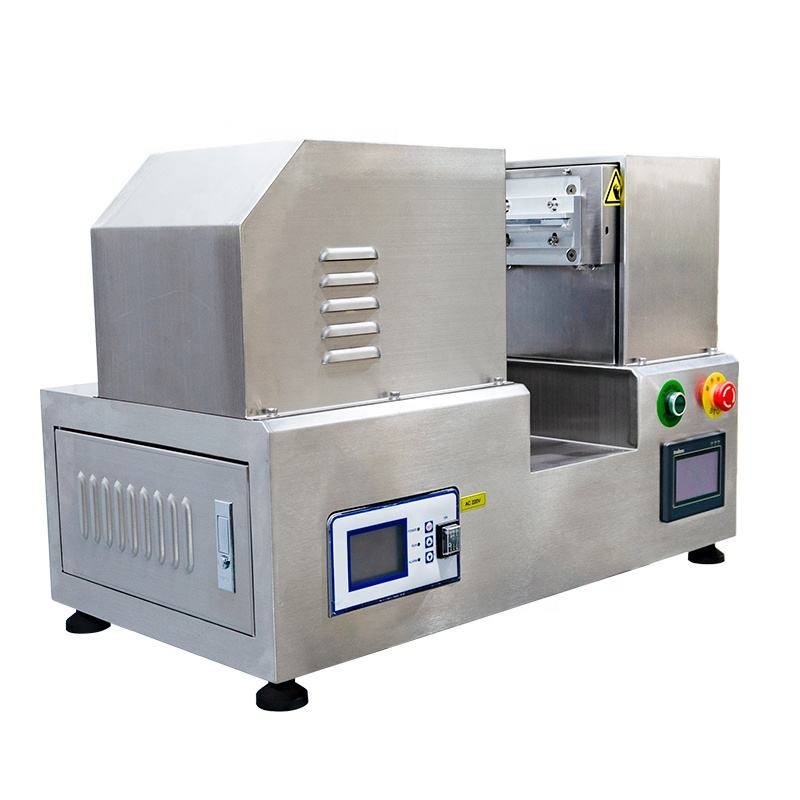

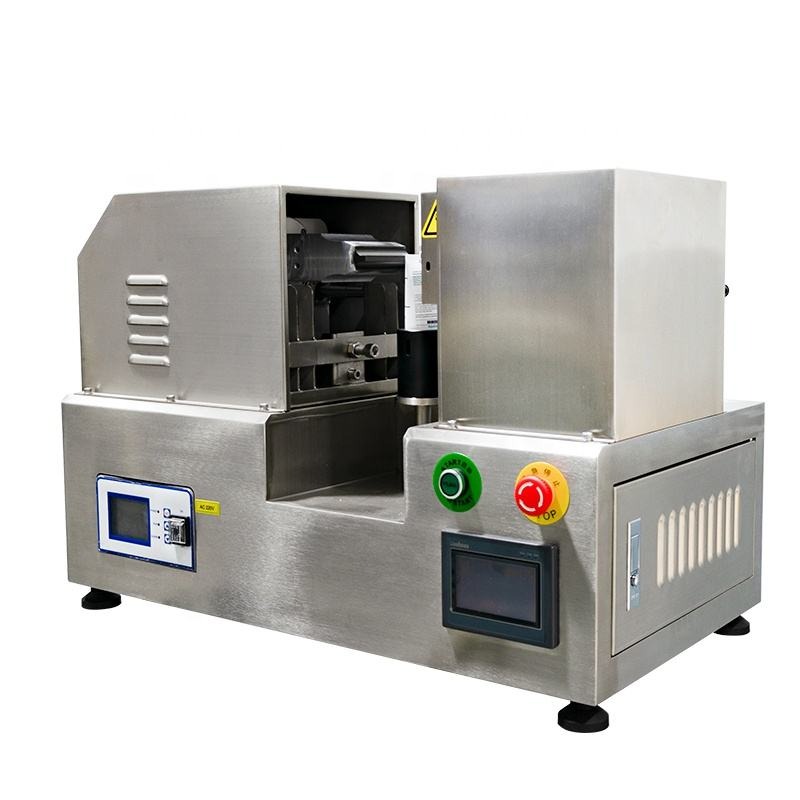

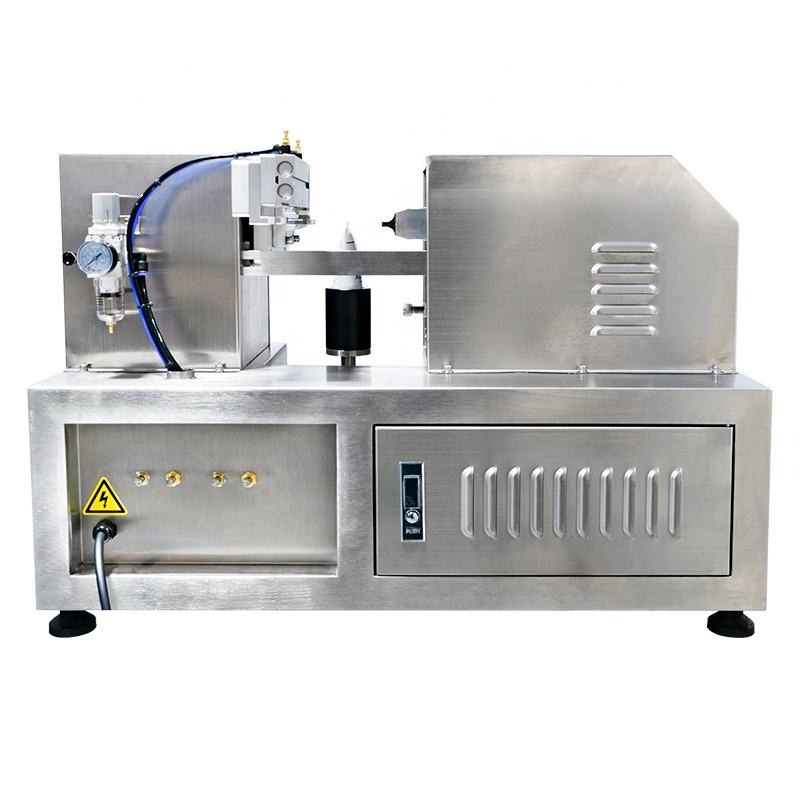

VK-UTS-007E Table Top Manual Tube Sealing Machine

With simple control panel, each function can be controlled easily according to this panel. The imported chip and high quality circuit board makes the machine work stably.

With sealing and cutting function, this machine can be customized for larger sealing diameter, and the cutting blade is made of imported material, ensure the edge will be cut neatly, improve production quality. Letter stamps can be installed for embossing production number.

Adjustable product holder, it can be adjusted according to tube height, suitable for different sizes of soft tube.

High quality air cylinder, make sure the machine work stably and can seal soft tube better.

With overload protection, prevent the machine from damage due to the overload. it ensures the safety operation.

Application

Table top manual tube sealing machine is suitable for toothpaste, cosmetics, medicines, food industrial supply, etc. With horizontal stainless steel structure, environment friendly and sanitation. With independent platform, vertical / horizontal adjustable worktable, worktable, easy operation stable performance, high efficiency.
VK-UTS-007E Table Top Manual Tube Sealing Machine Application
