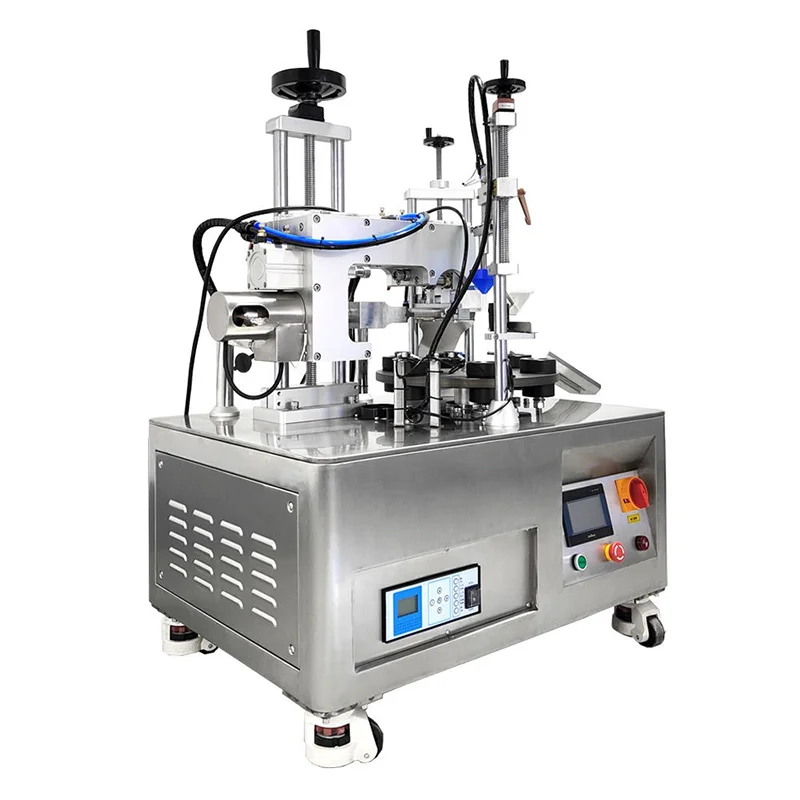

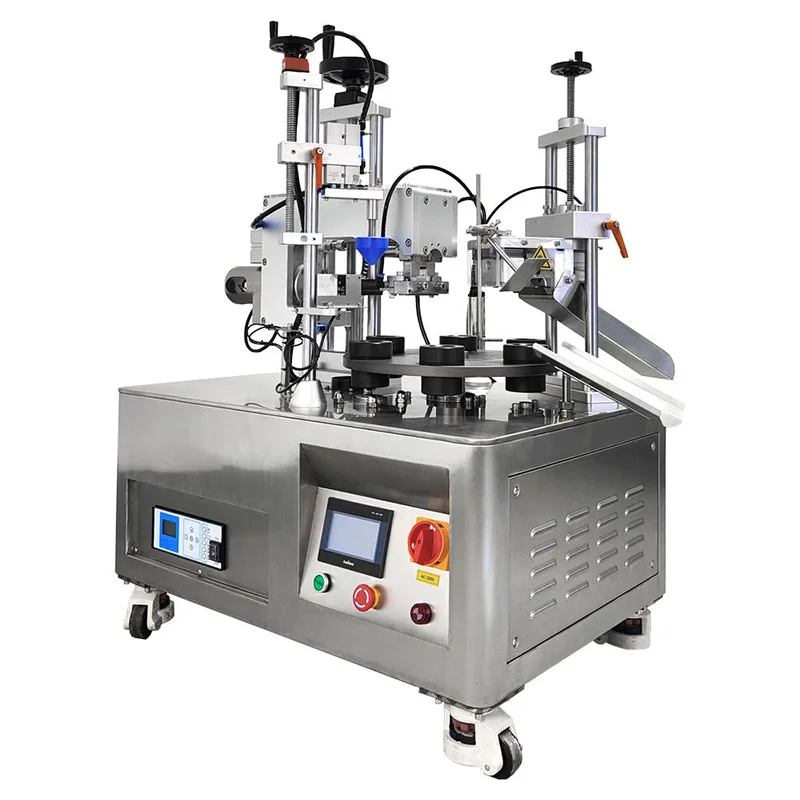

VK-UTS-006D Rotary Ultrasonic Tube Sealing Machine

Introduction

VK-UTS-006D rotary ultrasonic tube sealing machine utilizes ultrasonic energy to Seal plastic and laminate tubes at up to 25 tubes per minute. Tubes are sealed with date/lot embossing, and trimmed off to create professional looking tubes; ideal for low volume production jobs, lab use and customer sales demo tubes.

Sealing method: Ultrasonic sealing

Applicable tube materials: plastic tubes, laminated tubes

Speed: 15-25 pcs/min

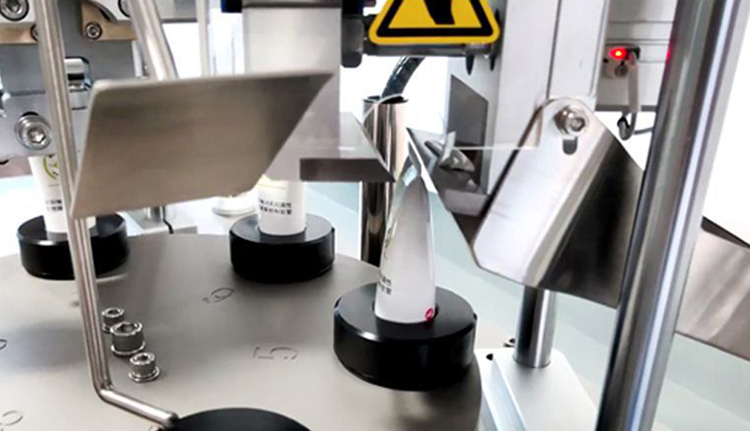

This machine is suitable for sealing soft tube like toothpaste, sun cream, hand cream, shampoo, etc. It is with cutting function, which can cut off the needless tube after sealing. The machine can be equipped with date coder, which can help to print batch or production date on the tube. Save labor cost and improve work efficiency.

View Video
DescriptionDetailsContactYou May Like
This is a ultrasonic tube sealing machine. It adopts ultrasonic waves to seal the plastic, aluminum-plastic, and soft compound tubes. It is available to stamp an 8-digit date on the seal with a set of number dies. It is widely used in the daily chemical, food, and cosmetics industries.

Main Features

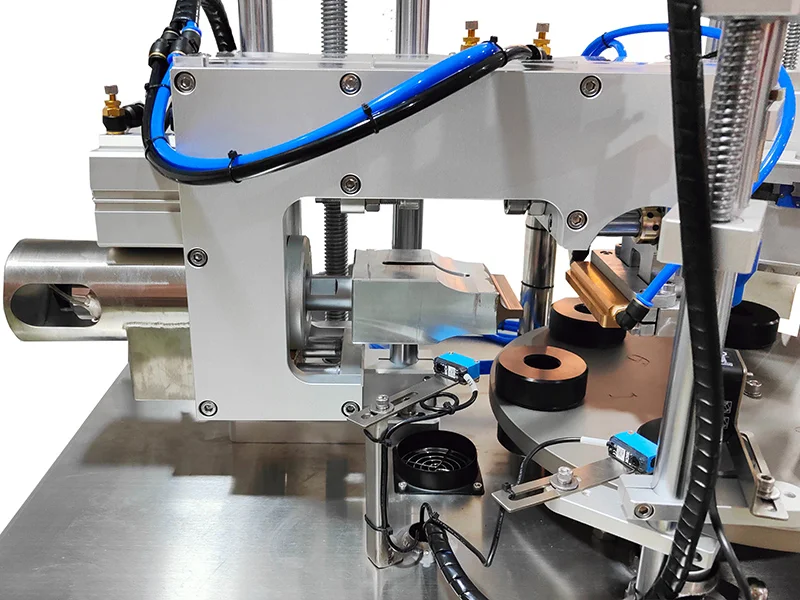

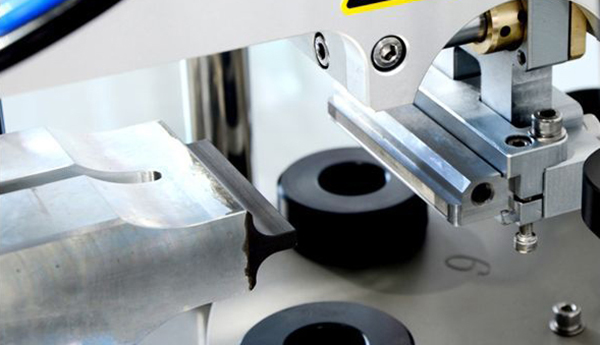

1. Adopts ultrasonic sealing technology, no need warm up time, more stable and neat sealing, no distortion and low reject rate less than 1%.

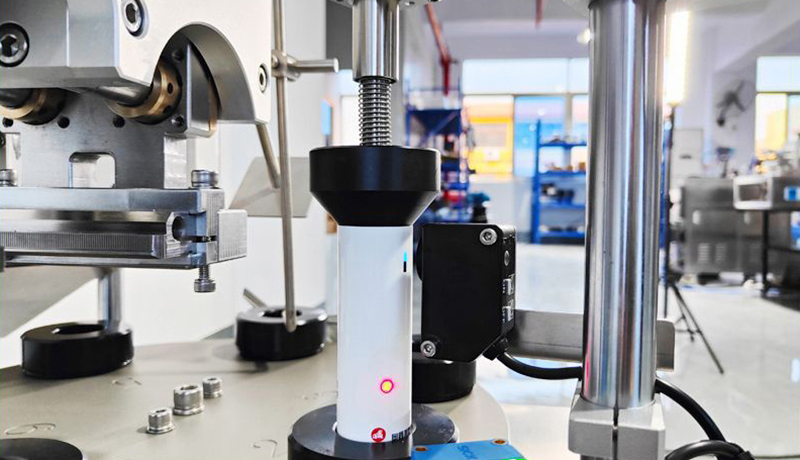

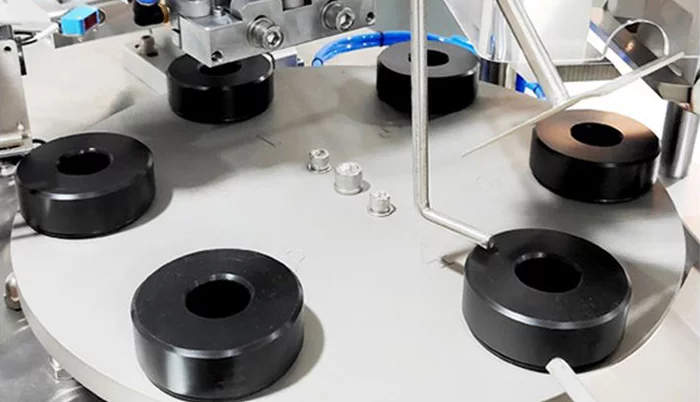

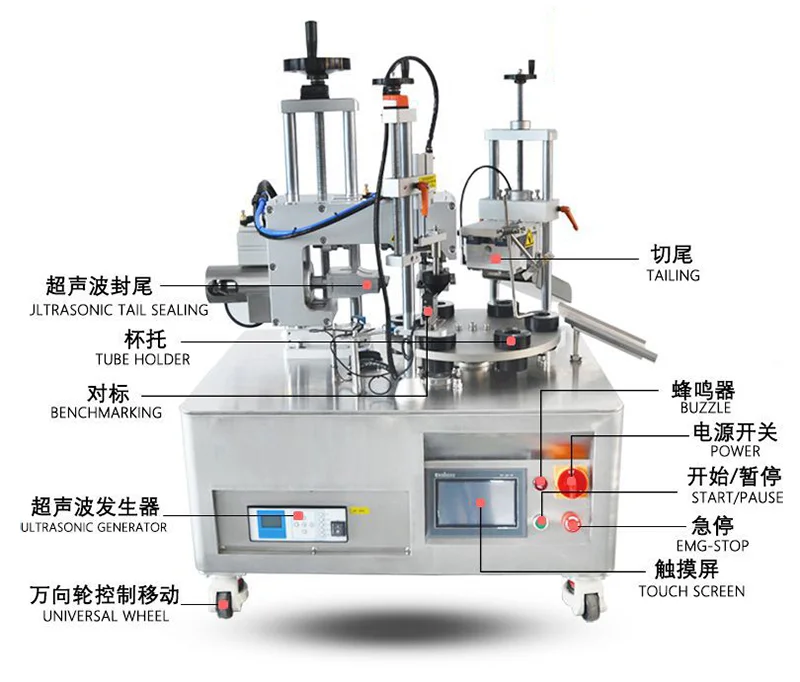

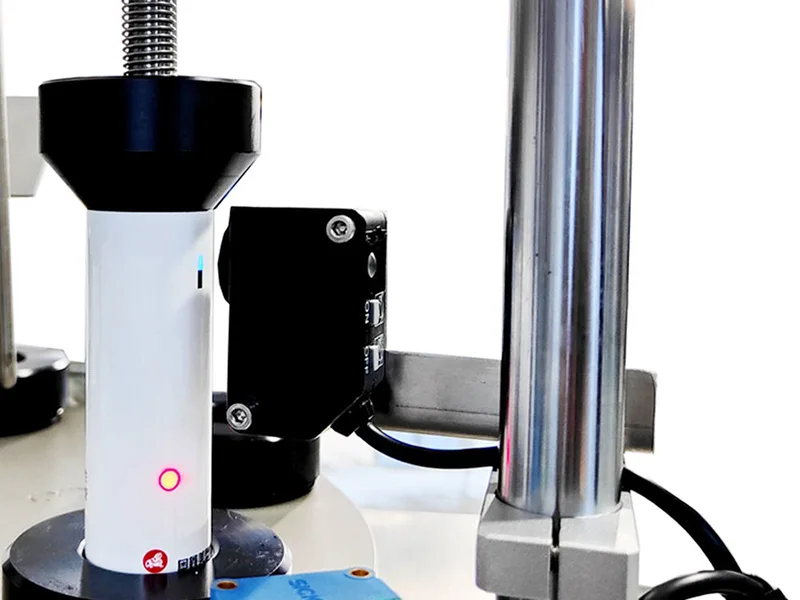

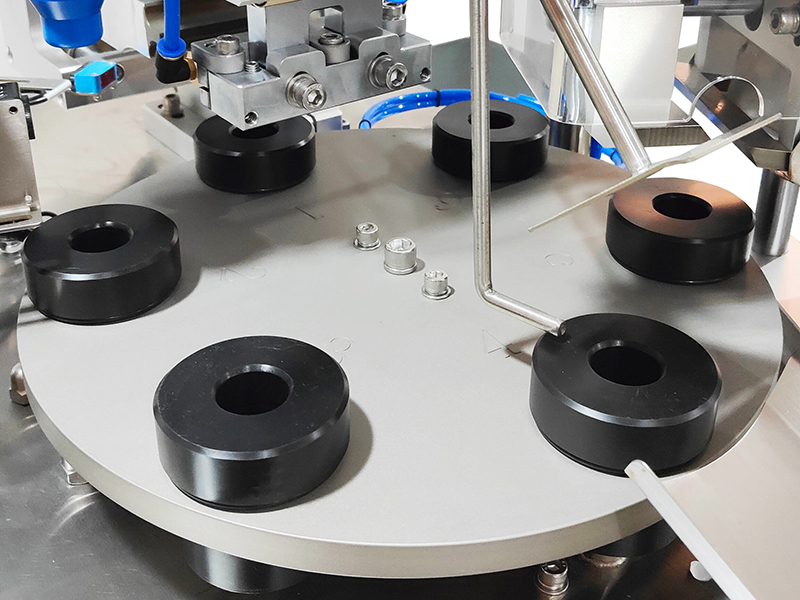

2. Manually tube feeding, auto tube orientation, sealing with coding, end trimming, tube out feeding.

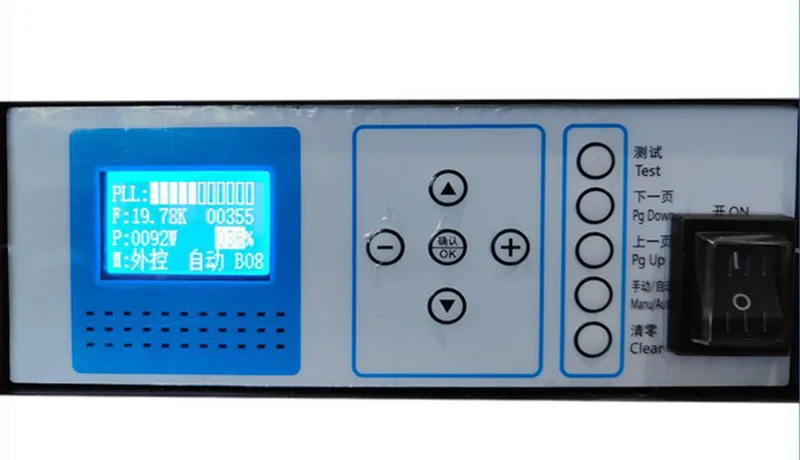

3. Independent R&D for digital ultrasonic automatic tracking electrical control box, no need manual adjust the frequency, with power auto compensation function, avoiding the reduction of power after long time use. Could freely adjust the power based on tube material and size, stable and minimum the fault rate, extend the life span than the normal electrical box.

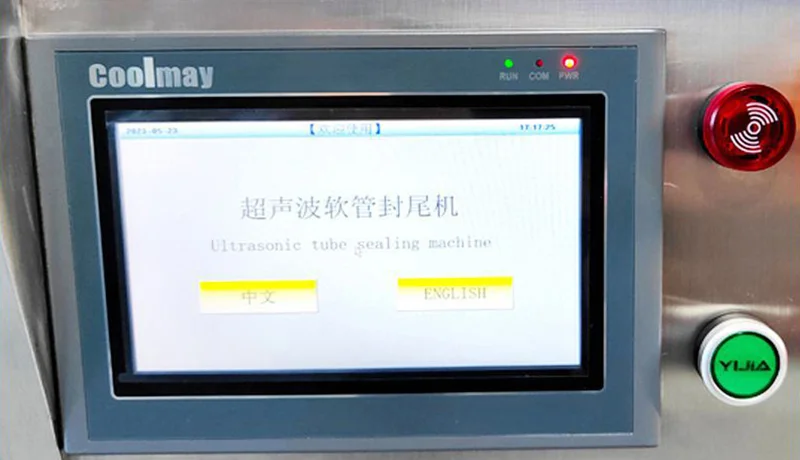

4. PLC with touch screen control system with arlarm system, could directly view the alarm information on the touch screen, can locate the problem and solve it immediately.

5. No tube no sealing function, reducing the machine and the mould loss.

6. Made of 304 stainless steel, acid and alkali resistance, corrosion resistance.

Working Video

video play button
video play button
Tube Sealing

Tube Sealing: The Ultimate Guide

Toothpaste, ointment, glue, grease, creams, etc. commonly found in everyday life are packaged in tubes (here we are discussing tubes as just one type of packaging container, also called squeeze tube), and this guide will discuss all aspects of tube sealing, including types of tubes, types of tube seals, and principles of tube sealing. A tube, squeeze tube, or...

Parameter

ModelVK-UTS-006D
Frequency20kHz
Power2600W
Voltage220V 50/60HZ
Hose Height50-250mm
Sealing diameter10-50mm
Capacity15-25pcs/min
Air Pressure0.6Mpa

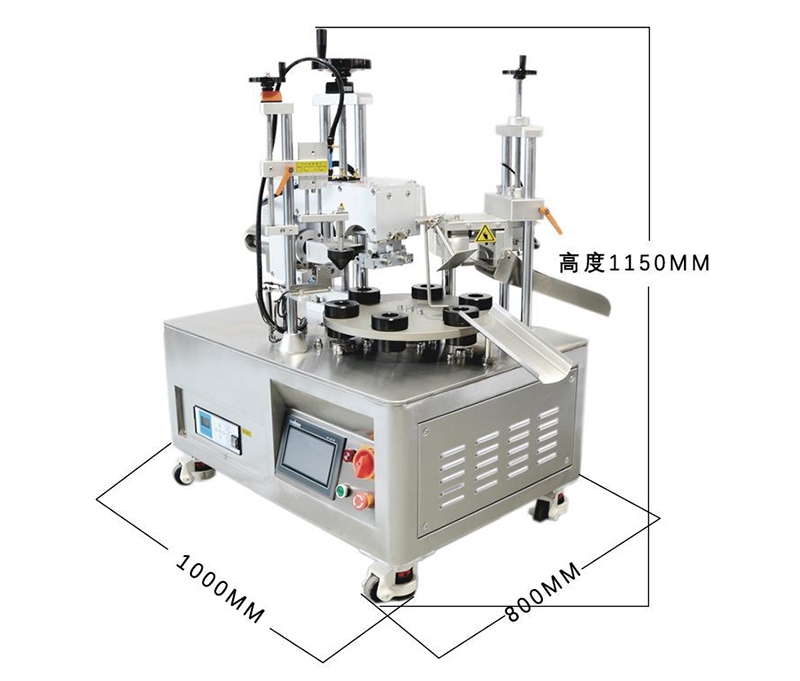

Dimension800MM*1000MM*1150MM
Air Consumption0.35m3/min
N.W205KG

Images

Application

Tube sealing machine is mainly applied to products that require the packaging of plastic tubes, aluminum-plastic tubes, PE tubes and laminated tubes. For example, toothpaste and shampoo in the daily chemical industry; face wash, hand cream and hair care products in the cosmetic industry; sunscreen, eye cream and BB cream in the color cosmetic industry. Due to the low packaging cost of the tube and the advantages of being easy to carry, the tube type is more and more widely used in the cosmetics, pharmaceutical, food and other industries.
