VK-UTS-003 Semi Automatic Ultrasonic Tube Sealer For Strip Monodose

Introduction

VK-UTS-003 is a semi-automatic ultrasonic sealer machine specially designed for special tubes, such as strip monodose tubes, special-shaped tubes etc.; it is an economical solution for row pipe sealing. A set of 3 molds is used, with cyclic operations: manual tube loading, ultrasonic sealing, and tail cutting.

Sealing method: Ultrasonic sealing

Applicable tube materials: plastic tubes, laminated tubes

Speed: 8-18 Pcs/min

DescriptionContactYou May Like

VK-UTS-003 Ultrasonic plastic tube sealer machine is applicable to toothpaste, cosmetic, pharmaceutical, food, industry product and other soft tube sealing. Extensional organization of the machine is made of aluminium alloy and stainless steel.

This machine use for special-shaped tube sealing, date coding and trimming, it also can sealing wavy, straight and curve etc tube.

Working Video

Parameter

Model	VK-UTS-003
Frequency	20kHz
Power	2600W
Power Supply	AC220V/110V 1PH 50/60HZ
Sealing Dia.	20-50mm

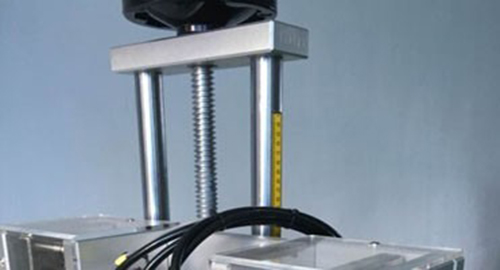

Tube Height	50-250mm
Capacity	8-18pcs/min
Air Pressure	0.5-0.6MPa
Dimension	L560W537880mm
N.W	105kgs

Main Features

1. Adopts ultrasonic sealing technology, no need warm up time, more stable and neat sealing, no distortion and low reject rate less than 1%.

2. Manually feed the tube, machine could automatically start sealing and end trimming.

3. Independent R &D for digital ultrasonic automatic tracking electrical control box, no need manual adjust the frequency, with power auto compensation function, avoiding the reduction of power after long time use. Could freely adjust the power based on tube material and size, stable and minimum the fault rate, extend the life span than the normal electrical box.

4. PLC with touch screen control system, providing friendly operation experience.

5. Made of 304 stainless Steel, acid and alkali resistance, corrosion resistance.

6. Suitable for strip tube, normal tube, curved tube or customer-made shape tube sealing and trimming.

7. No tube, no sealing and trimming function, reducing the machine and mould loss.

Images

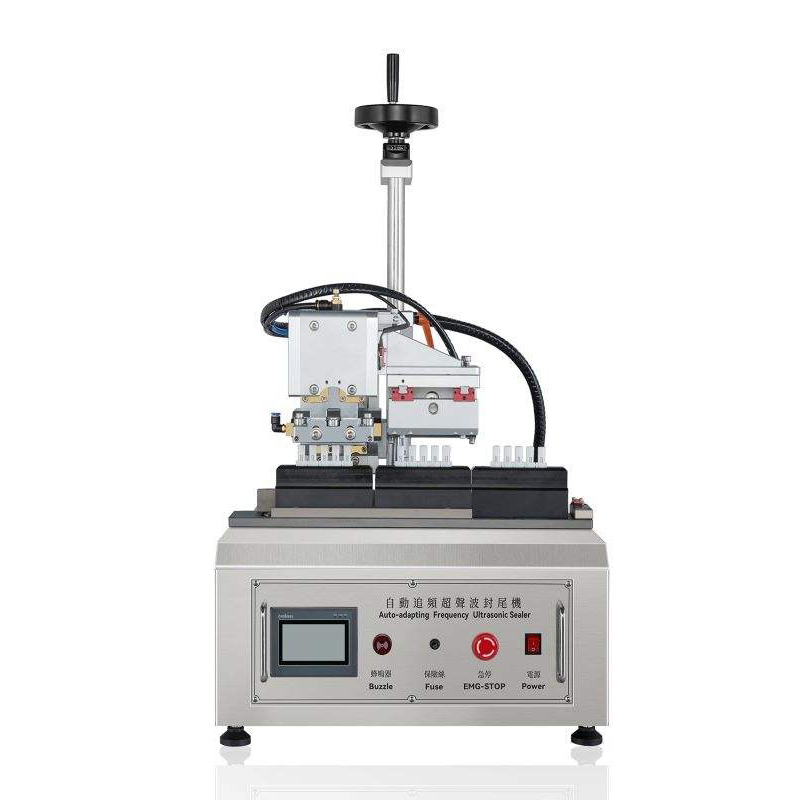

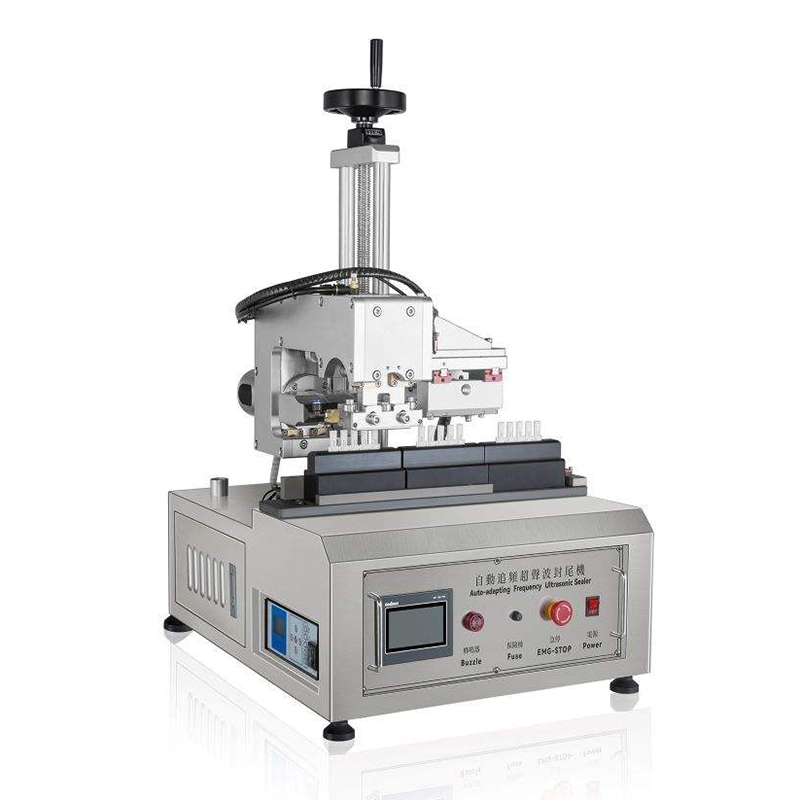

VK-TS-003 Semi Automatic Ultrasonic Tube Sealer For Strip Monodose

With touch screen panel,it’s easy to set or adjust working parameters. The language of panel can be customized as needed.

With the way of ultrasonic sealing,it can seal tubes firmly, ensuring production quality. It can be equipped with letter fonts, helping to print date or batch on tubes.

With high-quality blades, it can trim tubes after sealing, ensuring good product appearance. With high-quality blades, it can trim tubes after sealing, ensuring good product appearance.

The mold is designed for fixing single-dose strips during sealing, making production smoother. It can be customized according to your products.

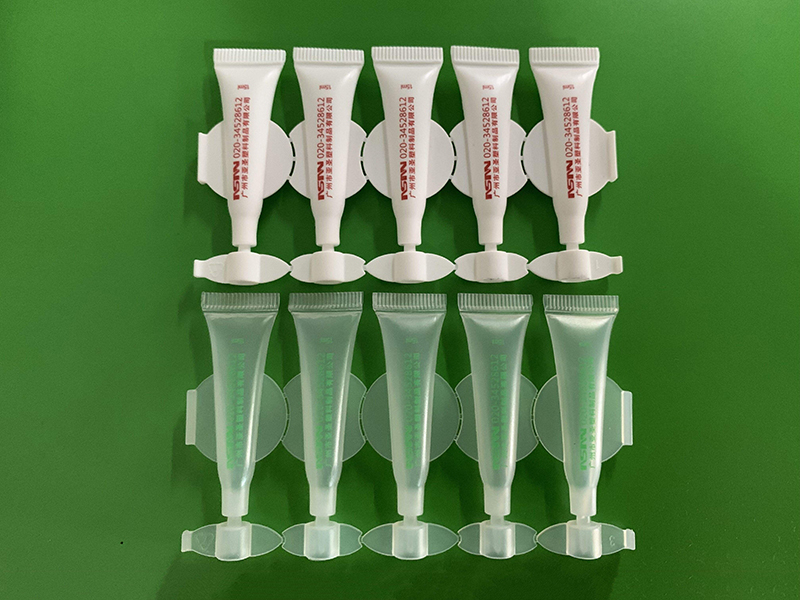

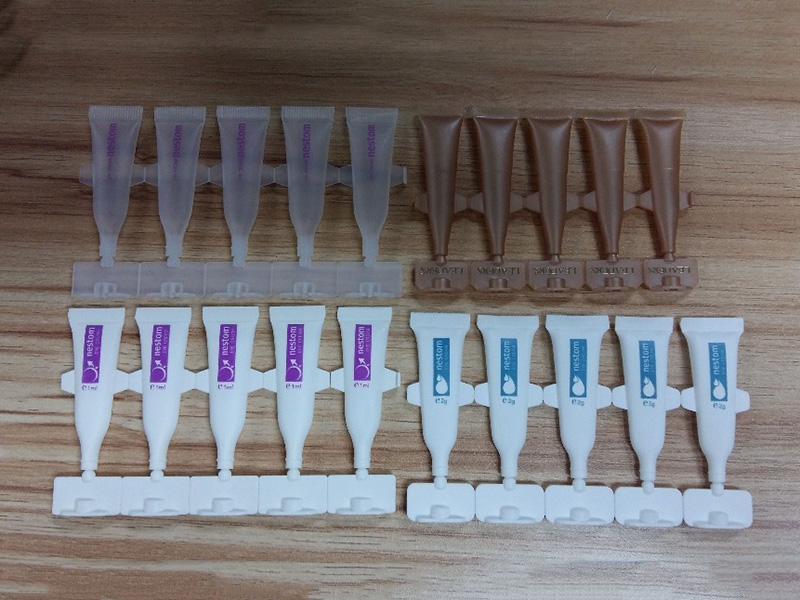

Application

Detail Images

Mold

Adopt Aluminum mold, 3 molds for one sets, can be customized.

PLC Touch Screen

Easy to operate, control, higher grade of automatic.

Mold Cooling Fun

Every machine will be equipped one cooling fun to cool down the temperature of the molds, to guarantee the machine can work for 24 hours one day, 7 days one week.
